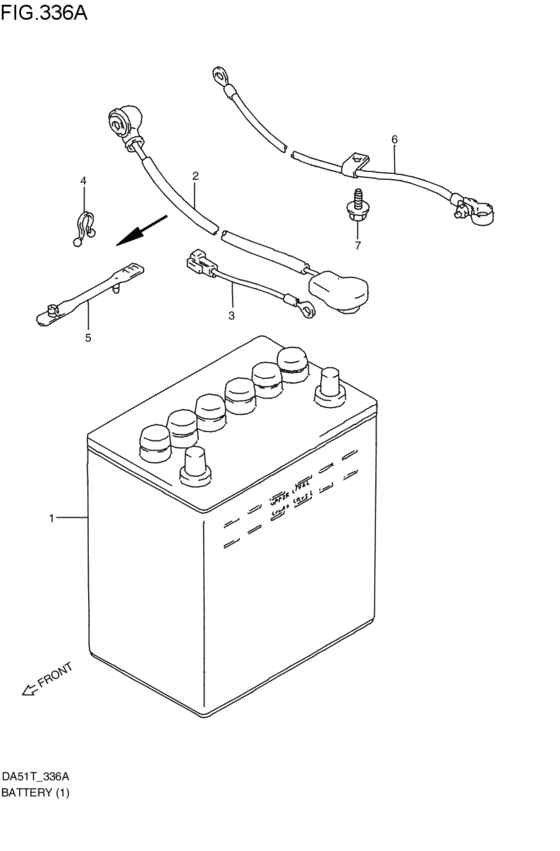

battery (C; 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990 - 1991
- Sales region
- Japan
- supercharge
- CARB
- drive
- 2WD
- transmission
- 4MT
- grade
- TC
- body
- T
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-70D00-000
バッテリ,38B20R,12V28AH/5HR,DELCO
DELCO,カンレイチシヨウ; C; 1990-01-01~1991-08-01 |
33610-70D00-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
DELCO,カンレイチシヨウ; C; 1990-01-01~1991-08-01 |
33610-750V1-000 |
— | ||
|
1
|
1
33610-80020-000
バッテリ,28B19RーMF,12V24AH/5HR,YB
YB,カンレイチノゾク; C; 1990-01-01~1991-08-01 |
33610-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-750V1-000
BATTERY ASSY,38B19R (Cannot supply)
YB,カンレイチノゾク; C; 1990-01-01~1991-08-01 |
33610-750V1-000 |
— | ||
|
2
|
2
33810-70D00-000
ケーブル,スターティングモータ
C:(2WD:TA,KA,TC,KC); 1990-01-01~1991-08-01 |
33810-70D00-000 |
— | ||
| replacement | |||||
|
2
|
2
33800-50B00-000 CABLE,STARTING MOTORC:(2WD:TA,KA,TC,KC); 1990-01-01~1991-08-01 |
33800-50B00-000 |
US $45.63 |
||
|
3
|
3
36740-70D00-000
FUSIBLE LINK ASSY
C; 1990-01-01~1991-08-01 |
36740-70D00-000 |
— | ||
|
4
|
4
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) C; 1990-01-01~1991-08-01 |
09408-00012-000 |
from US $3.37 |
||
|
5
|
5
09407-05403-000 CLAMP,L:88C; 1990-01-01~1991-08-01 |
09407-05403-000 |
from US $0.91 |
||
|
6
|
6
33850-74D00-000
ケーブル,バッテリグランド
C:(2WD:(KA,KC,TA,TC,LA),4WD); 1990-01-01~1991-08-01 |
33850-74D00-000 |
— | ||
| replacement | |||||
|
6
|
6
33850-50F50-000 CABLE,BATTERY GNDC:(2WD:(KA,KC,TA,TC,LA),4WD); 1990-01-01~1991-08-01 |
33850-50F50-000 |
US $33.49 |
||
|
7
|
7
09115-06001-000
Bolt, lh
C; 1990-01-01~1991-08-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16)C; 1990-01-01~1991-08-01 |
09115-06005-000 |
US $1.28 |
||
