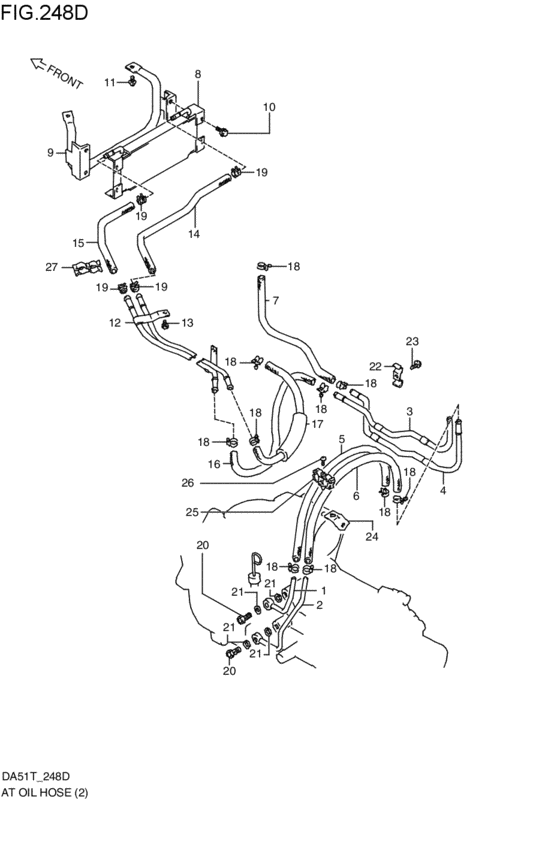

at - oil hose (AT:TURBO; 1990-01-01~1991-08-01) Diagram Suzuki CARRY/EVERY
- Year
- 1990 - 1991
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- 3AT
- grade
- EX
- body
- E
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24891-85501-000
パイプ,オイルインレット,NO.1
AT:TURBO; 1990-01-01~1991-08-01 |
24891-85501-000 |
— | ||
|
2
|
2
24892-85501-000
パイプ,オイルアウトレット,NO.1
AT:TURBO; 1990-01-01~1991-08-01 |
24892-85501-000 |
— | ||
|
3
|
3
24893-68C00-000
パイプ,オイルインレット,NO.2
AT:TURBO; 1990-01-01~1991-08-01 |
24893-68C00-000 |
— | ||
|
4
|
4
24894-68C00-000
パイプ,オイルアウトレット,NO.2
AT:TURBO; 1990-01-01~1991-08-01 |
24894-68C00-000 |
— | ||
|
5
|
5
24895-85501-000
ホース,オイルインレット,NO.1
AT:TURBO; 1990-01-01~1991-08-01 |
24895-85501-000 |
— | ||
| replacement | |||||
|
5
|
5
24891-56X51-000 HOSE SETAT:TURBO; 1990-01-01~1991-08-01 |
24891-56X51-000 |
US $57.60 |
||
|
6
|
6
24896-85501-000
ホース,オイルアウトレット,NO.1
AT:TURBO; 1990-01-01~1991-08-01 |
24896-85501-000 |
— | ||
| replacement | |||||
|
6
|
6
24891-56X51-000 HOSE SETAT:TURBO; 1990-01-01~1991-08-01 |
24891-56X51-000 |
US $57.60 |
||
|
7
|
7
24898-85580-000
ホース,オイルアウトレット,NO.2
AT:TURBO; 1990-01-01~1991-08-01 |
24898-85580-000 |
— | ||
|
8
|
8
24921-78D10-000
クーラ,オートマチックトランスミッションオイル
DENSO; AT:TURBO; 1990-01-01~1991-08-01 |
24921-78D10-000 |
— | ||
|
9
|
9
24922-78D10-000
パイプ,オイルクーラガード
AT:TURBO; 1990-01-01~1991-08-01 |
24922-78D10-000 |
— | ||
|
10
|
10
01517-08126-000
Bolt, front
AT:TURBO; 1990-01-01~1991-08-01 |
01517-08126-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0812B-000 BoltPlug, drain AT:TURBO; 1990-01-01~1991-08-01 |
01550-0812B-000 |
from US $0.96 |
||
|
10
|
10
01550-0812A-000 BoltAT:TURBO; 1990-01-01~1991-08-01 |
01550-0812A-000 |
from US $0.91 |
||
|
11
|
11
01184-08206-000
Bolt
AT:TURBO; 1990-01-01~1991-08-01 |
01184-08206-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-0820A-000 BoltAT:TURBO; 1990-01-01~1991-08-01 |
01580-0820A-000 |
from US $0.91 |
||
|
12
|
12
24925-78D10-000
パイプ,オイルクーラ
AT:TURBO; 1990-01-01~1991-08-01 |
24925-78D10-000 |
— | ||
|
13
|
13
09128-08005-000 BOLT(8X11)AT:TURBO; 1990-01-01~1991-08-01 |
09128-08005-000 |
US $9.20 |
||
|
14
|
14
24923-78D10-000
ホース,オイル,インレット
AT:TURBO; 1990-01-01~1991-08-01 |
24923-78D10-000 |
— | ||
|
15
|
15
24924-78D10-000
ホース,オイル,アウトレット
AT:TURBO; 1990-01-01~1991-08-01 |
24924-78D10-000 |
— | ||
|
16
|
16
24926-78D10-000
ホース,オイル,インレット
AT:TURBO; 1990-01-01~1991-08-01 |
24926-78D10-000 |
— | ||
| replacement | |||||
|
16
|
16
24891-56X51-000 HOSE SETAT:TURBO; 1990-01-01~1991-08-01 |
24891-56X51-000 |
US $57.60 |
||
|
17
|
17
24928-78D10-000
ホース,オイル,アウトレット
AT:TURBO; 1990-01-01~1991-08-01 |
24928-78D10-000 |
— | ||
| replacement | |||||
|
17
|
17
24891-56X51-000 HOSE SETAT:TURBO; 1990-01-01~1991-08-01 |
24891-56X51-000 |
US $57.60 |
||
|
18
|
18
09400-15302-000
Clamp
AT:TURBO; 1990-01-01~1991-08-01 |
09400-15302-000 |
— | ||
| replacement | |||||
|
18
|
18
09400-15311-000 CLAMPAT:TURBO; 1990-01-01~1991-08-01 |
09400-15311-000 |
US $23.20 |
||
|
19
|
19
09401-13410-000
Clip
AT:TURBO; 1990-01-01~1991-08-01 |
09401-13410-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-12414-000 CLIPAT:TURBO; 1990-01-01~1991-08-01 |
09401-12414-000 |
from US $1.76 |
||
|
20
|
20
09360-10032-000
Bolt, union (10x24)
AT:TURBO; 1990-01-01~1991-08-01 |
09360-10032-000 |
— | ||
| replacement | |||||
|
20
|
20
09360-10055-000 UNIONBolt, oil pipe union AT:TURBO; 1990-01-01~1991-08-01 |
09360-10055-000 |
from US $2.45 |
||
|
21
|
21
09168-10028-000 GASKET(10X15X1)AT:TURBO; 1990-01-01~1991-08-01 |
09168-10028-000 |
US $12.90 |
||
|
22
|
22
24899-85500-000
PLATE,OIL PIPE
AT:TURBO; 1990-01-01~1991-08-01 |
24899-85500-000 |
— | ||
|
23
|
23
01517-06103-000
BOLT 6X10
AT:TURBO; 1990-01-01~1991-08-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0610A-000 BoltAT:TURBO; 1990-01-01~1991-08-01 |
01550-0610A-000 |
from US $0.96 |
||
|
23
|
23
01550-0610B-000 BoltBolt AT:TURBO; 1990-01-01~1991-08-01 |
01550-0610B-000 |
from US $0.96 |
||
|
24
|
24
24915-85500-000
ブラケット,オイルホースクランプ
AT:TURBO; 1990-01-01~1991-08-01 |
24915-85500-000 |
— | ||
|
25
|
25
09403-14302-000
Сlamp
AT:TURBO; 1990-01-01~1991-08-01 |
09403-14302-000 |
— | ||
| replacement | |||||
|
25
|
25
09403-14309-000 CLAMPAT:TURBO; 1990-01-01~1991-08-01 |
09403-14309-000 |
US $4.32 |
||
|
26
|
26
03541-06163-000
スクリュ
AT:TURBO; 1990-01-01~1991-08-01 |
03541-06163-000 |
— | ||
| replacement | |||||
|
26
|
26
03541-0616A-000 SCREWAT:TURBO; 1990-01-01~1991-08-01 |
03541-0616A-000 |
from US $0.64 |
||
|
27
|
27
09408-00135-000 CLIPAT:TURBO; 1990-01-01~1991-08-01 |
09408-00135-000 |
US $20.20 |
||
