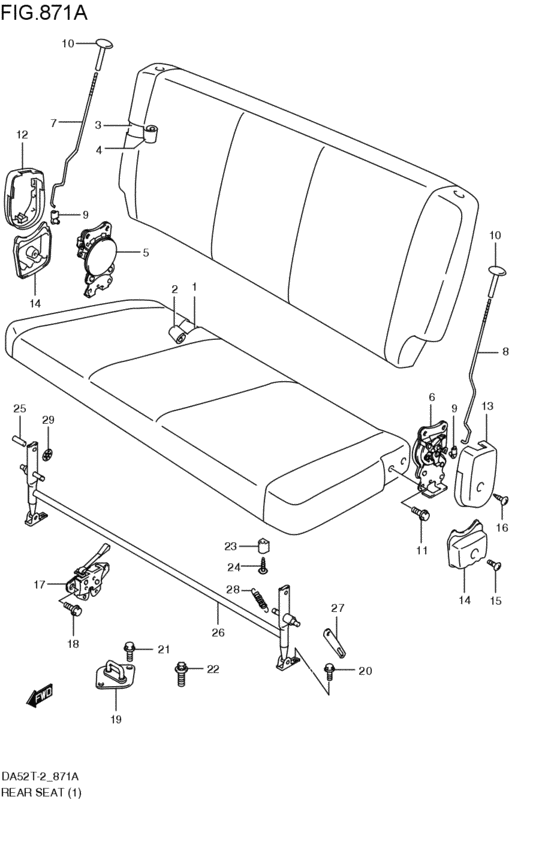

rear seat (V:(GA,PA); 1999-11-01~2000-06-01) Diagram Suzuki CARRY/EVERY
- Year
- 1999 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- PA
- number of the gears
- 3AT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-76AA1-000 CUSHION SUB ASSY,RRV:(GA,PA); 1999-11-01~2000-06-01 |
87105-76AA1-000 |
US $619.52 |
||
|
2
|
2
87180-76AA1-CJ1
TRIM,RR CUSHION
グレー; V:(GA,PA); 1999-11-01~2000-06-01 |
87180-76AA1-CJ1 |
— | ||
|
3
|
3
87305-76AA1-000
BACK S/ASSY,RR
V:(GA,PA); 1999-11-01~2000-06-01 |
87305-76AA1-000 |
— | ||
|
4
|
4
87380-76AA1-CJ1
TRIM,RR BACK
グレー; V:(GA,PA); 1999-11-01~2000-06-01 |
87380-76AA1-CJ1 |
— | ||
|
5
|
5
87210-79A00-000
Reclining assy, rh
V:(GA,PA); 1999-11-01~2000-06-01 |
87210-79A00-000 |
— | ||
| replacements | |||||
|
5
|
5
03241-0508A-000 SCREWV:(GA,PA); 1999-11-01~2000-06-01 |
03241-0508A-000 |
US $0.80 |
||
|
5
|
5
87210-79A01-000 RECLINING ASSY,RR,RV:(GA,PA); 1999-11-01~2000-06-01 |
87210-79A01-000 |
US $130.64 |
||
|
5
|
5
03241-05083-000
Screw
V:(GA,PA); 1999-11-01~2000-06-01 |
03241-05083-000 |
— | ||
|
6
|
6
87710-79A00-000
Reclining assy, lh
V:(GA,PA); 1999-11-01~2000-06-01 |
87710-79A00-000 |
— | ||
| replacements | |||||
|
6
|
6
03241-0508A-000 SCREWV:(GA,PA); 1999-11-01~2000-06-01 |
03241-0508A-000 |
US $0.80 |
||
|
6
|
6
87710-79A01-000 RECLINING ASSY,RR,LV:(GA,PA); 1999-11-01~2000-06-01 |
87710-79A01-000 |
US $130.64 |
||
|
6
|
6
03241-05083-000
Screw
V:(GA,PA); 1999-11-01~2000-06-01 |
03241-05083-000 |
— | ||
|
7
|
7
87215-64H00-000 ROD,RR RCLNG,RV:(GA,PA); 1999-11-01~2000-06-01 |
87215-64H00-000 |
US $15.31 |
||
|
8
|
8
87715-64H00-000 ROD,RR RCLNG,LV:(GA,PA); 1999-11-01~2000-06-01 |
87715-64H00-000 |
US $15.31 |
||
|
9
|
9
09403-04306-000 CLAMPConnector, choke rod V:(GA,PA); 1999-11-01~2000-06-01 |
09403-04306-000 |
US $20.20 |
||
|
10
|
10
87211-74G00-T01
Knob, rear back (gray)
グレ-; V:(GA,PA); 1999-11-01~2000-06-01 |
87211-74G00-T01 |
— | ||
| replacement | |||||
|
10
|
10
87211-74G10-T01 KNOB,RR BACKグレ-; V:(GA,PA); 1999-11-01~2000-06-01 |
87211-74G10-T01 |
US $4.16 |
||
|
11
|
11
01550-10203-000
Bolt
V:(GA,PA); 1999-11-01~2000-06-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1020A-000 BOLTBolt, bal sprocket V:(GA,PA); 1999-11-01~2000-06-01 |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
87222-79A10-T01 COVER,RR RECL UPPER,RCover, reclining upper rh (gray) グレ-; V:(GA,PA); 1999-11-01~2000-06-01 |
87222-79A10-T01 |
US $20.61 |
||
|
13
|
13
87722-79A10-T01 COVER,RR RECL UPPER,LCover, reclining upper lh (gray) グレ-; V:(GA,PA); 1999-11-01~2000-06-01 |
87722-79A10-T01 |
US $20.61 |
||
|
14
|
14
87223-79A10-T01
Cover, reclining lower (gray)
グレ-; V:(GA,PA); 1999-11-01~2000-06-01 |
87223-79A10-T01 |
— | ||
| replacement | |||||
|
14
|
14
87223-79A10-P4Z COVER RR RECL LOWERグレ-; V:(GA,PA); 1999-11-01~2000-06-01 |
87223-79A10-P4Z |
US $13.76 |
||
|
15
|
15
02142-04083-000
Screw
V:(GA,PA); 1999-11-01~2000-06-01 |
02142-04083-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0408B-000 SCREWV:(GA,PA); 1999-11-01~2000-06-01 |
02142-0408B-000 |
from US $0.77 |
||
|
16
|
16
03241-05083-000
Screw
V:(GA,PA); 1999-11-01~2000-06-01 |
03241-05083-000 |
— | ||
|
17
|
17
87460-76A00-000 LOCK ASSY,RRLock assy, rear V:(GA,PA); 1999-11-01~2000-06-01 |
87460-76A00-000 |
US $87.58 |
||
|
18
|
18
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle V:(GA,PA); 1999-11-01~2000-06-01 |
09103-11001-000 |
US $18 |
||
|
19
|
19
87870-76A00-000 STRIKER,RRStriker, rr V:(GA,PA); 1999-11-01~2000-06-01 |
87870-76A00-000 |
US $29.07 |
||
|
20
|
20
01551-08163-000
Bolt
V:(GA,PA); 1999-11-01~2000-06-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01551-0816C-000 BoltV:(GA,PA); 1999-11-01~2000-06-01 |
01551-0816C-000 |
from US $0.96 |
||
|
20
|
20
01551-0816A-000
ボルト
V:(GA,PA); 1999-11-01~2000-06-01 |
01551-0816A-000 |
— | ||
|
21
|
21
01551-10203-000
Bolt, 3rd striker
V:(GA,PA); 1999-11-01~2000-06-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
21
|
21
01551-1020A-000 BoltV:(GA,PA); 1999-11-01~2000-06-01 |
01551-1020A-000 |
US $17.30 |
||
|
22
|
22
09119-10071-000 BOLTV:(GA,PA); 1999-11-01~2000-06-01 |
09119-10071-000 |
US $21 |
||
|
23
|
23
87291-60A10-000 CUSHION,RR SEATV:(GA,PA); 1999-11-01~2000-06-01 |
87291-60A10-000 |
US $1.95 |
||
|
24
|
24
03242-05123-000
Screw, inner cover
V:(GA,PA); 1999-11-01~2000-06-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03241-0512A-000 SCREWV:(GA,PA); 1999-11-01~2000-06-01 |
03241-0512A-000 |
from US $0.68 |
||
|
25
|
25
87222-79A00-000 PIN,REAR SEAT LEGV:(GA,PA); 1999-11-01~2000-06-01 |
87222-79A00-000 |
US $2.72 |
||
|
26
|
26
87250-76AA1-000
LEG,RR SEAT
V:(GA,PA); 1999-11-01~2000-06-01 |
87250-76AA1-000 |
— | ||
|
27
|
27
87255-79A10-000 ARM,RR SEAT LEGV:(GA,PA); 1999-11-01~2000-06-01 |
87255-79A10-000 |
US $5.78 |
||
|
28
|
28
87263-79A10-000 SPRING,RR SEAT LEGV:(GA,PA); 1999-11-01~2000-06-01 |
87263-79A10-000 |
US $9.72 |
||
|
29
|
29
09148-08002-000 NUTV:(GA,PA); 1999-11-01~2000-06-01 |
09148-08002-000 |
US $11 |
||
