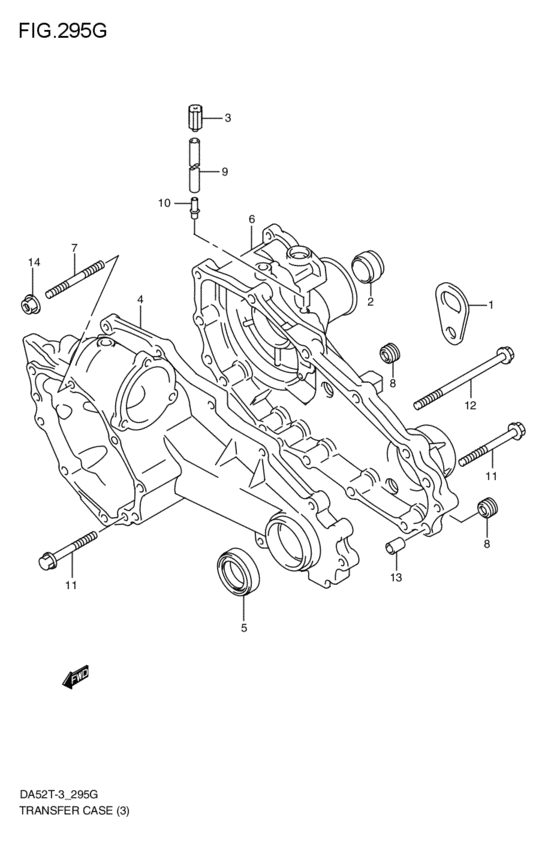

transfer case (MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2000 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PSE
- number of the gears
- 5MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-72B21-000 HOOK,ENGINEMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
11851-72B21-000 |
US $2.80 |
||
|
2
|
2
24780-78A00-000 SEAL,EXTENSION CASEMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
24780-78A00-000 |
from US $5.51 |
||
|
3
|
3
27991-65D01-000 PLUG,BREATHERMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
27991-65D01-000 |
from US $1.92 |
||
|
4
|
4
29511-79A01-000
ケース,トランスファ,フロント
MT:4WD:(V:TURBO,W); 2000-05-01~2001-02-01 |
29511-79A01-000 |
— | ||
| replacements | |||||
|
4
|
4
29150-79A20-000
シャフト,トランスファアウトプツト,フロント
MT:4WD:(V:TURBO,W); 2000-05-01~2001-02-01 |
29150-79A20-000 |
— | ||
|
4
|
4
29511-79A02-000
ケース,トランスファ,フロント
MT:4WD:(V:TURBO,W); 2000-05-01~2001-02-01 |
29511-79A02-000 |
— | ||
|
4
|
4
29511-79A02-000
ケース,トランスファ,フロント
MT:4WD:(V:TURBO,W); 2001-02-01~2001-10-01 |
29511-79A02-000 |
— | ||
|
5
|
5
29515-79A00-000 SEAL,T/F FR CASE OILMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
29515-79A00-000 |
US $9.92 |
||
|
6
|
6
29520-79A21-000
ケース,トランスファ,リヤ
MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
29520-79A21-000 |
— | ||
| replacement | |||||
|
6
|
6
29520-79A23-000
CASE,T/F,RR
MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
29520-79A23-000 |
— | ||
|
7
|
7
09108-08196-000 BOLT,STUDMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
09108-08196-000 |
US $34.20 |
||
|
8
|
8
09246-16010-000 PLUGMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
8
|
8
09246-16021-000 Plug,t/m Oil DrainMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
09246-16021-000 |
from US $4.01 |
||
|
9
|
9
09352-70113-600
HOSE(7X11X600)
L:600>40; MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
09352-70113-600 |
— | ||
| replacement | |||||
|
9
|
9
09352-70119-600 Hose(7X11X600)L:600>40; MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
09352-70119-600 |
from US $4.64 |
||
|
10
|
10
09364-08004-000 UNIONMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
09364-08004-000 |
US $14.40 |
||
|
11
|
11
01550-08403-000
Bolt
MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0840B-000 BoltMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
01550-0840B-000 |
from US $1.12 |
||
|
11
|
11
01550-0840A-000 BOLTMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
01550-0840A-000 |
from US $1.12 |
||
|
12
|
12
01550-08703-000
Bolt
MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
01550-08703-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0870B-000 BoltBolt, sec case MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
01550-0870B-000 |
from US $3.62 |
||
|
13
|
13
04211-13149-000 PINMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
04211-13149-000 |
from US $1.28 |
||
|
14
|
14
08316-10083-000
Nut
MT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUTMT:4WD:(V:TURBO,W); 2000-05-01~2001-10-01 |
08316-1008B-000 |
from US $0.76 |
||
