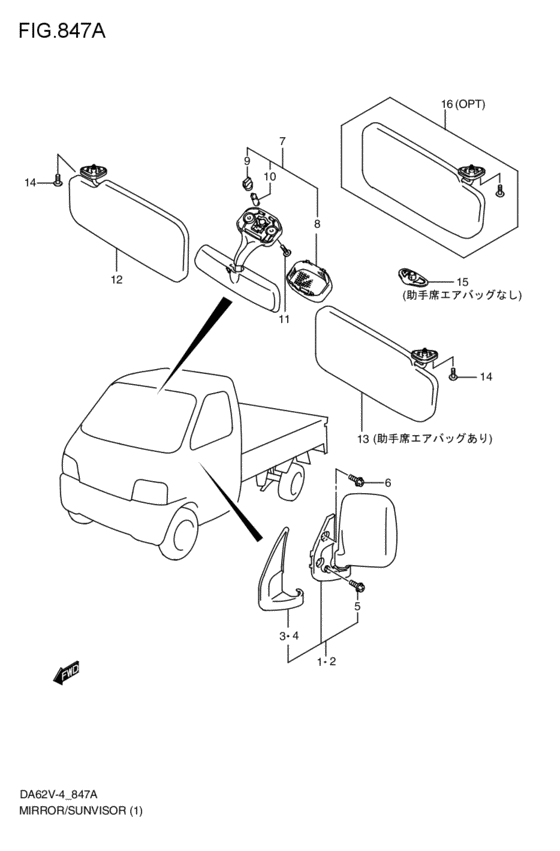

mirror / sun visor (KU; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- KU
- number of the gears
- 3AT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST-N
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-77A00-5PK MIRROR ASSY,RR VIEW,RMirror, out rear view rh (black) ブラック; KU; 2001-08-01~2002-12-01 |
84701-77A00-5PK |
US $180.80 |
||
|
2
|
2
84702-77A00-5PK MIRROR ASSY,RR VIEW,LMirror, out rear view lh (black) ブラック; KU; 2001-08-01~2002-12-01 |
84702-77A00-5PK |
US $148 |
||
|
3
|
3
84711-77A00-5PK COVER,OUT RR VIEW,Rブラック; KU; 2001-08-01~2002-12-01 |
84711-77A00-5PK |
US $18.95 |
||
|
4
|
4
84731-77A00-5PK COVER,OUT RR VIEW,Lブラック; KU; 2001-08-01~2002-12-01 |
84731-77A00-5PK |
US $18.95 |
||
|
5
|
5
02162-06163-000
Screw
KU; 2001-08-01~2002-12-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust KU; 2001-08-01~2002-12-01 |
02162-0616B-000 |
from US $0.80 |
||
|
6
|
6
02162-06163-000
Screw
KU; 2001-08-01~2002-12-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust KU; 2001-08-01~2002-12-01 |
02162-0616B-000 |
from US $0.80 |
||
|
7
|
7
84703-63H20-6GS
Mirror assy,inside rear view
グレ-; KU; 2001-08-01~2002-12-01 |
84703-63H20-6GS |
— | ||
| replacement | |||||
|
7
|
7
84703-68H01-6GS MIRROR ASSY,INS RR VIEW(GRAY)グレ-; KU; 2001-08-01~2002-12-01 |
84703-68H01-6GS |
US $108 |
||
|
8
|
8
36212-76G00-000 LENS,ROOM LAMPKU; 2001-08-01~2002-12-01 |
36212-76G00-000 |
US $3.68 |
||
|
9
|
9
36218-74F00-000 SOCKETKU; 2001-08-01~2002-12-01 |
36218-74F00-000 |
US $3.35 |
||
|
10
|
10
09471-12113-000 BULB(12V8W)KU; 2001-08-01~2002-12-01 |
09471-12113-000 |
from US $1.49 |
||
|
11
|
11
02142-06123-000
Screw
KU; 2001-08-01~2002-12-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0612B-000 SCREWKU; 2001-08-01~2002-12-01 |
02142-0612B-000 |
from US $0.76 |
||
|
11
|
11
02142-0612A-000 SCREWKU; 2001-08-01~2002-12-01 |
02142-0612A-000 |
from US $0.80 |
||
|
12
|
12
84801-79A11-6GS
サンバイザアッシ,ライト(グレー)
グレ-; 2WD:AB; 2001-08-01~2002-12-01 |
84801-79A11-6GS |
— | ||
| replacement | |||||
|
12
|
12
84801-79A1V-6GS
サンバイザアッシ,ライト(グレー)
グレ-; 2WD:AB; 2001-08-01~2002-12-01 |
84801-79A1V-6GS |
— | ||
|
13
|
13
84802-79A41-6GS
サンバイザアッシ,レフト(グレー)
グレ-; AB; 2001-08-01~2002-12-01 |
84802-79A41-6GS |
— | ||
|
14
|
14
03121-05163-000
Screw
ABS-N; 2001-08-01~2002-12-01 |
03121-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03121-0516A-000 SCREWABS-N; 2001-08-01~2002-12-01 |
03121-0516A-000 |
from US $0.80 |
||
