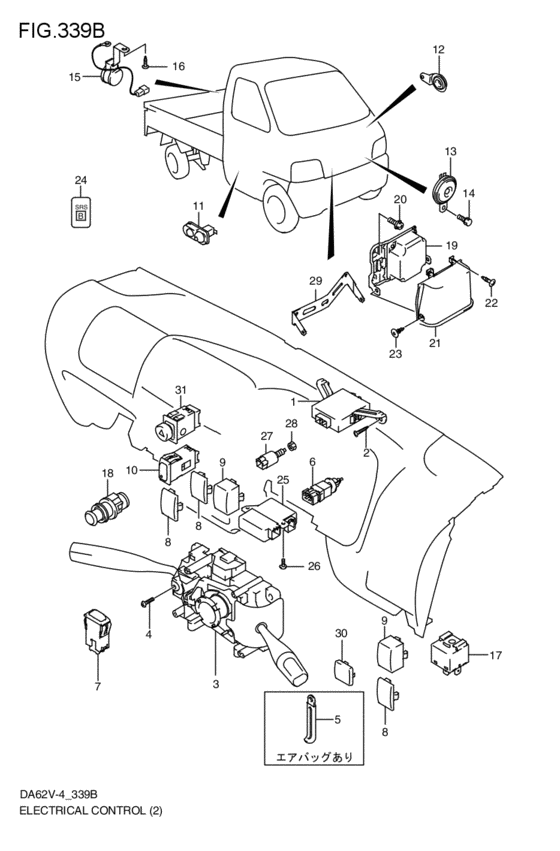

electrical control (T:KUF; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- KUF
- number of the gears
- 5MT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
37400-78AB0-000
スイッチアッシ,コンビネーション
T:KUF:AB; 2001-08-01~2002-12-01 |
37400-78AB0-000 |
— | ||
| replacement | |||||
|
3
|
3
37400-78AB1-000
スイッチアッシ,コンビネーション
T:KUF:AB; 2001-08-01~2002-12-01 |
37400-78AB1-000 |
— | ||
|
4
|
4
02112-05123-000
Screw 5x12
T:KUF; 2001-08-01~2002-12-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0512A-000 SCREWT:KUF; 2001-08-01~2002-12-01 |
02112-0512A-000 |
from US $0.80 |
||
|
5
|
5
09404-06432-000
CLAMP(L:65)
T:KUF:AB; 2001-08-01~2002-12-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
5
|
5
09404-06039-000 Clamp(L:65)T:KUF:AB; 2001-08-01~2002-12-01 |
09404-06039-000 |
from US $1.82 |
||
|
6
|
6
37740-75H10-000
SWITCH ASSY,STOP LAMP
T:KUF; 2002-04-01~2002-12-01 |
37740-75H10-000 |
— | ||
| replacements | |||||
|
6
|
6
37741-75H10-000 Switch Assy,stop LampT:KUF; 2002-04-01~2002-12-01 |
37741-75H10-000 |
US $17.49 |
||
|
6
|
6
37742-75H10-000 Bush,stop Lamp SwT:KUF; 2002-04-01~2002-12-01 |
37742-75H10-000 |
US $4.64 |
||
|
6
|
6
37740-80G10-000 SWITCH ASSY,STOP LAMPT:KUF; 2001-08-01~2002-04-01 |
37740-80G10-000 |
US $27.97 |
||
|
8
|
8
37285-75F10-000 CAP,OPTION SW HOLET:KUF; 2001-08-01~2002-12-01 |
37285-75F10-000 |
US $2.80 |
||
|
9
|
9
37285-75F00-000 CAP,OPTION SW HOLET:KUF; 2001-08-01~2002-12-01 |
37285-75F00-000 |
US $2.28 |
||
|
10
|
10
37785-78A10-000 SWITCH ASSY,DIFF LOCKT:KUF; 2001-08-01~2002-12-01 |
37785-78A10-000 |
US $39.38 |
||
|
11
|
11
37670-76G00-000 SWITCH ASSY,DOORT:KUF; 2001-08-01~2002-12-01 |
37670-76G00-000 |
US $29.60 |
||
|
12
|
12
37671-76G10-000 CAP,DR SW HOLET:KUF; 2001-08-01~2002-12-01 |
37671-76G10-000 |
US $1.62 |
||
|
13
|
13
38500-61H00-000 HORN ASSY,LOW PITCHT:KUF; 2001-08-01~2002-12-01 |
38500-61H00-000 |
US $71.39 |
||
|
14
|
14
01570-08123-000
Bolt
T:KUF; 2001-08-01~2002-12-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-0812A-000 BoltT:KUF; 2001-08-01~2002-12-01 |
01570-0812A-000 |
US $14.40 |
||
|
15
|
15
38750-60H00-000
HORN ASSY,BACK UP
T:KUF; 2001-08-01~2002-12-01 |
38750-60H00-000 |
— | ||
| replacement | |||||
|
15
|
15
38750-60H01-000
New Genuine Part
T:KUF; 2001-08-01~2002-12-01 |
38750-60H01-000 |
— | ||
|
16
|
16
03141-06123-000
Screw 6x12
T:KUF; 2001-08-01~2002-12-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0612A-000 SCREWT:KUF; 2001-08-01~2002-12-01 |
03141-0612A-000 |
US $0.76 |
||
|
17
|
17
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way T:KUF; 2001-08-01~2002-12-01 |
38610-76G00-000 |
US $56.80 |
||
|
18
|
18
39400-54G00-000 LIGHTER ASSY,CIGARETTET:KUF; 2001-08-01~2002-12-01 |
39400-54G00-000 |
US $22.26 |
||
|
19
|
19
38910-65H20-000
コントローラアッシ,エアバッグ
T:KUF:AB; 2001-08-01~2002-12-01 |
38910-65H20-000 |
— | ||
|
20
|
20
09115-06001-000
Bolt, lh
T:KUF:AB; 2001-08-01~2002-12-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
20
|
20
09115-06005-000 BOLT(6X16)T:KUF:AB; 2001-08-01~2002-12-01 |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
38881-62H01-P4Z
COVER,A/B CONT
T:KUF:AB; 2001-08-01~2002-12-01 |
38881-62H01-P4Z |
— | ||
|
22
|
22
03242-05123-000
Screw, inner cover
T:KUF:AB; 2001-08-01~2002-12-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0512A-000 SCREWT:KUF:AB; 2001-08-01~2002-12-01 |
03241-0512A-000 |
from US $0.68 |
||
|
23
|
23
09409-07308-5PK CLIP(BLACK)T:KUF:AB; 2001-08-01~2002-12-01 |
09409-07308-5PK |
US $1.76 |
||
|
24
|
24
38918-76G00-000 LABEL,AIR BAG(MARK B)T:KUF:AB; 2001-08-01~2002-12-01 |
38918-76G00-000 |
US $2.87 |
||
|
25
|
25
38720-78A10-000
Control unit, Power steering
T:KUF:PWST; 2001-08-01~2002-12-01 |
38720-78A10-000 |
— | ||
|
26
|
26
02142-05163-000
Bolt
T:KUF:PWST; 2001-08-01~2002-12-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0516B-000 SCREWT:KUF:PWST; 2001-08-01~2002-12-01 |
02142-0516B-000 |
from US $0.80 |
||
|
26
|
26
02142-0516A-000 SCREWScrew T:KUF:PWST; 2001-08-01~2002-12-01 |
02142-0516A-000 |
from US $0.76 |
||
|
27
|
27
37970-76F00-000
スイッチアッシ,クラッチスタート
T:KUF:MT; 2001-08-01~2002-12-01 |
37970-76F00-000 |
— | ||
| replacement | |||||
|
27
|
27
37970-76F02-000 SWITCH ASSY,CLUTCH STARTT:KUF:MT; 2001-08-01~2002-12-01 |
37970-76F02-000 |
US $21.34 |
||
|
28
|
28
09140-10043-000 NUTNut, tie rod rh thread T:KUF:MT; 2001-08-01~2002-12-01 |
09140-10043-000 |
from US $0.91 |
||
|
30
|
30
37285-75F20-000 CAP,SW HOLET:KUF; 2001-08-01~2002-12-01 |
37285-75F20-000 |
US $2.80 |
||
|
31
|
31
37430-74G00-000
スイッチアッシ,ハザードウォーニング
T:KUF; 2001-08-01~2002-12-01 |
37430-74G00-000 |
— | ||
| replacement | |||||
|
31
|
31
37430-66H00-000 SWITCH ASSY,HAZARD WARNINGT:KUF; 2001-08-01~2002-12-01 |
37430-66H00-000 |
US $40.48 |
||
