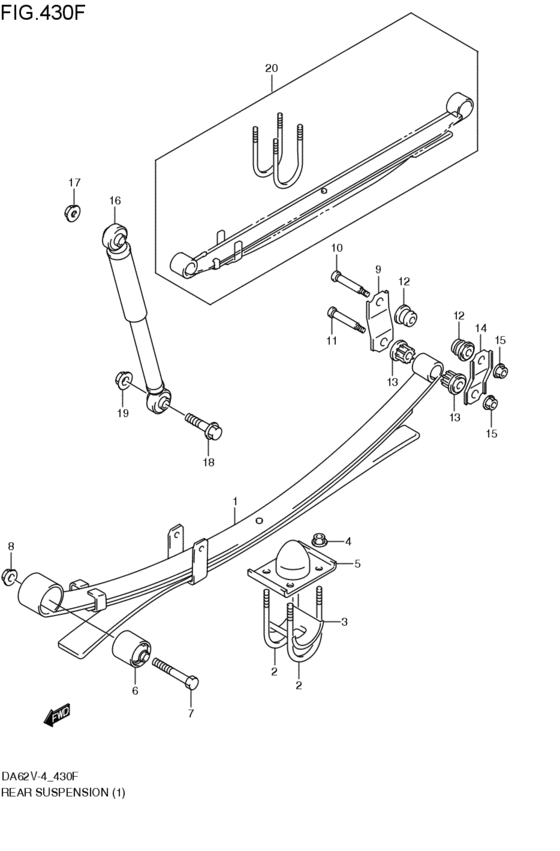

rear suspension (T; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- KUF
- number of the gears
- 5MT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-78A12-000
スプリングアッシ,リヤ
T:2WD; 2001-08-01~2002-12-01 |
41310-78A12-000 |
— | ||
|
2
|
2
41411-78A00-000 U-BOLT,RR SPRINGT; 2001-08-01~2002-12-01 |
41411-78A00-000 |
US $13.92 |
||
|
3
|
3
41421-78A00-000 PLATE,U-BOLT GUIDET; 2001-08-01~2002-12-01 |
41421-78A00-000 |
US $7.40 |
||
|
4
|
4
09159-10101-000 NUTT; 2001-08-01~2002-12-01 |
09159-10101-000 |
US $17.70 |
||
|
5
|
5
42150-78A00-000
バンパ,リヤスプリング
T; 2001-08-01~2002-12-01 |
42150-78A00-000 |
— | ||
|
6
|
6
09319-12046-000 BUSH(12.2X50X64.5)T; 2001-08-01~2002-12-01 |
09319-12046-000 |
US $441.60 |
||
|
7
|
7
09103-12044-000 BOLT(12X87)T; 2001-08-01~2002-12-01 |
09103-12044-000 |
from US $2.48 |
||
|
8
|
8
08316-10123-000
Nut
T; 2001-08-01~2002-12-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1012A-000 NUTT; 2001-08-01~2002-12-01 |
08316-1012A-000 |
from US $0.96 |
||
|
9
|
9
41462-78A00-000 PLATE,SPRING SHACKLE INNERT; 2001-08-01~2002-12-01 |
41462-78A00-000 |
US $10.82 |
||
|
10
|
10
41463-78A00-000 PIN,SPRING SHACKLE NO.1T; 2001-08-01~2002-12-01 |
41463-78A00-000 |
US $8.61 |
||
|
11
|
11
41464-78A00-000 PIN,SPRING SHACKLE NO.2T; 2001-08-01~2002-12-01 |
41464-78A00-000 |
US $8.61 |
||
|
12
|
12
41465-78A00-000
Bushing, spring shackle no.1
T; 2001-08-01~2002-12-01 |
41465-78A00-000 |
— | ||
| replacement | |||||
|
12
|
12
41465-78A10-000 BUSHING,SPRING SHACKLE NO.1T; 2001-08-01~2002-12-01 |
41465-78A10-000 |
from US $5.51 |
||
|
13
|
13
09320-14019-000 BUSHINGT; 2001-08-01~2002-12-01 |
09320-14019-000 |
US $85 |
||
|
14
|
14
41461-78A00-000 PLATE,SPRING SHACKLE OUTERT; 2001-08-01~2002-12-01 |
41461-78A00-000 |
US $10.82 |
||
|
15
|
15
08316-10103-000
Nut
T; 2001-08-01~2002-12-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1010B-000 NUTT; 2001-08-01~2002-12-01 |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
41700-78A00-000
ABSORBER ASSY,RR SHOCK
T; 2001-08-01~2002-12-01 |
41700-78A00-000 |
— | ||
| replacement | |||||
|
16
|
16
41700-78A01-000 ABSORBER ASSY,RR SHOCKT; 2001-08-01~2002-12-01 |
41700-78A01-000 |
US $208.24 |
||
|
17
|
17
08316-10103-000
Nut
T; 2001-08-01~2002-12-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1010B-000 NUTT; 2001-08-01~2002-12-01 |
08316-1010B-000 |
from US $0.80 |
||
|
18
|
18
09103-12501-000 BOLT(12X55)T; 2001-08-01~2002-12-01 |
09103-12501-000 |
from US $2.40 |
||
|
19
|
19
08316-10123-000
Nut
T; 2001-08-01~2002-12-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1012A-000 NUTT; 2001-08-01~2002-12-01 |
08316-1012A-000 |
from US $0.96 |
||
|
20
|
20
41300-78810-000
スプリングセット,リヤ,2WD
OPT; T:2WD; 2001-08-01~2002-12-01 |
41300-78810-000 |
— | ||
| replacement | |||||
|
20
|
20
41300-78811-000
スプリングセット,リヤ,2WD
OPT; T:2WD; 2001-08-01~2002-12-01 |
41300-78811-000 |
— | ||
