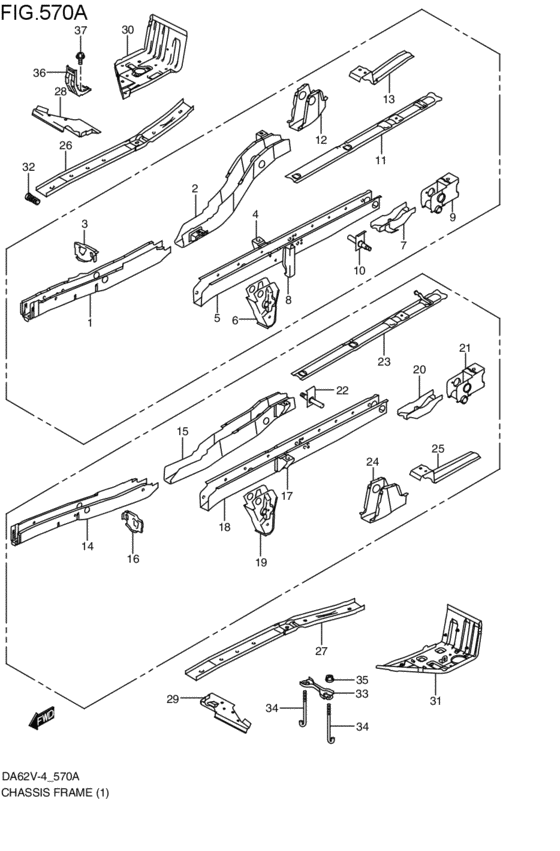

シャシフレ - ム (T; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- KU
- number of the gears
- 5MT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59110-78A30-000
フレーム,フロアフロント,ライト
T; 2001-08-01~2002-12-01 |
59110-78A30-000 |
— | ||
| replacement | |||||
|
1
|
1
59110-62H00-000 FRAME,FLOOR FR,RT; 2001-08-01~2002-12-01 |
59110-62H00-000 |
US $425.92 |
||
|
2
|
2
59120-78A30-000
フレーム,フロアセンタ,ライト
T; 2001-08-01~2002-12-01 |
59120-78A30-000 |
— | ||
| replacement | |||||
|
2
|
2
59120-76A31-000 FRAME,FLOOR CENTER,RT; 2001-08-01~2002-12-01 |
59120-76A31-000 |
US $368 |
||
|
3
|
3
59131-79A00-000 REINFORCEMENT,FR FL SIDE,RT; 2001-08-01~2002-12-01 |
59131-79A00-000 |
US $30.73 |
||
|
4
|
4
59122-62H01-000 BRACKET,DECK MTG FRONTT; 2001-08-01~2002-12-01 |
59122-62H01-000 |
US $13.06 |
||
|
5
|
5
59211-78A00-000
フレーム,フロア,リヤ
T; 2001-08-01~2002-12-01 |
59211-78A00-000 |
— | ||
| replacement | |||||
|
5
|
5
59211-76A00-000
FRAME,FLOOR RR
T; 2001-08-01~2002-12-01 |
59211-76A00-000 |
— | ||
|
6
|
6
59230-78A00-000 HANGER,LEAF SPRING FRHanger, leaf spring fr T; 2001-08-01~2002-12-01 |
59230-78A00-000 |
US $49.68 |
||
|
7
|
7
59240-64H00-000
STOPPER,RR BUMP,R
T; 2001-08-01~2002-12-01 |
59240-64H00-000 |
— | ||
|
8
|
8
59251-64H00-000
BRACKET,FUEL TANK RR,R
T; 2001-08-01~2002-12-01 |
59251-64H00-000 |
— | ||
|
9
|
9
59260-78A31-000 HANGER,LEAF SPRING RRT; 2001-08-01~2002-12-01 |
59260-78A31-000 |
US $52.62 |
||
|
10
|
10
59270-78A00-000
Bracket, shock absorber pivot
T; 2001-08-01~2002-12-01 |
59270-78A00-000 |
— | ||
| replacement | |||||
|
10
|
10
59270-83J01-000 BRACKET,SHOCK ABS PIVOTT; 2001-08-01~2002-12-01 |
59270-83J01-000 |
US $57.60 |
||
|
11
|
11
59291-76A00-000
COVER,RR FRAME
T; 2001-08-01~2002-12-01 |
59291-76A00-000 |
— | ||
|
12
|
12
59160-65H00-000
EXTENSION,CTR FRAME,R
T; 2001-08-01~2002-12-01 |
59160-65H00-000 |
— | ||
|
13
|
13
59191-78A30-000
カバー,センタフレーム,ライト
T; 2001-08-01~2002-12-01 |
59191-78A30-000 |
— | ||
|
14
|
14
59410-78A31-000
フレーム,フロアフロント,レフト
T; 2001-08-01~2002-12-01 |
59410-78A31-000 |
— | ||
|
15
|
15
59420-64H00-000 FRAME,FLOOR CENTER,LT; 2001-08-01~2002-12-01 |
59420-64H00-000 |
US $162.66 |
||
|
16
|
16
59431-79A00-000 REINFORCEMENT,FR FL SIDE,LT; 2001-08-01~2002-12-01 |
59431-79A00-000 |
US $13.06 |
||
|
17
|
17
59122-62H01-000 BRACKET,DECK MTG FRONTT; 2001-08-01~2002-12-01 |
59122-62H01-000 |
US $13.06 |
||
|
18
|
18
59211-78A00-000
フレーム,フロア,リヤ
T; 2001-08-01~2002-12-01 |
59211-78A00-000 |
— | ||
| replacement | |||||
|
18
|
18
59211-76A00-000
FRAME,FLOOR RR
T; 2001-08-01~2002-12-01 |
59211-76A00-000 |
— | ||
|
19
|
19
59230-78A00-000 HANGER,LEAF SPRING FRHanger, leaf spring fr T; 2001-08-01~2002-12-01 |
59230-78A00-000 |
US $49.68 |
||
|
20
|
20
59540-64H00-000
STOPPER,REAR BUMP,L
T; 2001-08-01~2002-12-01 |
59540-64H00-000 |
— | ||
|
21
|
21
59260-78A31-000 HANGER,LEAF SPRING RRT; 2001-08-01~2002-12-01 |
59260-78A31-000 |
US $52.62 |
||
|
22
|
22
59270-78A00-000
Bracket, shock absorber pivot
T; 2001-08-01~2002-12-01 |
59270-78A00-000 |
— | ||
| replacement | |||||
|
22
|
22
59270-83J01-000 BRACKET,SHOCK ABS PIVOTT; 2001-08-01~2002-12-01 |
59270-83J01-000 |
US $57.60 |
||
|
23
|
23
59290-76A00-000
COVER,RR FRAME
T; 2001-08-01~2002-12-01 |
59290-76A00-000 |
— | ||
|
24
|
24
59460-78A01-000
EXTENSION,CTR FRAME,L
T; 2001-08-01~2002-12-01 |
59460-78A01-000 |
— | ||
|
25
|
25
59491-78A00-000
カバー,センタフレーム,レフト
T; 2001-08-01~2002-12-01 |
59491-78A00-000 |
— | ||
| replacement | |||||
|
25
|
25
59490-76A00-000
COVER,CTR FRAME,L
T; 2001-08-01~2002-12-01 |
59490-76A00-000 |
— | ||
|
26
|
26
59140-78A30-000
ビーム,フロントフレーム,ライト
T; 2001-08-01~2002-12-01 |
59140-78A30-000 |
— | ||
|
27
|
27
59440-78A30-000
ビーム,フロントフレーム,レフト
T; 2001-08-01~2002-12-01 |
59440-78A30-000 |
— | ||
|
28
|
28
59171-79A30-000
カバー,フロントフレームフロント,ライト
T; 2001-08-01~2002-12-01 |
59171-79A30-000 |
— | ||
| replacement | |||||
|
28
|
28
59171-67H00-000 COVER,FR FRAME FR,RT; 2001-08-01~2002-12-01 |
59171-67H00-000 |
US $11.78 |
||
|
29
|
29
59470-79A00-000
カバー,フロントフレームフロント,レフト
T; 2001-08-01~2002-12-01 |
59470-79A00-000 |
— | ||
|
30
|
30
59181-65H00-000
カバー,フロントフレームリヤ,ライト
T; 2001-08-01~2002-12-01 |
59181-65H00-000 |
— | ||
|
31
|
31
59481-76A00-000
COVER,FR FRAME RR,L
T; 2001-08-01~2002-12-01 |
59481-76A00-000 |
— | ||
|
32
|
32
09119-05018-000 BOLT(8X35)T; 2001-08-01~2002-12-01 |
09119-05018-000 |
US $9.60 |
||
|
33
|
33
72511-86000-000 BAND,BATTERYT; 2001-08-01~2002-12-01 |
72511-86000-000 |
US $10.94 |
||
|
34
|
34
72523-66H00-000 BOLT,BATTERYT; 2001-08-01~2002-12-01 |
72523-66H00-000 |
US $4.32 |
||
|
35
|
35
08316-10053-000
Nut
T; 2001-08-01~2002-12-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
35
|
35
08316-1005A-000 NUTT; 2001-08-01~2002-12-01 |
08316-1005A-000 |
from US $0.80 |
||
|
36
|
36
65991-78A30-000
ブラケット,フロントバンパ,サイド
ライト; T; 2001-08-01~2002-12-01 |
65991-78A30-000 |
— | ||
|
37
|
37
02162-06123-000
Bolt (6x12)
ライト; T; 2001-08-01~2002-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
02162-0612B-000 SCREWBolt ライト; T; 2001-08-01~2002-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
37
|
37
02162-0612A-000 SCREWBolt, bracket ライト; T; 2001-08-01~2002-12-01 |
02162-0612A-000 |
from US $0.80 |
||
