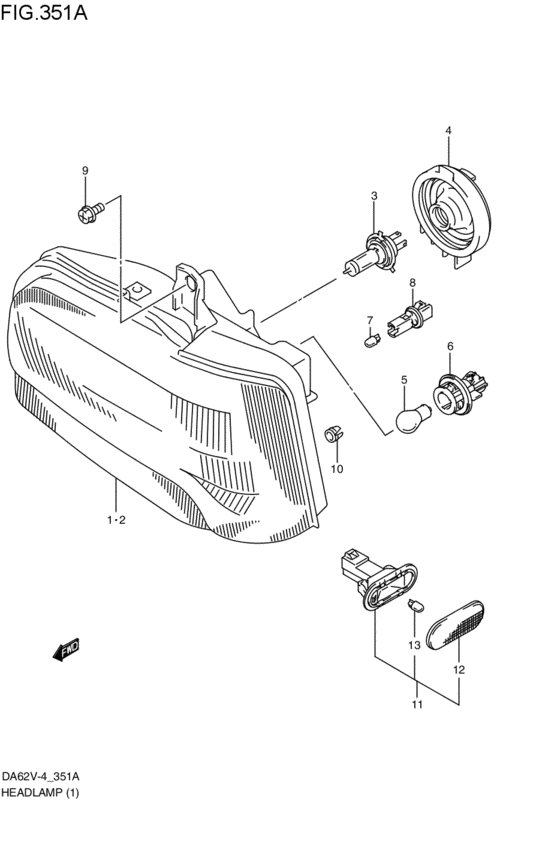

head lamp (T; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- KU
- number of the gears
- 3AT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST-N
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-62H00-000 UNIT,HEADLAMP,RT; 2001-08-01~2002-12-01 |
35120-62H00-000 |
US $445.03 |
||
|
2
|
2
35320-62H00-000 UNIT,HEADLAMP,LT; 2001-08-01~2002-12-01 |
35320-62H00-000 |
US $537.94 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4)T; 2001-08-01~2002-12-01 |
09471-12182-000 |
from US $31.92 |
||
|
4
|
4
35125-77A00-000 COVER,SOCKETT; 2001-08-01~2002-12-01 |
35125-77A00-000 |
from US $11.68 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER)アンバ-; T; 2001-08-01~2002-12-01 |
09471-12186-000 |
from US $17.09 |
||
|
6
|
6
36118-77A00-000 SOCKET,TURN LAMPT; 2001-08-01~2002-12-01 |
36118-77A00-000 |
US $9.12 |
||
|
7
|
7
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; T; 2001-08-01~2002-12-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; T; 2001-08-01~2002-12-01 |
09471-12216-000 |
from US $4.32 |
||
|
8
|
8
35118-76F00-000 SOCKET,POSITION LAMPT; 2001-08-01~2002-12-01 |
35118-76F00-000 |
US $9.28 |
||
|
9
|
9
09122-76001-000 SCREW(6X16)T; 2001-08-01~2002-12-01 |
09122-76001-000 |
US $0.80 |
||
|
10
|
10
35153-60G00-000 GROMMET,LAMPT; 2001-08-01~2002-12-01 |
35153-60G00-000 |
US $1.60 |
||
|
11
|
11
36410-50E01-000 LAMP,SIDE TURN(HSGT; 2001-08-01~2002-12-01 |
36410-50E01-000 |
US $57.01 |
||
|
12
|
12
36412-70B00-000 LENS,SIDE TURN (AMBER)(AMBER) T; 2001-08-01~2002-12-01 |
36412-70B00-000 |
US $9.60 |
||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) T; 2001-08-01~2002-12-01 |
09471-12216-000 |
from US $4.32 |
||
