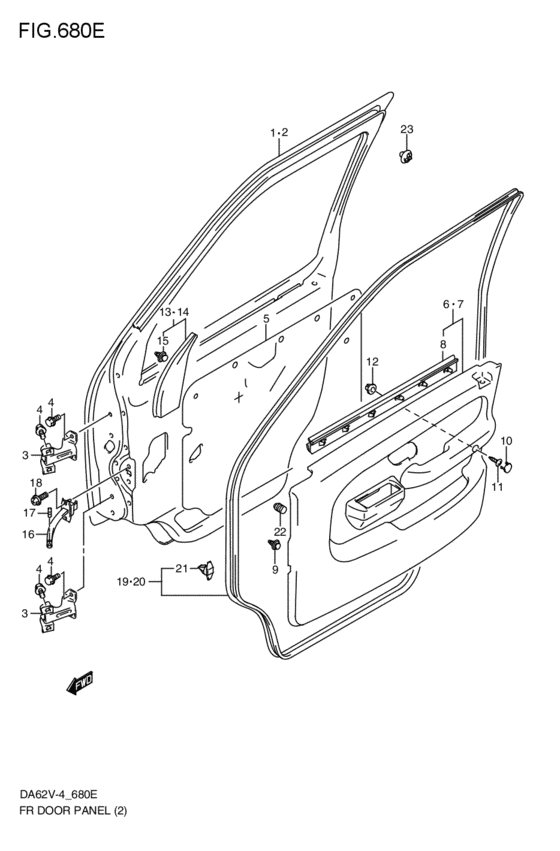

front door panel (T:KUF; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- KUF
- number of the gears
- 3AT
- body
- T
- air bag
- AB-N
- abs
- ABS-N
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-65H10-000
パネルアッシ,フロントドア,ライト
T:KUF; 2001-08-01~2002-12-01 |
68001-65H10-000 |
— | ||
|
2
|
2
68002-65H10-000
パネルアッシ,フロントドア,レフト
T:KUF; 2001-08-01~2002-12-01 |
68002-65H10-000 |
— | ||
|
3
|
3
69310-77A00-000 HINGE,FR DOORT:KUF; 2001-08-01~2002-12-01 |
69310-77A00-000 |
US $68 |
||
|
4
|
4
01551-08203-000
Bolt
T:KUF; 2001-08-01~2002-12-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
4
|
4
01551-0820A-000 BOLTT:KUF; 2001-08-01~2002-12-01 |
01551-0820A-000 |
from US $0.96 |
||
|
5
|
5
83911-60X51-000
Cover, door sealing (600x1200)
T:KUF; 2001-08-01~2002-12-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
5
|
5
83911-60X52-000 COVER,DR SEALINGT:KUF; 2001-08-01~2002-12-01 |
83911-60X52-000 |
US $6.06 |
||
|
6
|
6
83701-65H00-P4Z
トリムアッシ,フロントドア,ライト(グレー)
グレー; T:KUF; 2001-08-01~2002-12-01 |
83701-65H00-P4Z |
— | ||
|
7
|
7
83702-65H00-P4Z
トリムアッシ,フロントドア,レフト(グレー)
グレー; T:KUF; 2001-08-01~2002-12-01 |
83702-65H00-P4Z |
— | ||
|
8
|
8
83851-77A51-000 WEATHERSTRIP,DR INRT:KUF; 2001-08-01~2002-12-01 |
83851-77A51-000 |
US $30.36 |
||
|
9
|
9
09409-08320-000 CLIPT:KUF; 2001-08-01~2002-12-01 |
09409-08320-000 |
US $1.67 |
||
|
10
|
10
83755-65H00-000 CAP,ARMRESTT:KUF; 2001-08-01~2002-12-01 |
83755-65H00-000 |
US $2.72 |
||
|
11
|
11
03542-06253-000
Screw
T:KUF; 2001-08-01~2002-12-01 |
03542-06253-000 |
— | ||
| replacement | |||||
|
11
|
11
03542-0625B-000 SCREWT:KUF; 2001-08-01~2002-12-01 |
03542-0625B-000 |
US $0.80 |
||
|
12
|
12
09148-06007-000 NUTT:KUF; 2001-08-01~2002-12-01 |
09148-06007-000 |
US $0.91 |
||
|
13
|
13
83795-77A50-5PK GARNISH,FR DR INR,Rブラック; T:KUF; 2001-08-01~2002-12-01 |
83795-77A50-5PK |
US $11.04 |
||
|
14
|
14
83796-77A50-5PK GARNISH,FR DR INR,Lブラック; T:KUF; 2001-08-01~2002-12-01 |
83796-77A50-5PK |
US $11.04 |
||
|
15
|
15
09409-08320-000 CLIPT:KUF; 2001-08-01~2002-12-01 |
09409-08320-000 |
US $1.67 |
||
|
16
|
16
81810-77A00-000 STOP,FRONT DOOR OPENT:KUF; 2001-08-01~2002-12-01 |
81810-77A00-000 |
US $31.83 |
||
|
17
|
17
81831-70B00-000 PIN,DOOR OPEN STOPPER BODYT:KUF; 2001-08-01~2002-12-01 |
81831-70B00-000 |
US $1.60 |
||
|
18
|
18
02162-06163-000
Screw
T:KUF; 2001-08-01~2002-12-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
02162-0616B-000 SCREWBolt, adjust T:KUF; 2001-08-01~2002-12-01 |
02162-0616B-000 |
from US $0.80 |
||
|
19
|
19
84641-79A01-000 WEATHERSTRIP,FR DR OPNG,RT:KUF; 2001-08-01~2002-12-01 |
84641-79A01-000 |
US $87.22 |
||
|
20
|
20
84651-79A01-000 WEATHERSTRIP,FR DR OPNG,LT:KUF; 2001-08-01~2002-12-01 |
84651-79A01-000 |
US $87.22 |
||
|
21
|
21
84644-50F00-000 CLIP,DR OPNG WEATHERSTRIPT:KUF; 2001-08-01~2002-12-01 |
84644-50F00-000 |
US $2.65 |
||
|
22
|
22
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower T:KUF; 2001-08-01~2002-12-01 |
82711-56B00-000 |
US $2.88 |
||
|
23
|
23
82712-50F00-000 STOPPER,DOORT:KUF; 2001-08-01~2002-12-01 |
82712-50F00-000 |
US $9.60 |
||
