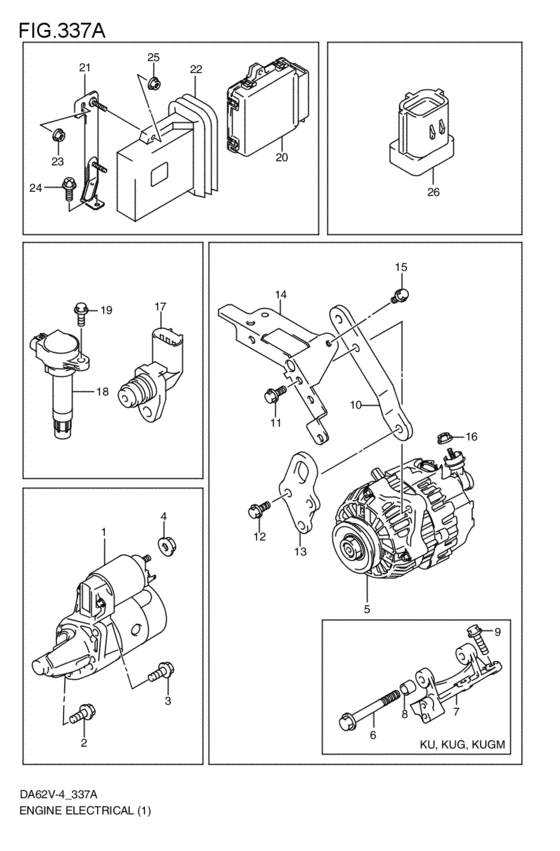

engine electrical (4V:T; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- KUF
- number of the gears
- 3AT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-78A10-000
MOTOR ASSY,STARTING
4V:T:AT; 2001-08-01~2002-12-01 |
31100-78A10-000 |
— | ||
|
2
|
2
01550-08303-000
Bolt
4V:T; 2001-08-01~2002-12-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0830B-000 Bolt4V:T; 2001-08-01~2002-12-01 |
01550-0830B-000 |
from US $1.06 |
||
|
2
|
2
01550-0830A-000 BOLTBolt, mount oil seal cover 4V:T; 2001-08-01~2002-12-01 |
01550-0830A-000 |
from US $1.12 |
||
|
3
|
3
01550-08353-000
Bolt, rear
4V:T:AT:4WD; 2001-08-01~2002-12-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0835B-000 BOLT4V:T:AT:4WD; 2001-08-01~2002-12-01 |
01550-0835B-000 |
from US $1.12 |
||
|
3
|
3
01550-0835A-000 BOLT4V:T:AT:4WD; 2001-08-01~2002-12-01 |
01550-0835A-000 |
from US $1.06 |
||
|
4
|
4
08316-10083-000
Nut
4V:T; 2001-08-01~2002-12-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT4V:T; 2001-08-01~2002-12-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31400-65H11-000
Generator assy
4V:T:AT; 2001-08-01~2002-12-01 |
31400-65H11-000 |
— | ||
| replacements | |||||
|
5
|
5
31400-65H12-000
GENERATOR ASSY
4V:T:AT; 2001-08-01~2002-12-01 |
31400-65H12-000 |
— | ||
|
5
|
5
31400-65H13-000
Generator Assy
4V:T:AT; 2001-08-01~2002-12-01 |
31400-65H13-000 |
— | ||
|
6
|
6
01550-10853-000
Bolt
4V:T; 2001-08-01~2002-12-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1085A-000 BOLT4V:T; 2001-08-01~2002-12-01 |
01550-1085A-000 |
US $1.76 |
||
|
10
|
10
11561-65H00-000 ARM,GENERATOR4V:T; 2001-08-01~2002-12-01 |
11561-65H00-000 |
US $11.89 |
||
|
11
|
11
09118-08107-000 BOLT(8X25)4V:T; 2001-08-01~2002-12-01 |
09118-08107-000 |
US $1.12 |
||
|
12
|
12
01550-08203-000
Bolt
4V:T; 2001-08-01~2002-12-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt4V:T; 2001-08-01~2002-12-01 |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket 4V:T; 2001-08-01~2002-12-01 |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
11851-65H00-000 HOOK,ENGINE4V:T; 2001-08-01~2002-12-01 |
11851-65H00-000 |
US $12.14 |
||
|
14
|
14
31614-65H20-000 BRACKET,GENERATOR COVER4V:T; 2001-08-01~2002-12-01 |
31614-65H20-000 |
US $12.14 |
||
|
15
|
15
01550-06123-000
Bolt
4V:T; 2001-08-01~2002-12-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp 4V:T; 2001-08-01~2002-12-01 |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT4V:T; 2001-08-01~2002-12-01 |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
08316-10063-000
Nut
4V:T; 2001-08-01~2002-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1006B-000 NUT4V:T; 2001-08-01~2002-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
33220-76G30-000 SENSOR ASSY,CAM POSITION4V:T; 2001-08-01~2002-12-01 |
33220-76G30-000 |
US $145.92 |
||
|
18
|
18
33400-76G01-000
コイルアッシ,イグニツシヨン(DENSO)
デンソー; 4V:T; 2001-08-01~2002-12-01 |
33400-76G01-000 |
— | ||
| replacement | |||||
|
18
|
18
33400-85K10-000 COIL ASSY,IGNITION DEデンソー; 4V:T; 2001-08-01~2002-12-01 |
33400-85K10-000 |
US $226.48 |
||
|
18
|
18
33400-76G11-000
Coil assy, ignition
ミツビシ; 4V:T; 2001-08-01~2002-12-01 |
33400-76G11-000 |
— | ||
| replacement | |||||
|
18
|
18
33400-85K10-000 COIL ASSY,IGNITION DEミツビシ; 4V:T; 2001-08-01~2002-12-01 |
33400-85K10-000 |
US $226.48 |
||
|
19
|
19
01550-06203-000
Bolt
4V:T; 2001-08-01~2002-12-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0620B-000 BOLTBolt, inspection cap 4V:T; 2001-08-01~2002-12-01 |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
33920-65H21-000
コントローラアッシ,インジェクション/AT
4V:T:AT:4WD; 2001-08-01~2002-12-01 |
33920-65H21-000 |
— | ||
|
21
|
21
33924-78A30-000
BRACKET,EPI CONT
4V:T; 2001-08-01~2002-12-01 |
33924-78A30-000 |
— | ||
|
22
|
22
33925-67H00-000 COVER,EPI CONT4V:T; 2002-10-01~2002-12-01 |
33925-67H00-000 |
US $18.11 |
||
|
22
|
22
33925-78A00-000
Cover, cont
4V:T; 2001-08-01~2002-10-01 |
33925-78A00-000 |
— | ||
| replacement | |||||
|
22
|
22
33925-67H00-000 COVER,EPI CONT4V:T; 2001-08-01~2002-10-01 |
33925-67H00-000 |
US $18.11 |
||
|
23
|
23
09159-06076-000 NUT4V:T; 2001-08-01~2002-12-01 |
09159-06076-000 |
from US $1.28 |
||
|
24
|
24
02162-06123-000
Bolt (6x12)
4V:T; 2001-08-01~2002-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt 4V:T; 2001-08-01~2002-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket 4V:T; 2001-08-01~2002-12-01 |
02162-0612A-000 |
from US $0.80 |
||
|
25
|
25
08316-10063-000
Nut
4V:T; 2001-08-01~2002-12-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT4V:T; 2001-08-01~2002-12-01 |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
33926-78AA0-000 RESISTOR,IGT NO.10マ-ク 10; 4V:T; 2001-08-01~2002-12-01 |
33926-78AA0-000 |
US $8 |
||
|
26
|
26
33926-78AB0-000 RESISTOR,IGT NO.11マ-ク 11; 4V:T; 2001-08-01~2002-12-01 |
33926-78AB0-000 |
US $9.35 |
||
|
26
|
26
33926-78A01-000 RESISTOR,IGT NO.Nマ-ク N; 4V:T; 2001-08-01~2002-12-01 |
33926-78A01-000 |
US $9.35 |
||
|
26
|
26
33926-78A10-000 RESISTOR,IGT NO.1マ-ク 1; 4V:T; 2001-08-01~2002-12-01 |
33926-78A10-000 |
US $9.35 |
||
|
26
|
26
33926-78A20-000 RESISTOR,IGT NO.2マ-ク 2; 4V:T; 2001-08-01~2002-12-01 |
33926-78A20-000 |
US $9.35 |
||
|
26
|
26
33926-78A30-000 RESISTOR,IGT NO.3マ-ク 3; 4V:T; 2001-08-01~2002-12-01 |
33926-78A30-000 |
US $9.35 |
||
|
26
|
26
33926-78A40-000 RESISTOR,IGT NO.4マ-ク 4; 4V:T; 2001-08-01~2002-12-01 |
33926-78A40-000 |
US $9.35 |
||
|
26
|
26
33926-78A50-000 RESISTOR,IGT NO.5マ-ク 5; 4V:T; 2001-08-01~2002-12-01 |
33926-78A50-000 |
US $9.35 |
||
|
26
|
26
33926-78A60-000 RESISTOR,IGT NO.6マ-ク 6; 4V:T; 2001-08-01~2002-12-01 |
33926-78A60-000 |
US $9.35 |
||
|
26
|
26
33926-78A70-000 RESISTOR,IGT NO.7マ-ク 7; 4V:T; 2001-08-01~2002-12-01 |
33926-78A70-000 |
US $6.65 |
||
|
26
|
26
33926-78A80-000 RESISTOR,IGT NO.8マ-ク 8; 4V:T; 2001-08-01~2002-12-01 |
33926-78A80-000 |
US $9.35 |
||
|
26
|
26
33926-78A90-000 RESISTOR,IGT NO.9マ-ク 9; 4V:T; 2001-08-01~2002-12-01 |
33926-78A90-000 |
US $9.35 |
||
