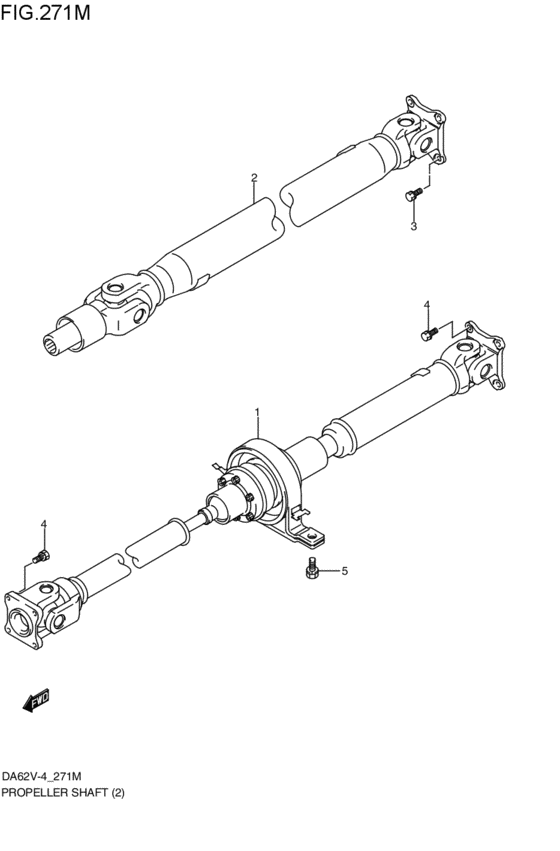

propeller shaft (4WD; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- KUF
- number of the gears
- 3AT
- body
- T
- air bag
- AB
- abs
- ABS-N
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-66H32-000
シャフトアッシ,フロントプロペラ
4WD:AT:T; 2001-08-01~2002-12-01 |
27101-66H32-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-66H34-000
New Genuine Part
4WD:AT:T; 2001-08-01~2002-12-01 |
27101-66H34-000 |
— | ||
|
2
|
2
27102-66H00-000
Shaft assy,rear propeller
4WD:AT:4V:T; 2001-08-01~2002-12-01 |
27102-66H00-000 |
— | ||
| replacement | |||||
|
2
|
2
27102-66H02-000
SHAFT ASSY,REAR PROPELLER
4WD:AT:4V:T; 2001-08-01~2002-12-01 |
27102-66H02-000 |
— | ||
|
3
|
3
09117-08095-000
Bolt (8x20)
4WD; 2001-08-01~2002-12-01 |
09117-08095-000 |
— | ||
| replacement | |||||
|
3
|
3
09117-08103-000 BOLT(8X18)4WD; 2001-08-01~2002-12-01 |
09117-08103-000 |
US $2.08 |
||
|
4
|
4
09117-08095-000
Bolt (8x20)
4WD; 2001-08-01~2002-12-01 |
09117-08095-000 |
— | ||
| replacement | |||||
|
4
|
4
09117-08103-000 BOLT(8X18)4WD; 2001-08-01~2002-12-01 |
09117-08103-000 |
US $2.08 |
||
|
5
|
5
09112-10002-000 BOLT(10X25)4WD; 2001-08-01~2002-12-01 |
09112-10002-000 |
US $19.90 |
||
