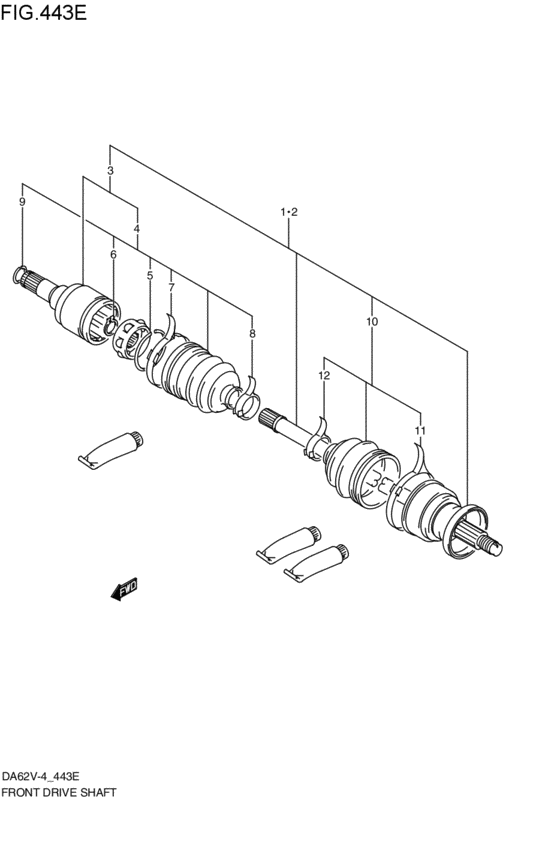

front-drive shaft (4WD; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- PAM
- number of the gears
- 3AT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-79A10-000
シャフトアッシ,フロントドライブ,ライト
4WD:(V,W); 2001-08-01~2002-12-01 |
44101-79A10-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-79A11-000 SHAFT ASSY,FRONT DRIVE,R4WD:(V,W); 2001-08-01~2002-12-01 |
44101-79A11-000 |
US $496.32 |
||
|
2
|
2
44102-79A10-000
シャフトアッシ,フロントドライブ,レフト
4WD:(V,W); 2001-08-01~2002-12-01 |
44102-79A10-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-79A11-000 SHAFT ASSY,FRONT DRIVE,L4WD:(V,W); 2001-08-01~2002-12-01 |
44102-79A11-000 |
US $496.32 |
||
|
3
|
3
44114-79A00-000
JOINT ASSY,DIFF SIDE
4WD; 2001-08-01~2002-12-01 |
44114-79A00-000 |
— | ||
| replacement | |||||
|
3
|
3
44114-79A01-000
JOINT ASSY,DIFF SIDE
4WD; 2001-08-01~2002-12-01 |
44114-79A01-000 |
— | ||
|
4
|
4
44119-79A00-000
Boot set,diff side
4WD; 2001-08-01~2002-12-01 |
44119-79A00-000 |
— | ||
| replacement | |||||
|
4
|
4
44119-67HA0-000 BOOT SET,DIFF SIDE4WD; 2001-08-01~2002-12-01 |
44119-67HA0-000 |
US $116.80 |
||
|
5
|
5
44112-78010-000 CIRCLIP4WD; 2001-08-01~2002-12-01 |
44112-78010-000 |
from US $5.26 |
||
|
6
|
6
44111-78010-000 RING,SNAP4WD; 2001-08-01~2002-12-01 |
44111-78010-000 |
US $2.80 |
||
|
7
|
7
44122-86010-000 BAND,BOOTClamp, differential side outer boot 4WD; 2001-08-01~2002-12-01 |
44122-86010-000 |
from US $9.02 |
||
|
8
|
8
44124-86011-000 BAND,BOOT4WD; 2001-08-01~2002-12-01 |
44124-86011-000 |
US $6.81 |
||
|
9
|
9
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 4WD; 2001-08-01~2002-12-01 |
09381-24001-000 |
from US $1.60 |
||
|
10
|
10
44118-79A00-000
BOOT SET,WHEEL SIDE
4WD; 2001-08-01~2002-12-01 |
44118-79A00-000 |
— | ||
| replacement | |||||
|
10
|
10
44118-79A01-000 BOOT SET,WHEEL SIDE4WD; 2001-08-01~2002-12-01 |
44118-79A01-000 |
US $164.80 |
||
|
11
|
11
44222-51F00-000 BAND,BOOT4WD; 2001-08-01~2002-12-01 |
44222-51F00-000 |
US $10.23 |
||
|
12
|
12
44124-86011-000 BAND,BOOT4WD; 2001-08-01~2002-12-01 |
44124-86011-000 |
US $6.81 |
||
