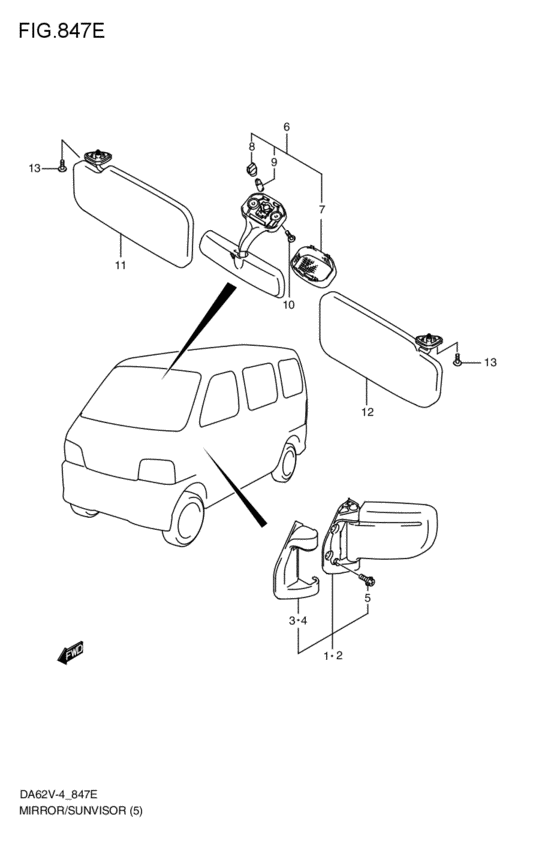

mirror / sun visor (PG; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- PG
- number of the gears
- 3AT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-79A50-Z2S
Mirror assy,out rear view,r
シルバ-; PG; 2001-08-01~2002-12-01 |
84701-79A50-Z2S |
— | ||
| replacement | |||||
|
1
|
1
84701-79A51-Z2S MIRROR ASSY,RR VIEW,Rシルバ-; PG; 2001-08-01~2002-12-01 |
84701-79A51-Z2S |
US $175.54 |
||
|
1
|
1
84701-79A50-Z2U
Mirror assy,out rear view,r
ブル-; PG; 2001-08-01~2002-12-01 |
84701-79A50-Z2U |
— | ||
| replacement | |||||
|
1
|
1
84701-79A51-Z2U MIRROR ASSY,RR VIEW,Rブル-; PG; 2001-08-01~2002-12-01 |
84701-79A51-Z2U |
US $175.54 |
||
|
1
|
1
84701-79A50-26U
Mirror assy,out rear view,r
ホワイト; PG; 2001-08-01~2002-12-01 |
84701-79A50-26U |
— | ||
| replacement | |||||
|
1
|
1
84701-79A51-26U MIRROR ASSY,RR VIEW,Rホワイト; PG; 2001-08-01~2002-12-01 |
84701-79A51-26U |
US $503.78 |
||
|
2
|
2
84702-79A50-Z2S
Mirror assy,out rear view,l
シルバ-; PG; 2001-08-01~2002-12-01 |
84702-79A50-Z2S |
— | ||
| replacement | |||||
|
2
|
2
84702-79A51-Z2S MIRROR ASSY,RR VIEW,Lシルバ-; PG; 2001-08-01~2002-12-01 |
84702-79A51-Z2S |
US $175.54 |
||
|
2
|
2
84702-79A50-Z2U
Mirror assy,out rear view,l
ブル-; PG; 2001-08-01~2002-12-01 |
84702-79A50-Z2U |
— | ||
| replacement | |||||
|
2
|
2
84702-79A51-Z2U MIRROR ASSY,RR VIEW,Lブル-; PG; 2001-08-01~2002-12-01 |
84702-79A51-Z2U |
US $175.54 |
||
|
2
|
2
84702-79A50-26U
Mirror assy,out rear view,l
ホワイト; PG; 2001-08-01~2002-12-01 |
84702-79A50-26U |
— | ||
| replacement | |||||
|
2
|
2
84702-79A51-26U
MIRROR ASSY,RR VIEW,L
ホワイト; PG; 2001-08-01~2002-12-01 |
84702-79A51-26U |
— | ||
|
3
|
3
84711-79A50-Z2S
COVER,OUT RR VIEW,R
シルバ-; PG; 2001-08-01~2002-12-01 |
84711-79A50-Z2S |
— | ||
|
3
|
3
84711-79A50-Z2U
COVER,OUT RR VIEW,R
ブル-; PG; 2001-08-01~2002-12-01 |
84711-79A50-Z2U |
— | ||
|
3
|
3
84711-79A50-26U
COVER,OUT RR VIEW,R
ホワイト; PG; 2001-08-01~2002-12-01 |
84711-79A50-26U |
— | ||
|
4
|
4
84731-79A50-Z2S
COVER,OUT RR VIEW,L
シルバ-; PG; 2001-08-01~2002-12-01 |
84731-79A50-Z2S |
— | ||
|
4
|
4
84731-79A50-Z2U
COVER,OUT RR VIEW,L
ブル-; PG; 2001-08-01~2002-12-01 |
84731-79A50-Z2U |
— | ||
|
4
|
4
84731-79A50-26U
COVER,OUT RR VIEW,L
ホワイト; PG; 2001-08-01~2002-12-01 |
84731-79A50-26U |
— | ||
|
5
|
5
02162-06163-000
Screw
PG; 2001-08-01~2002-12-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust PG; 2001-08-01~2002-12-01 |
02162-0616B-000 |
from US $0.96 |
||
|
6
|
6
84703-63H20-6GS
Mirror assy,inside rear view
グレ-; PG; 2001-08-01~2002-12-01 |
84703-63H20-6GS |
— | ||
| replacement | |||||
|
6
|
6
84703-68H01-6GS MIRROR ASSY,INS RR VIEW(GRAY)グレ-; PG; 2001-08-01~2002-12-01 |
84703-68H01-6GS |
US $108 |
||
|
7
|
7
36212-76G00-000 LENS,ROOM LAMPPG; 2001-08-01~2002-12-01 |
36212-76G00-000 |
from US $2.27 |
||
|
8
|
8
36218-74F00-000 SOCKETPG; 2001-08-01~2002-12-01 |
36218-74F00-000 |
from US $2.12 |
||
|
9
|
9
09471-12113-000 BULB(12V8W)PG; 2001-08-01~2002-12-01 |
09471-12113-000 |
from US $1.44 |
||
|
10
|
10
02142-06123-000
Screw
PG; 2001-08-01~2002-12-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02142-0612B-000 SCREWPG; 2001-08-01~2002-12-01 |
02142-0612B-000 |
from US $0.76 |
||
|
10
|
10
02142-0612A-000 SCREWPG; 2001-08-01~2002-12-01 |
02142-0612A-000 |
from US $0.80 |
||
|
11
|
11
84801-79A31-6GS
サンバイザアッシ,ライト(グレー)
グレ-; PG:4WD; 2001-08-01~2002-12-01 |
84801-79A31-6GS |
— | ||
| replacement | |||||
|
11
|
11
84801-79A3V-6GS
サンバイザアッシ,ライト(グレー)
グレ-; PG:4WD; 2001-08-01~2002-12-01 |
84801-79A3V-6GS |
— | ||
|
12
|
12
84802-79A21-6GS
SUNVISOR ASSY,L
グレ-; PG; 2001-08-01~2002-12-01 |
84802-79A21-6GS |
— | ||
|
13
|
13
03121-05203-000
Screw
PG; 2001-08-01~2002-12-01 |
03121-05203-000 |
— | ||
| replacement | |||||
|
13
|
13
03121-0520A-000 SCREWPG; 2001-08-01~2002-12-01 |
03121-0520A-000 |
US $10.30 |
||
