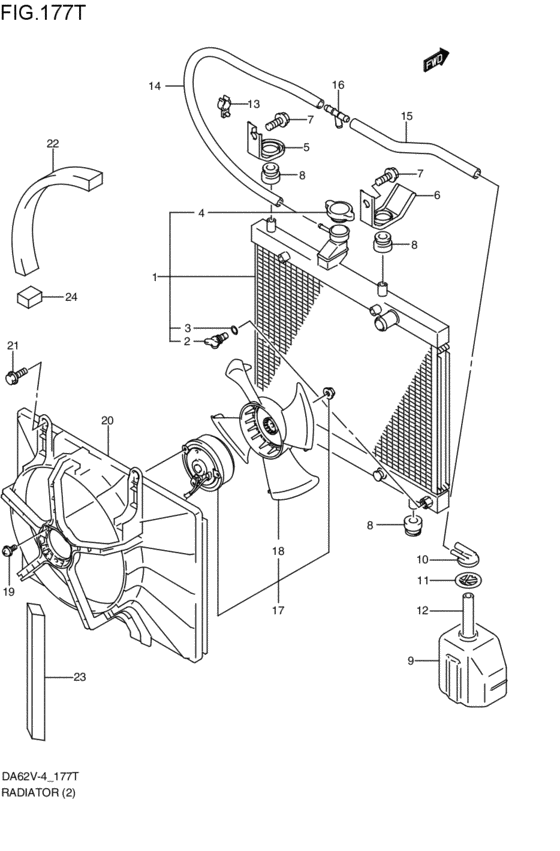

radiator (TURBO; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- PXM
- number of the gears
- 5MT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-65H00-000
ラジエータアッシ
TURBO; 2001-08-01~2002-12-01 |
17700-65H00-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-65H02-000 RADIATOR ASSYTURBO; 2001-08-01~2002-12-01 |
17700-65H02-000 |
US $450.56 |
||
|
2
|
2
17751-83100-000 PLUG,DRAINTURBO; 2001-08-01~2002-12-01 |
17751-83100-000 |
US $4.82 |
||
|
3
|
3
17759-83100-000 GASKET,DRAIN PLUGTURBO; 2001-08-01~2002-12-01 |
17759-83100-000 |
US $2.24 |
||
|
4
|
4
17730-67H00-000
キャップ,ラジエータ(1.1)
TURBO; 2001-08-01~2002-12-01 |
17730-67H00-000 |
— | ||
| replacement | |||||
|
4
|
4
17920-68HA0-000 CAP,RADIATOR 1.1TURBO; 2001-08-01~2002-12-01 |
17920-68HA0-000 |
US $12.80 |
||
|
5
|
5
17861-62H00-000
ブラケット,ラジエータアッパ,レフト
TURBO; 2001-08-01~2002-12-01 |
17861-62H00-000 |
— | ||
| replacement | |||||
|
5
|
5
17861-62H0V-000
ブラケット,ラジエータアッパ,レフト
TURBO; 2001-08-01~2002-12-01 |
17861-62H0V-000 |
— | ||
|
6
|
6
17862-62H00-000
ブラケット,ラジエータアッパ,ライト
TURBO; 2001-08-01~2002-12-01 |
17862-62H00-000 |
— | ||
| replacement | |||||
|
6
|
6
17862-62H0V-000
ブラケット,ラジエータアッパ,ライト
TURBO; 2001-08-01~2002-12-01 |
17862-62H0V-000 |
— | ||
|
7
|
7
02162-06123-000
Bolt (6x12)
TURBO; 2001-08-01~2002-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt TURBO; 2001-08-01~2002-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket TURBO; 2001-08-01~2002-12-01 |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
17879-77A10-000 MOUNTING,RDTRTURBO; 2001-08-01~2002-12-01 |
17879-77A10-000 |
US $3.68 |
||
|
9
|
9
17931-60H00-000
タンク,ウォータリザーブ
TURBO; 2001-08-01~2002-12-01 |
17931-60H00-000 |
— | ||
|
10
|
10
17932-81AA0-000 CAP,WATER RESERVE TANKTURBO; 2001-08-01~2002-12-01 |
17932-81AA0-000 |
US $3.50 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap TURBO; 2001-08-01~2002-12-01 |
17933-60B00-000 |
US $2.13 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>140; TURBO; 2001-08-01~2002-12-01 |
09352-70111-600 |
US $6.84 |
||
|
13
|
13
17936-78A00-000 CLAMP,3WAYTURBO; 2001-08-01~2002-12-01 |
17936-78A00-000 |
US $1.47 |
||
|
14
|
14
17938-78A00-000 HOSE,RSVR 3WAY TO RDTRTURBO; 2001-08-01~2002-12-01 |
17938-78A00-000 |
US $8.83 |
||
|
15
|
15
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>160; TURBO; 2001-08-01~2002-12-01 |
09352-70121-600 |
from US $5.93 |
||
|
16
|
16
09367-08004-000 3 WAY3 way (m8) TURBO; 2001-08-01~2002-12-01 |
09367-08004-000 |
from US $2.24 |
||
|
17
|
17
17110-60H50-000
ファン&モータセット,クーリング
TURBO; 2001-08-01~2002-12-01 |
17110-60H50-000 |
— | ||
| replacement | |||||
|
17
|
17
17110-60H51-000
New Genuine Part
TURBO; 2001-08-01~2002-12-01 |
17110-60H51-000 |
— | ||
|
18
|
18
17111-60H50-000
ファン,クーリング
TURBO; 2001-08-01~2002-12-01 |
17111-60H50-000 |
— | ||
|
19
|
19
17129-77A00-000 SCREW,FAN MOTORTURBO; 2001-08-01~2002-12-01 |
17129-77A00-000 |
US $2.10 |
||
|
20
|
20
17761-62H50-000
シュラウド,ファン
TURBO; 2001-08-01~2002-12-01 |
17761-62H50-000 |
— | ||
| replacement | |||||
|
20
|
20
17761-62H51-000
シュラウド,ファン
TURBO; 2001-08-01~2002-12-01 |
17761-62H51-000 |
— | ||
|
21
|
21
01550-06163-000
Bolt
TURBO; 2001-08-01~2002-12-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0616B-000 BOLTTURBO; 2001-08-01~2002-12-01 |
01550-0616B-000 |
from US $0.76 |
||
|
21
|
21
01550-0616A-000 BOLTTURBO; 2001-08-01~2002-12-01 |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
74221-63H00-000
シーリング,エア
TURBO; 2001-08-01~2002-12-01 |
74221-63H00-000 |
— | ||
| replacement | |||||
|
22
|
22
74221-63H01-000 SEALING,AIRTURBO; 2001-08-01~2002-12-01 |
74221-63H01-000 |
US $50.05 |
||
|
23
|
23
74222-63H00-000
シーリング,エア
TURBO; 2001-08-01~2002-12-01 |
74222-63H00-000 |
— | ||
| replacement | |||||
|
23
|
23
74222-63H01-000 SEALING,AIRTURBO; 2001-08-01~2002-12-01 |
74222-63H01-000 |
US $23.37 |
||
|
24
|
24
74223-63H00-000
シーリング,エア
TURBO; 2001-08-01~2002-12-01 |
74223-63H00-000 |
— | ||
