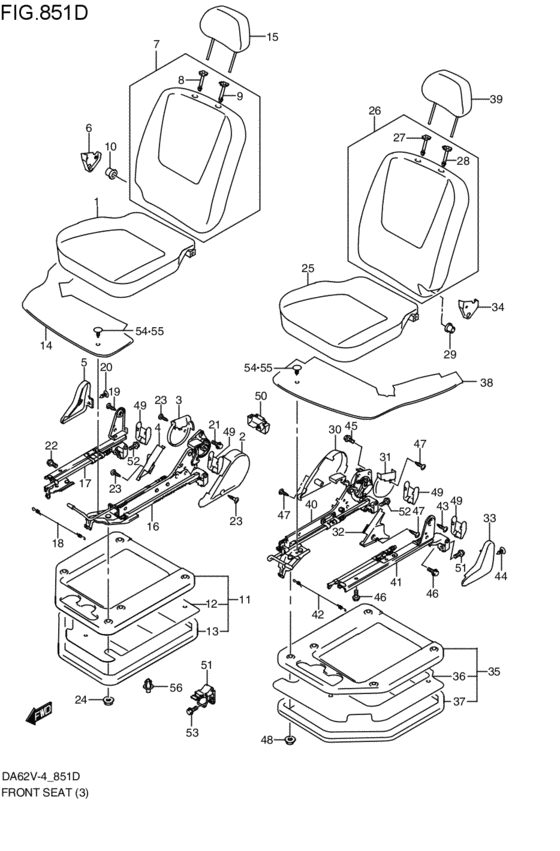

front seat (V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PX
- number of the gears
- 5MT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-66H00-FY4
クッションアッシ,フロント,ライト
グレー/ブルー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85101-66H00-FY4 |
— | ||
|
2
|
2
85241-79A00-P4Z COVER,FR,RECL INSIDE,Rグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85241-79A00-P4Z |
US $42.40 |
||
|
3
|
3
85242-79A00-P4Z COVER,FR RECL INS UPR,Rグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85242-79A00-P4Z |
US $10.05 |
||
|
4
|
4
85243-79A00-P4Z COVER,FR RECL INS LWR,Rグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85243-79A00-P4Z |
US $9.57 |
||
|
5
|
5
85281-79A00-P4Z
COVER,FR ADJUSTER OUTSIDE,R
グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85281-79A00-P4Z |
— | ||
|
6
|
6
85282-79A00-P4Z COVER,FR BACK HINGE,Rグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85282-79A00-P4Z |
US $8.46 |
||
|
7
|
7
85301-66H20-FY4
バックアッシ,フロント,ライト
グレー/ブルー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85301-66H20-FY4 |
— | ||
|
8
|
8
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
9
|
9
85840-81A00-P4Z
ガイド,ヘッドレストレイント(グレー)
グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85840-81A00-P4Z |
— | ||
| replacement | |||||
|
9
|
9
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
10
|
10
85293-61H00-000 BUSH,FR BACK FIXV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85293-61H00-000 |
US $3.72 |
||
|
11
|
11
85410-79A21-000 PANEL ASSY,FR RISER,RV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85410-79A21-000 |
US $230 |
||
|
12
|
12
85427-79A00-000 INSULATOR,FR RISER,RV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85427-79A00-000 |
US $50.78 |
||
|
13
|
13
85428-79A00-000 WEATHERSTRIP,FR RISERV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85428-79A00-000 |
US $66.40 |
||
|
14
|
14
85430-63H01-T21 CARPET,FR RISER,Rグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85430-63H01-T21 |
US $96.42 |
||
|
15
|
15
86401-76G00-FY5
ヘッドレストレイントアッシ
グレー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86401-76G00-FY5 |
— | ||
| replacement | |||||
|
15
|
15
86401-76G01-FY5
ヘッドレストレイントアッシ
グレー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86401-76G01-FY5 |
— | ||
|
16
|
16
86601-61HA1-P4Z ADJUSTER ASSY,FR INSIDE,Rグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86601-61HA1-P4Z |
US $274.16 |
||
|
17
|
17
86603-61HA0-000 ADJUSTER ASSY,FR OUTSIDE,RV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86603-61HA0-000 |
US $130.64 |
||
|
18
|
18
86850-77A00-000 WIRE,FR ADJUSTERWire, fr adjuster V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86850-77A00-000 |
US $9.46 |
||
|
19
|
19
09116-06109-000 BOLT(6X12)V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09116-06109-000 |
from US $4.10 |
||
|
20
|
20
09409-10304-P4Z CLIP(GRAY)グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09409-10304-P4Z |
US $14.40 |
||
|
21
|
21
01550-10203-000
Bolt
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1020A-000 BOLTBolt, bal sprocket V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01550-1020A-000 |
from US $0.96 |
||
|
22
|
22
01570-08203-000
Bolt
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
22
|
22
01570-0820B-000 BoltV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0820B-000 |
US $17.30 |
||
|
22
|
22
01570-0820A-000 BOLTV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0820A-000 |
from US $0.96 |
||
|
23
|
23
03241-05083-000
Screw
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
23
|
23
03241-0508A-000 SCREWV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
24
|
24
08316-10083-000
Nut
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1008B-000 NUTV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
08316-1008B-000 |
from US $0.76 |
||
|
25
|
25
85102-66H00-FY4
クッションアッシ,フロント,レフト
グレー/ブルー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85102-66H00-FY4 |
— | ||
|
26
|
26
85302-66H20-FY4
バックアッシ,フロント,レフト
グレー/ブルー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85302-66H20-FY4 |
— | ||
|
27
|
27
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
28
|
28
85840-81A00-P4Z
ガイド,ヘッドレストレイント(グレー)
グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85840-81A00-P4Z |
— | ||
| replacement | |||||
|
28
|
28
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
29
|
29
85293-61H00-000 BUSH,FR BACK FIXV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85293-61H00-000 |
US $3.72 |
||
|
30
|
30
85741-79A00-P4Z COVER,FR,RECL INSIDE,Lグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85741-79A00-P4Z |
US $42.40 |
||
|
31
|
31
85742-79A00-P4Z COVER,FR RECL INS UPR,Lグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85742-79A00-P4Z |
US $10.05 |
||
|
32
|
32
85743-79A00-P4Z COVER,FR RECL INS LWR,Lグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85743-79A00-P4Z |
US $9.57 |
||
|
33
|
33
85781-79A00-P4Z
COVER,FR ADJUSTER OUTSIDE,L
グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85781-79A00-P4Z |
— | ||
|
34
|
34
85782-79A00-P4Z COVER,FR BACK HINGE,Lグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85782-79A00-P4Z |
US $8.46 |
||
|
35
|
35
85910-79A31-000
PANEL ASSY,FR RISER,L
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85910-79A31-000 |
— | ||
|
36
|
36
85927-79A10-000 INSULATOR,FR RISOR,LV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85927-79A10-000 |
US $50.78 |
||
|
37
|
37
85428-79A10-000 WEATHERSTRIP,FR RISERWeatherstrip, fr riser V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85428-79A10-000 |
US $68 |
||
|
38
|
38
85930-63H11-T21 CARPET,FR RISER,Lグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85930-63H11-T21 |
US $96.42 |
||
|
39
|
39
86401-76G00-FY5
ヘッドレストレイントアッシ
グレー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86401-76G00-FY5 |
— | ||
| replacement | |||||
|
39
|
39
86401-76G01-FY5
ヘッドレストレイントアッシ
グレー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86401-76G01-FY5 |
— | ||
|
40
|
40
86801-77A01-P4Z ADJUSTER ASSY,FR INSIDE,Lグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86801-77A01-P4Z |
US $274.16 |
||
|
41
|
41
86803-79A00-000
ADJUSTER ASSY,FR OUTSIDE,L
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86803-79A00-000 |
— | ||
|
42
|
42
86850-77A00-000 WIRE,FR ADJUSTERWire, fr adjuster V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86850-77A00-000 |
US $9.46 |
||
|
43
|
43
09116-06109-000 BOLT(6X12)V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09116-06109-000 |
from US $4.10 |
||
|
44
|
44
09409-10304-P4Z CLIP(GRAY)グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09409-10304-P4Z |
US $14.40 |
||
|
45
|
45
01550-10203-000
Bolt
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
45
|
45
01550-1020A-000 BOLTBolt, bal sprocket V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01550-1020A-000 |
from US $0.96 |
||
|
46
|
46
01570-08203-000
Bolt
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
46
|
46
01570-0820B-000 BoltV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0820B-000 |
US $17.30 |
||
|
46
|
46
01570-0820A-000 BOLTV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0820A-000 |
from US $0.96 |
||
|
47
|
47
03241-05083-000
Screw
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
47
|
47
03241-0508A-000 SCREWV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
48
|
48
08316-10083-000
Nut
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
48
|
48
08316-1008B-000 NUTV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
08316-1008B-000 |
from US $0.76 |
||
|
49
|
49
85495-79A00-P4Z COVER,RRグレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85495-79A00-P4Z |
US $6.96 |
||
|
50
|
50
85496-79A00-P4Z COVER,SEAT BELT HARNESSグレー; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
85496-79A00-P4Z |
US $10.08 |
||
|
51
|
51
86650-77A01-000
ロックアッシ,フロント
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86650-77A01-000 |
— | ||
| replacement | |||||
|
51
|
51
86650-77A02-000 LOCK ASSY,FRV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
86650-77A02-000 |
US $18.58 |
||
|
52
|
52
01551-10203-000
Bolt, 3rd striker
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
52
|
52
01551-1020A-000 BoltV:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01551-1020A-000 |
US $17.30 |
||
|
53
|
53
01570-06123-000
Bolt
V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
53
|
53
01570-0612B-000 BOLTBolt, upper V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0612B-000 |
US $0.80 |
||
|
53
|
53
01570-0612A-000 BOLTBolt V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0612A-000 |
from US $0.80 |
||
|
54
|
54
09409-06310-6GS CLIP(GRAY)グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09409-06310-6GS |
from US $1.37 |
||
|
55
|
55
09409-06326-P4Z CLIP(GRAY)グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09409-06326-P4Z |
US $12.90 |
||
|
56
|
56
09409-06314-P4Z CLIP(GRAY)グレ-; V:PG,V:MT:(PX,PXM); 2001-08-01~2002-12-01 |
09409-06314-P4Z |
US $1.60 |
||
