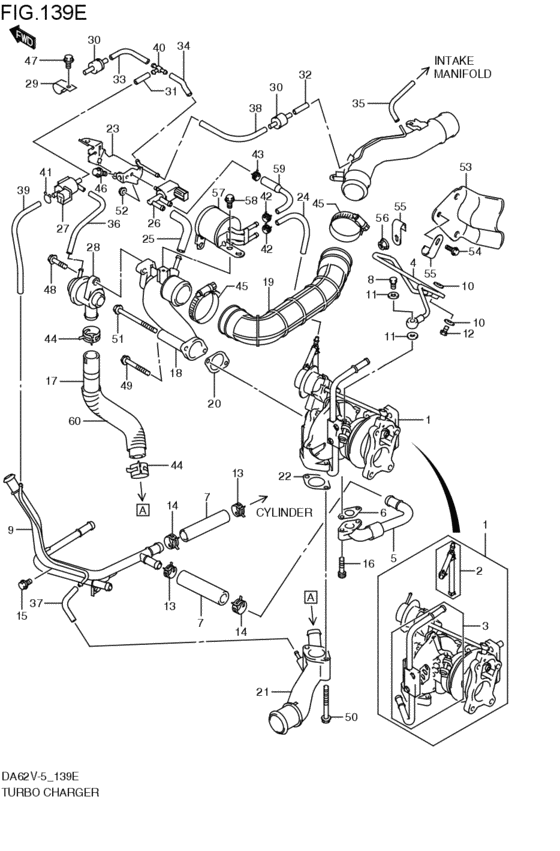

turbo charger (パイプ / ターボチャージャー; TURBO; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PX
- number of the gears
- 5MT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13900-65H62-000 CHARGER ASSY,TURBOTURBO; 2002-11-01~2003-10-01 |
13900-65H62-000 |
US $4,712 |
||
|
2
|
2
13913-65H60-000
ホースセット,ウエストゲート
TURBO; 2002-11-01~2003-10-01 |
13913-65H60-000 |
— | ||
|
3
|
3
13919-65H62-000
パイプセット,ウォータ
TURBO; 2002-11-01~2003-10-01 |
13919-65H62-000 |
— | ||
|
4
|
4
13930-65H50-000
パイプ,ターボオイルインテーク
TURBO; 2002-11-01~2003-10-01 |
13930-65H50-000 |
— | ||
|
5
|
5
13940-65H50-000
ジョイント,オイルドレーン
TURBO; 2002-11-01~2003-10-01 |
13940-65H50-000 |
— | ||
|
6
|
6
13945-70G50-000 GASKET,OIL DRAINGasket, oil drain TURBO; 2002-11-01~2003-10-01 |
13945-70G50-000 |
from US $4.68 |
||
|
7
|
7
13946-65H60-000
ホース,ターボオイルドレーン
TURBO; 2002-11-01~2003-10-01 |
13946-65H60-000 |
— | ||
|
8
|
8
13948-76G50-000 BOLT,UNION W/FLTR 8X20TURBO; 2002-11-01~2003-10-01 |
13948-76G50-000 |
US $20 |
||
|
9
|
9
13980-65H51-000
パイプ,オイルドレーン/ウォータ
TURBO; 2002-11-01~2003-10-01 |
13980-65H51-000 |
— | ||
|
10
|
10
09161-10009-000 WASHER(10X15X1.5)Lock washer TURBO; 2002-11-01~2003-10-01 |
09161-10009-000 |
from US $1.06 |
||
|
11
|
11
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) TURBO; 2002-11-01~2003-10-01 |
09168-08016-000 |
from US $1.22 |
||
|
12
|
12
09360-10031-000
Union bolt
TURBO; 2002-11-01~2003-10-01 |
09360-10031-000 |
— | ||
| replacement | |||||
|
12
|
12
09360-10031-XC0 UNIONTURBO; 2002-11-01~2003-10-01 |
09360-10031-XC0 |
US $12.64 |
||
|
13
|
13
09401-15404-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09401-15404-000 |
from US $1.06 |
||
|
14
|
14
09401-18404-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09401-18404-000 |
from US $1.33 |
||
|
15
|
15
01550-06123-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp TURBO; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
07130-06253-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
07130-06253-000 |
— | ||
| replacement | |||||
|
16
|
16
07130-0625B-000 BOLTTURBO; 2002-11-01~2003-10-01 |
07130-0625B-000 |
from US $0.91 |
||
|
17
|
17
13923-65H51-000
ホース,バルブ,インレット
TURBO; 2002-11-01~2003-06-01 |
13923-65H51-000 |
— | ||
|
17
|
17
13923-65H52-000
ホース,バルブ,インレット
TURBO; 2003-07-01~2003-10-01 |
13923-65H52-000 |
— | ||
|
18
|
18
13950-65H51-000
パイプ,ターボインレットエア
TURBO; 2002-11-01~2003-10-01 |
13950-65H51-000 |
— | ||
|
19
|
19
13952-65H50-000
ホース,ターボインレットエア
TURBO; 2002-11-01~2003-10-01 |
13952-65H50-000 |
— | ||
|
20
|
20
13955-56F00-000 GASKET,INTK AIR PIPEGasket, intk air pipe TURBO; 2002-11-01~2003-10-01 |
13955-56F00-000 |
from US $2.40 |
||
|
21
|
21
13960-65H50-000
パイプ,ターボアウトレットエア
TURBO; 2002-11-01~2003-06-01 |
13960-65H50-000 |
— | ||
| replacements | |||||
|
21
|
21
13923-65H52-000
ホース,バルブ,インレット
TURBO; 2002-11-01~2003-06-01 |
13923-65H52-000 |
— | ||
|
21
|
21
13960-65H51-000
パイプ,ターボアウトレットエア
TURBO; 2002-11-01~2003-06-01 |
13960-65H51-000 |
— | ||
|
21
|
21
13960-65H51-000
パイプ,ターボアウトレットエア
TURBO; 2003-07-01~2003-10-01 |
13960-65H51-000 |
— | ||
|
22
|
22
13965-56F00-000 GASKET,OUTLET AIR PIPEGasket, outlet air pipe TURBO; 2002-11-01~2003-10-01 |
13965-56F00-000 |
from US $2.09 |
||
|
23
|
23
18113-65H50-000
ブラケット,ウエストゲートコントロールバルブ
TURBO; 2002-11-01~2003-10-01 |
18113-65H50-000 |
— | ||
|
24
|
24
18114-65H60-000
ホース,ウエストゲートコントロールインレット,NO.1
TURBO; 2002-11-01~2003-10-01 |
18114-65H60-000 |
— | ||
|
25
|
25
18115-65H50-000
ホース,ウエストゲートコントロール,アウトレット
TURBO; 2002-11-01~2003-10-01 |
18115-65H50-000 |
— | ||
|
26
|
26
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge TURBO; 2002-11-01~2003-10-01 |
18117-52G00-000 |
from US $70.63 |
||
|
27
|
27
18117-60H80-000 VALVE ASSY,3WAY SOLENOID ABVTURBO; 2002-11-01~2003-10-01 |
18117-60H80-000 |
US $60.72 |
||
|
28
|
28
18119-65H50-000 VALVE,AIR BYPASSTURBO; 2002-11-01~2003-10-01 |
18119-65H50-000 |
US $120.70 |
||
|
29
|
29
18415-65H50-000 クランプTURBO; 2002-11-01~2003-10-01 |
18415-65H50-000 |
US $2.10 |
||
|
30
|
30
95569-78040-000 VALVE,CHECKValve, check TURBO; 2002-11-01~2003-10-01 |
95569-78040-000 |
from US $21.34 |
||
|
31
|
31
09355-35754-601
HOSE(3.5X7.5X601)
L:601>30; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
31
|
31
09355-35006-601 Hose(3.5X7.5X601)L:601>30; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
32
|
32
09355-35754-601
HOSE(3.5X7.5X601)
L:601>30; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
32
|
32
09355-35006-601 Hose(3.5X7.5X601)L:601>30; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
33
|
33
09355-35754-601
HOSE(3.5X7.5X601)
L:601>70; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
33
|
33
09355-35006-601 Hose(3.5X7.5X601)L:601>70; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
34
|
34
09355-35754-601
HOSE(3.5X7.5X601)
L:601>80; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
34
|
34
09355-35006-601 Hose(3.5X7.5X601)L:601>80; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
35
|
35
09355-35754-601
HOSE(3.5X7.5X601)
L:601>120; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
35
|
35
09355-35006-601 Hose(3.5X7.5X601)L:601>120; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
36
|
36
09355-35754-601
HOSE(3.5X7.5X601)
L:601>130; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
36
|
36
09355-35006-601 Hose(3.5X7.5X601)L:601>130; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
37
|
37
09355-35754-601
HOSE(3.5X7.5X601)
L:601>90; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
37
|
37
09355-35006-601 Hose(3.5X7.5X601)L:601>90; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
38
|
38
09355-35754-601
HOSE(3.5X7.5X601)
L:601>150; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
38
|
38
09355-35006-601 Hose(3.5X7.5X601)L:601>150; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
39
|
39
09355-35754-601
HOSE(3.5X7.5X601)
L:601>200; TURBO; 2002-11-01~2003-10-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
39
|
39
09355-35006-601 Hose(3.5X7.5X601)L:601>200; TURBO; 2002-11-01~2003-10-01 |
09355-35006-601 |
from US $5.78 |
||
|
40
|
40
09367-04002-000 CONNECTORTURBO; 2002-11-01~2003-10-01 |
09367-04002-000 |
US $4.80 |
||
|
41
|
41
09401-06405-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09401-06405-000 |
from US $1.12 |
||
|
42
|
42
09401-07402-000
Clip, boost hose
TURBO; 2002-11-01~2003-10-01 |
09401-07402-000 |
— | ||
| replacement | |||||
|
42
|
42
09401-08409-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09401-08409-000 |
from US $0.73 |
||
|
43
|
43
09401-08411-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09401-08411-000 |
from US $0.91 |
||
|
44
|
44
09401-24402-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09401-24402-000 |
US $25 |
||
|
45
|
45
09402-54208-000 CLAMPTURBO; 2002-11-01~2003-10-01 |
09402-54208-000 |
from US $8.91 |
||
|
46
|
46
01550-06123-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
46
|
46
01550-0612B-000 BOLTBolt, clamp TURBO; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
46
|
46
01550-0612A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
47
|
47
01550-06123-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
47
|
47
01550-0612B-000 BOLTBolt, clamp TURBO; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
47
|
47
01550-0612A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
48
|
48
01550-06253-000
Bolt (6x25)
TURBO; 2002-11-01~2003-10-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
48
|
48
01550-0625B-000 BOLTBolt, head cover TURBO; 2002-11-01~2003-10-01 |
01550-0625B-000 |
from US $0.91 |
||
|
48
|
48
01550-0625A-000 BOLTBolt TURBO; 2002-11-01~2003-10-01 |
01550-0625A-000 |
from US $0.96 |
||
|
49
|
49
01550-06453-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
49
|
49
01550-0645A-000 BoltTURBO; 2002-11-01~2003-10-01 |
01550-0645A-000 |
from US $0.96 |
||
|
50
|
50
01550-06553-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06553-000 |
— | ||
| replacement | |||||
|
50
|
50
01550-0655B-000 BoltBolt, hydraulic unit no.2 TURBO; 2002-11-01~2003-10-01 |
01550-0655B-000 |
from US $0.91 |
||
|
51
|
51
01550-06753-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06753-000 |
— | ||
| replacement | |||||
|
51
|
51
01550-0675A-000 BoltTURBO; 2002-11-01~2003-10-01 |
01550-0675A-000 |
US $1.12 |
||
|
52
|
52
08316-10063-000
Nut
TURBO; 2002-11-01~2003-10-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
52
|
52
08316-1006B-000 NUTTURBO; 2002-11-01~2003-10-01 |
08316-1006B-000 |
from US $0.76 |
||
|
53
|
53
13935-65H51-000
ブラケット,オイルパイプクランプ
TURBO; 2002-11-01~2003-10-01 |
13935-65H51-000 |
— | ||
| replacement | |||||
|
53
|
53
13935-65H5V-000
BRACKET,OIL PIPE CLAMP
TURBO; 2002-11-01~2003-10-01 |
13935-65H5V-000 |
— | ||
|
54
|
54
01550-06123-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
54
|
54
01550-0612B-000 BOLTBolt, clamp TURBO; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
54
|
54
01550-0612A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
55
|
55
13938-65H50-000
クランプ,オイルパイプ
TURBO; 2002-11-01~2003-10-01 |
13938-65H50-000 |
— | ||
| replacement | |||||
|
55
|
55
13938-65H5V-000
クランプ,オイルパイプ
TURBO; 2002-11-01~2003-10-01 |
13938-65H5V-000 |
— | ||
|
56
|
56
08316-10063-000
Nut
TURBO; 2002-11-01~2003-10-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
56
|
56
08316-1006B-000 NUTTURBO; 2002-11-01~2003-10-01 |
08316-1006B-000 |
from US $0.76 |
||
|
57
|
57
13920-65H60-000
チャンバ,ウエストゲートコントロールバルブ
TURBO; 2002-11-01~2003-10-01 |
13920-65H60-000 |
— | ||
|
58
|
58
01550-06123-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0612B-000 BOLTBolt, clamp TURBO; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
58
|
58
01550-0612A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
59
|
59
18116-65H60-000
ホース,ウエストゲートコントロールインレット,NO.2
TURBO; 2002-11-01~2003-10-01 |
18116-65H60-000 |
— | ||
|
60
|
60
13924-65H60-000
プロテクタ,バルブインレットホース
TURBO; 2003-04-01~2003-07-01 |
13924-65H60-000 |
— | ||
