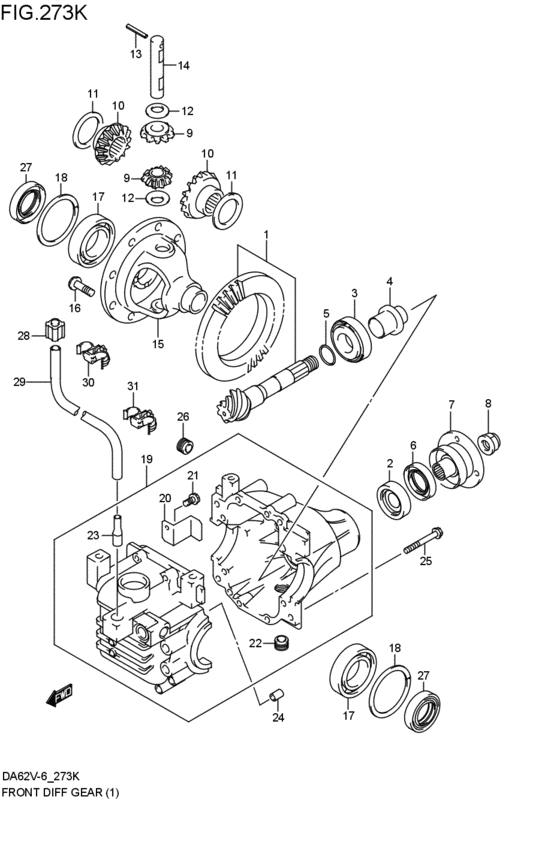

フロントデファレンシャルギヤ (4WD:TURBO; 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PX
- number of the gears
- 5MT
- body
- V
- air bag
- AB
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-79890-000
ベベルピニオン/ギヤセット
4WD:TURBO; 2003-08-01~2005-09-01 |
27300-79890-000 |
— | ||
|
2
|
2
27260-79A10-000 BEARING,DRIVE BEVEL PINION4WD:TURBO; 2003-08-01~2005-09-01 |
27260-79A10-000 |
US $28 |
||
|
3
|
3
27270-79A10-000 BEARING,BEVEL PINION4WD:TURBO; 2003-08-01~2005-09-01 |
27270-79A10-000 |
US $41.58 |
||
|
4
|
4
27315-67H00-000 SPACER,DRIVE BEVEL PINION4WD:TURBO; 2003-08-01~2005-09-01 |
27315-67H00-000 |
US $11.19 |
||
|
5
|
5
09181-25147-000 SHIM(25X32X1.18)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25147-000 |
US $16.20 |
||
|
5
|
5
09181-25149-000 SHIM(25X32X1.21)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25149-000 |
from US $4.76 |
||
|
5
|
5
09181-25150-000 SHIM(25X32X1.24)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25150-000 |
US $16.20 |
||
|
5
|
5
09181-25152-000 SHIM(25X32X1.27)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25152-000 |
US $16.20 |
||
|
5
|
5
09181-25153-000 SHIM(25X32X1.3)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25153-000 |
US $16.20 |
||
|
5
|
5
09181-25031-000 SHIM(25.5X31.5X0.3)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25031-000 |
US $16.20 |
||
|
5
|
5
09181-25146-000 SHIM(25X32X1.15)4WD:TURBO; 2003-08-01~2005-09-01 |
09181-25146-000 |
US $16.20 |
||
|
6
|
6
27283-79A00-000 SEAL,DRIVE BEVEL OIL4WD:TURBO; 2003-08-01~2005-09-01 |
27283-79A00-000 |
US $20 |
||
|
7
|
7
27110-66H00-000 FLANGE,UNIVERSAL JOINT4WD:TURBO; 2003-08-01~2005-09-01 |
27110-66H00-000 |
US $101.20 |
||
|
8
|
8
09159-16018-000 NUT4WD:TURBO; 2003-08-01~2005-09-01 |
09159-16018-000 |
US $2.24 |
||
|
9
|
9
27331-78FJ1-000 PINION,DIFFERENTIAL4WD:TURBO; 2003-08-01~2005-09-01 |
27331-78FJ1-000 |
US $36.43 |
||
|
10
|
10
27341-82001-000
Gear,differential
4WD:TURBO; 2003-08-01~2005-09-01 |
27341-82001-000 |
— | ||
| replacement | |||||
|
10
|
10
27341-76G12-000 GEAR,DIFF4WD:TURBO; 2003-08-01~2005-09-01 |
27341-76G12-000 |
US $64.77 |
||
|
11
|
11
09160-35002-000 WASHER(35X46X1)4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35002-000 |
from US $5.46 |
||
|
11
|
11
09160-35003-000 WASHER(35X46X1.1)4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35003-000 |
from US $2.24 |
||
|
11
|
11
09160-35004-000 WASHER(35X46X1.2)4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35004-000 |
US $2.24 |
||
|
11
|
11
09160-35006-000 WASHER(35X46X0.9)4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35006-000 |
from US $2.24 |
||
|
11
|
11
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35008-000 |
from US $6.70 |
||
|
11
|
11
09160-35009-000 WASHER(35X46X1.05)4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35009-000 |
from US $6.70 |
||
|
11
|
11
09160-35010-000 WASHER(35X46X1.15)4WD:TURBO; 2003-08-01~2005-09-01 |
09160-35010-000 |
from US $6.49 |
||
|
12
|
12
09164-15003-000 WASHER4WD:TURBO; 2003-08-01~2005-09-01 |
09164-15003-000 |
US $11.80 |
||
|
13
|
13
09205-05007-000 PIN,SPRING(5X36)4WD:TURBO; 2003-08-01~2005-09-01 |
09205-05007-000 |
US $1.76 |
||
|
14
|
14
27351-62B00-000 SHAFT,DIFF SIDE PINION4WD:TURBO; 2003-08-01~2005-09-01 |
27351-62B00-000 |
US $17.49 |
||
|
15
|
15
27411-79A10-000 CASE,DIFF4WD:TURBO; 2003-08-01~2005-09-01 |
27411-79A10-000 |
US $129.90 |
||
|
16
|
16
09103-10309-000 BOLT(10X16)4WD:TURBO; 2003-08-01~2005-09-01 |
09103-10309-000 |
US $1.67 |
||
|
17
|
17
09262-35057-000 BEARING(35X72X17)4WD:TURBO; 2003-08-01~2005-09-01 |
09262-35057-000 |
US $18.40 |
||
|
18
|
18
27453-53F10-245 SHIM,T:2.454WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-245 |
US $9.38 |
||
|
18
|
18
27453-53F10-250 SHIM,T:2.504WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-250 |
US $10.56 |
||
|
18
|
18
27453-53F10-255 SHIM,T:2.554WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-255 |
US $9.38 |
||
|
18
|
18
27453-53F10-260 SHIM,T:2.604WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-260 |
US $9.38 |
||
|
18
|
18
27453-53F10-265 SHIM,T:2.654WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-265 |
US $9.38 |
||
|
18
|
18
27453-53F10-270 SHIM,T:2.704WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-270 |
US $10.56 |
||
|
18
|
18
27453-53F10-275 SHIM,T:2.754WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-275 |
US $9.38 |
||
|
18
|
18
27453-53F10-280 SHIM,T:2.804WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-280 |
US $9.38 |
||
|
18
|
18
27453-53F10-285 SHIM,T:2.854WD:TURBO; 2003-08-01~2005-09-01 |
27453-53F10-285 |
US $9.38 |
||
|
19
|
19
27450-60871-000
CARRIER SET,DIFF
4WD:TURBO; 2003-08-01~2005-09-01 |
27450-60871-000 |
— | ||
|
20
|
20
27465-79A00-000 PLATE,OIL PROTECT4WD:TURBO; 2003-08-01~2005-09-01 |
27465-79A00-000 |
US $2.72 |
||
|
21
|
21
09103-06083-000
Bolt (6x12)
4WD:TURBO; 2003-08-01~2005-09-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
21
|
21
09103-06285-000 BOLT(6X12)Bolt (6x12) 4WD:TURBO; 2003-08-01~2005-09-01 |
09103-06285-000 |
from US $1.28 |
||
|
22
|
22
09246-16010-000
PLUG
4WD:TURBO; 2003-08-01~2005-09-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
22
|
22
09246-16021-000 Plug,t/m Oil Drain4WD:TURBO; 2003-08-01~2005-09-01 |
09246-16021-000 |
US $4.86 |
||
|
23
|
23
24714-56F00-000 UNION,T/F BREATHER4WD:TURBO; 2003-08-01~2005-09-01 |
24714-56F00-000 |
US $6.29 |
||
|
24
|
24
04211-09169-000 PIN4WD:TURBO; 2003-08-01~2005-09-01 |
04211-09169-000 |
from US $0.91 |
||
|
25
|
25
09103-08203-000 BOLT(8X70)4WD:TURBO; 2003-08-01~2005-09-01 |
09103-08203-000 |
US $1.52 |
||
|
26
|
26
09246-16010-000
PLUG
4WD:TURBO; 2003-08-01~2005-09-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
26
|
26
09246-16021-000 Plug,t/m Oil Drain4WD:TURBO; 2003-08-01~2005-09-01 |
09246-16021-000 |
US $4.86 |
||
|
27
|
27
27371-53F00-000 SEAL,DIFF SIDE OUTPUT OIL4WD:TURBO; 2003-08-01~2005-09-01 |
27371-53F00-000 |
US $20.80 |
||
|
28
|
28
27991-65D01-000 PLUG,BREATHER4WD:TURBO; 2003-08-01~2005-09-01 |
27991-65D01-000 |
US $1.92 |
||
|
29
|
29
09352-70103-600
HOSE(7X10.2X600)
L:600>450; 4WD:TURBO; 2003-08-01~2005-09-01 |
09352-70103-600 |
— | ||
| replacement | |||||
|
29
|
29
09352-70104-600 Hose(7X10.2X600)L:600>450; 4WD:TURBO; 2003-08-01~2005-09-01 |
09352-70104-600 |
from US $5.28 |
||
|
31
|
31
27405-79A10-000 CLAMP4WD:TURBO:MT; 2003-08-01~2005-09-01 |
27405-79A10-000 |
US $1.77 |
||
