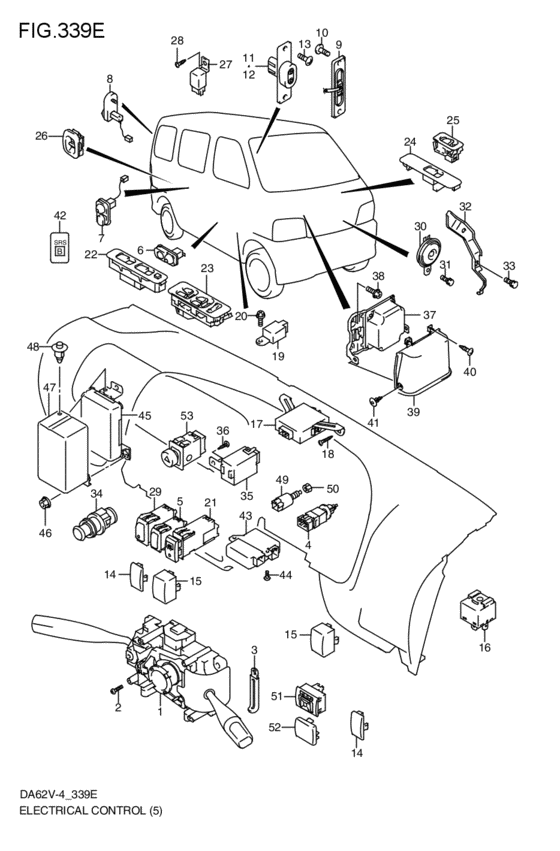

electrical control (V:(PG,PX,PXM); 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PX
- number of the gears
- 4AT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-78AD0-000
スイッチアッシ,コンビネーション
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37400-78AD0-000 |
— | ||
| replacement | |||||
|
1
|
1
37400-78AD1-000 SWITCH ASSY,COMBV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37400-78AD1-000 |
US $475.20 |
||
|
2
|
2
02112-05123-000
Screw 5x12
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREWV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
09404-06432-000
CLAMP(L:65)
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
3
|
3
09404-06039-000 Clamp(L:65)V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
09404-06039-000 |
from US $1.82 |
||
|
4
|
4
37740-75H20-000
スイッチアッシ,ストップランプ
V:(PX,PXM):4AT; 2002-01-01~2002-12-01 |
37740-75H20-000 |
— | ||
| replacement | |||||
|
4
|
4
37740-75H21-000 SWITCH ASSY,STOP LAMPV:(PX,PXM):4AT; 2002-01-01~2002-12-01 |
37740-75H21-000 |
from US $15.91 |
||
|
4
|
4
37740-80G00-000 SWITCH ASSY,STOP LAMPV:(PX,PXM):4AT; 2001-08-01~2002-03-01 |
37740-80G00-000 |
US $28.15 |
||
|
6
|
6
37670-76G00-000 SWITCH ASSY,DOORフロント ドア; V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37670-76G00-000 |
US $29.60 |
||
|
7
|
7
37670-79A00-000
スイッチアッシ,ドア
リヤ ドア; V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37670-79A00-000 |
— | ||
| replacement | |||||
|
7
|
7
37670-79A10-000 SWITCH ASSY,DOORリヤ ドア; V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37670-79A10-000 |
from US $13.79 |
||
|
8
|
8
37670-79A00-000
スイッチアッシ,ドア
バック ドア; V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37670-79A00-000 |
— | ||
| replacement | |||||
|
8
|
8
37670-79A10-000 SWITCH ASSY,DOORバック ドア; V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37670-79A10-000 |
from US $13.79 |
||
|
9
|
9
37677-79A10-000 SWITCH ASSY,JUNCTION BODYV:PX; 2001-08-01~2002-12-01 |
37677-79A10-000 |
US $55.57 |
||
|
10
|
10
02142-06103-000
Screw
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
02142-0610B-000 SCREWStopper, cl rlse cam shaft V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02142-0610B-000 |
from US $0.76 |
||
|
10
|
10
02142-0610A-000 SCREWV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02142-0610A-000 |
from US $0.80 |
||
|
11
|
11
37679-79A10-000 SWITCH ASSY,JUNCTION DOOR,RV:PX; 2001-08-01~2002-12-01 |
37679-79A10-000 |
US $93.10 |
||
|
12
|
12
37678-79A10-000 SWITCH ASSY,JUNCTION DOOR,LV:PX; 2001-08-01~2002-12-01 |
37678-79A10-000 |
US $93.10 |
||
|
13
|
13
02142-06103-000
Screw
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0610B-000 SCREWStopper, cl rlse cam shaft V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02142-0610B-000 |
from US $0.76 |
||
|
13
|
13
02142-0610A-000 SCREWV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
02142-0610A-000 |
from US $0.80 |
||
|
14
|
14
37285-75F10-000 CAP,OPTION SW HOLEV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37285-75F10-000 |
US $2.80 |
||
|
15
|
15
37285-75F00-000 CAP,OPTION SW HOLEV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37285-75F00-000 |
US $2.28 |
||
|
16
|
16
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
38610-76G00-000 |
US $56.80 |
||
|
21
|
21
37860-75F10-000 SWITCH ASSY,RR DEFOGGERV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37860-75F10-000 |
US $50.05 |
||
|
23
|
23
37990-82G21-P4Z
SWITCH ASSY,P/W MASTER
グレ-; V:PX; 2001-08-01~2002-12-01 |
37990-82G21-P4Z |
— | ||
| replacement | |||||
|
23
|
23
37990-82G22-P4Z Switch Assy,p/w Master(Gray)グレ-; V:PX; 2001-08-01~2002-12-01 |
37990-82G22-P4Z |
US $323.84 |
||
|
25
|
25
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)グレ-,サブスイッチ; V:PX; 2001-08-01~2002-12-01 |
37995-75F00-P4Z |
from US $47.05 |
||
|
26
|
26
37995-77A10-P4Z SWITCH ASSY,P/W REARグレ-; V:PX; 2001-08-01~2002-12-01 |
37995-77A10-P4Z |
US $69.18 |
||
|
27
|
27
38870-79A00-000 RELAY,POWER WINDOWV:PX; 2001-08-01~2002-12-01 |
38870-79A00-000 |
US $41.58 |
||
|
28
|
28
09139-05028-000 SCREW(5X14)V:PX; 2001-08-01~2002-12-01 |
09139-05028-000 |
US $11.40 |
||
|
29
|
29
74360-78A10-000 SWITCH,REAR HTRV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
74360-78A10-000 |
US $41.22 |
||
|
30
|
30
38500-63H00-000
ホーンアッシ,ローピツチ
V:(PX,PXM); 2001-08-01~2002-12-01 |
38500-63H00-000 |
— | ||
|
31
|
31
01570-08123-000
Bolt
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
31
|
31
01570-0812A-000 BoltV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
01570-0812A-000 |
US $14.40 |
||
|
32
|
32
38570-63H01-000
ブラケット,ホーン
V:(PX,PXM); 2001-08-01~2002-12-01 |
38570-63H01-000 |
— | ||
|
33
|
33
01570-08123-000
Bolt
V:(PX,PXM); 2001-08-01~2002-12-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
33
|
33
01570-0812A-000 BoltV:(PX,PXM); 2001-08-01~2002-12-01 |
01570-0812A-000 |
US $14.40 |
||
|
34
|
34
39400-54G00-000 LIGHTER ASSY,CIGARETTEV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
39400-54G00-000 |
US $22.26 |
||
|
35
|
35
37190-65H01-000
コントローラアッシ,キーレス/ドアロック
キーレスコントロールキノウアリ; V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37190-65H01-000 |
— | ||
|
36
|
36
03541-05163-000
Screw
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0516A-000 SCREWV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
03541-0516A-000 |
from US $0.68 |
||
|
37
|
37
38910-65H20-000
コントローラアッシ,エアバッグ
V:(PG,PX,PXM):AB; 2001-08-01~2002-12-01 |
38910-65H20-000 |
— | ||
|
38
|
38
09115-06001-000
Bolt, lh
V:(PG,PX,PXM):AB; 2001-08-01~2002-12-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
38
|
38
09115-06005-000 BOLT(6X16)V:(PG,PX,PXM):AB; 2001-08-01~2002-12-01 |
09115-06005-000 |
US $1.28 |
||
|
42
|
42
38918-76G00-000 LABEL,AIR BAG(MARK B)マークB; V:(PG,PX,PXM):AB; 2001-08-01~2002-12-01 |
38918-76G00-000 |
US $2.87 |
||
|
43
|
43
38720-78A01-000
コントローラアッシ,パワーステアリング
V:(PG,PX,PXM):PWST; 2001-08-01~2002-12-01 |
38720-78A01-000 |
— | ||
| replacement | |||||
|
43
|
43
38720-78A10-000
Control unit, Power steering
V:(PG,PX,PXM):PWST; 2001-08-01~2002-12-01 |
38720-78A10-000 |
— | ||
|
44
|
44
02142-05163-000
Bolt
V:(PG,PX,PXM):PWST; 2001-08-01~2002-12-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
44
|
44
02142-0516B-000 SCREWV:(PG,PX,PXM):PWST; 2001-08-01~2002-12-01 |
02142-0516B-000 |
from US $0.80 |
||
|
44
|
44
02142-0516A-000 SCREWScrew V:(PG,PX,PXM):PWST; 2001-08-01~2002-12-01 |
02142-0516A-000 |
from US $0.76 |
||
|
45
|
45
38880-65H01-000
コントローラアッシ,4AT
V:(PX,PXM):TURBO:AT:2WD; 2001-08-01~2002-12-01 |
38880-65H01-000 |
— | ||
| replacement | |||||
|
45
|
45
38880-65H02-000
コントローラアッシ,4AT
V:(PX,PXM):TURBO:AT:2WD; 2001-08-01~2002-12-01 |
38880-65H02-000 |
— | ||
|
46
|
46
09159-06076-000 NUTV:(PX,PXM):TURBO:AT; 2001-08-01~2002-12-01 |
09159-06076-000 |
from US $1.28 |
||
|
47
|
47
33925-76A00-000 COVER,AT CONTV:(PX,PXM):TURBO:AT; 2001-08-01~2002-12-01 |
33925-76A00-000 |
US $9.90 |
||
|
48
|
48
09409-06314-5PK CLIP(BLACK)ブラック; V:(PX,PXM):TURBO:AT; 2001-08-01~2002-12-01 |
09409-06314-5PK |
from US $1.46 |
||
|
51
|
51
37950-75F00-000 SWITCH ASSY,MIRRORV:(PX,PXM); 2001-08-01~2002-12-01 |
37950-75F00-000 |
US $60.05 |
||
|
53
|
53
37430-74G00-000
スイッチアッシ,ハザードウォーニング
V:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37430-74G00-000 |
— | ||
| replacement | |||||
|
53
|
53
37430-66H00-000 SWITCH ASSY,HAZARD WARNINGV:(PG,PX,PXM); 2001-08-01~2002-12-01 |
37430-66H00-000 |
US $40.48 |
||
