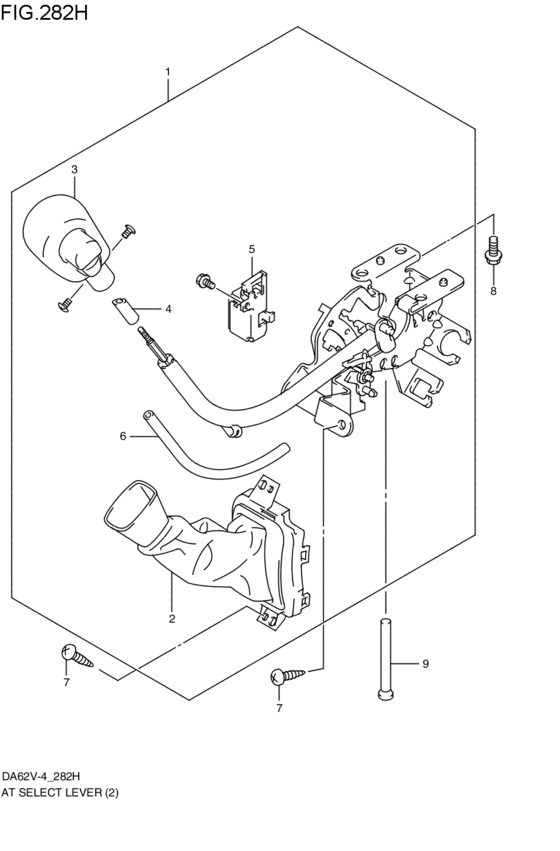

select lever (4AT; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PX
- number of the gears
- 4AT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-65H11-C48
SELECTOR ASSY,MANUAL
クローム/ブラック; 4AT; 2001-08-01~2002-12-01 |
28100-65H11-C48 |
— | ||
| replacement | |||||
|
1
|
1
28100-65H12-C48
SELECTOR ASSY,MANUAL
クローム/ブラック; 4AT; 2001-08-01~2002-12-01 |
28100-65H12-C48 |
— | ||
|
2
|
2
28150-65H10-000 INDICATOR ASSY,SELECT4AT; 2001-08-01~2002-12-01 |
28150-65H10-000 |
US $55.57 |
||
|
3
|
3
28160-65H10-C48
KNOB ASSY,SELECT LEVER
クローム/ブラック; 4AT; 2001-08-01~2002-12-01 |
28160-65H10-C48 |
— | ||
| replacement | |||||
|
3
|
3
28160-65H11-C48 KNOB ASSY,SELECT LEVERクローム/ブラック; 4AT; 2001-08-01~2002-12-01 |
28160-65H11-C48 |
US $75.07 |
||
|
4
|
4
28164-65H10-000
ガイド,デテントレリーズ
4AT; 2001-08-01~2002-12-01 |
28164-65H10-000 |
— | ||
| replacement | |||||
|
4
|
4
28164-65H11-000 GUIDE,DETENT RELEASE4AT; 2001-08-01~2002-12-01 |
28164-65H11-000 |
US $6.26 |
||
|
5
|
5
28610-65H10-000
ソレノイド,シフトロック
4AT; 2001-08-01~2002-12-01 |
28610-65H10-000 |
— | ||
| replacement | |||||
|
5
|
5
28610-65H11-000 SOLENOID,SHIFT LOCK4AT; 2001-08-01~2002-12-01 |
28610-65H11-000 |
US $76.54 |
||
|
6
|
6
28118-64B61-000 TUBE,SWITCH WIRE HARNESS4AT; 2001-08-01~2002-12-01 |
28118-64B61-000 |
US $1.88 |
||
|
7
|
7
03541-05163-000
Screw
4AT; 2001-08-01~2002-12-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREW4AT; 2001-08-01~2002-12-01 |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
01570-08203-000
Bolt
4AT; 2001-08-01~2002-12-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0820B-000 Bolt4AT; 2001-08-01~2002-12-01 |
01570-0820B-000 |
US $17.30 |
||
|
8
|
8
01570-0820A-000 BOLT4AT; 2001-08-01~2002-12-01 |
01570-0820A-000 |
from US $0.96 |
||
|
9
|
9
28620-65H10-000 LEVER,SOL MANUAL CANCEL4AT; 2001-08-01~2002-12-01 |
28620-65H10-000 |
US $3.72 |
||
