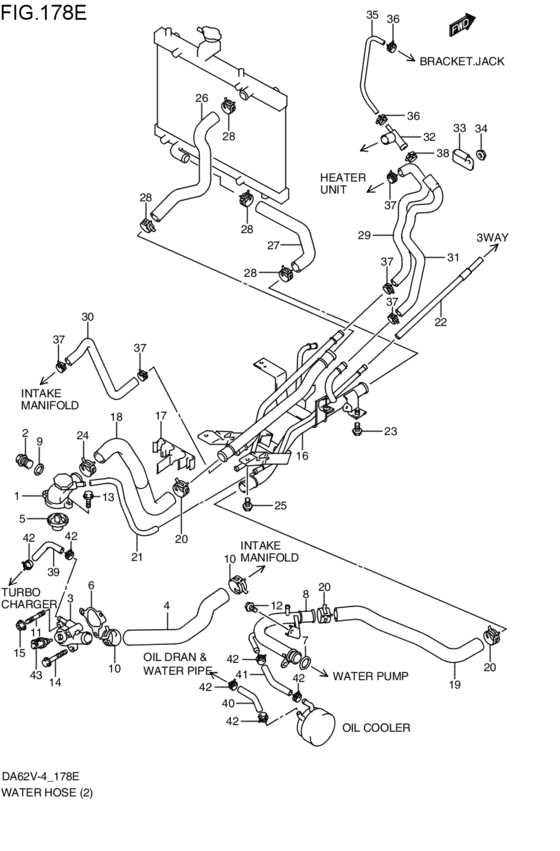

water hose (TURBO; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PX
- number of the gears
- 4AT
- body
- V
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17560-65H00-000
キャップ,ウォータサーモスタツト
TURBO; 2001-08-01~2002-12-01 |
17560-65H00-000 |
— | ||
| replacement | |||||
|
1
|
1
17560-65H01-000 CAP,WATER THERMOSTATTURBO; 2001-08-01~2002-12-01 |
17560-65H01-000 |
US $201.60 |
||
|
2
|
2
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover TURBO; 2001-08-01~2002-12-01 |
17568-50F00-000 |
from US $2.08 |
||
|
3
|
3
17570-65H50-000
キャップ,ウォータ,アウトレット
TURBO; 2001-08-01~2002-12-01 |
17570-65H50-000 |
— | ||
| replacement | |||||
|
3
|
3
17570-68H50-000
キャップ,ウォータアウトレット
TURBO; 2001-08-01~2002-12-01 |
17570-68H50-000 |
— | ||
|
4
|
4
17571-65H10-000 HOSE,WATER ENG OUTLETTURBO; 2001-08-01~2002-12-01 |
17571-65H10-000 |
US $25.39 |
||
|
5
|
5
17670-76A01-000
Thermostat,water(82?c)
TURBO; 2001-08-01~2002-12-01 |
17670-76A01-000 |
— | ||
| replacement | |||||
|
5
|
5
17670-76A02-000 THERMOSTAT,WATER 82 DEGTURBO; 2001-08-01~2002-12-01 |
17670-76A02-000 |
from US $17.75 |
||
|
6
|
6
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case TURBO; 2001-08-01~2002-12-01 |
17699-73G01-000 |
from US $3.74 |
||
|
7
|
7
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe TURBO; 2001-08-01~2002-12-01 |
17849-53E00-000 |
from US $1.52 |
||
|
8
|
8
17850-65H50-000
パイプ,ウォータ,インレット
TURBO; 2001-08-01~2002-12-01 |
17850-65H50-000 |
— | ||
| replacement | |||||
|
8
|
8
17850-65H51-000
パイプ,ウォータインレット
TURBO; 2001-08-01~2002-12-01 |
17850-65H51-000 |
— | ||
|
9
|
9
09168-06026-000 GASKET(6.4X11.5X0.8)TURBO; 2001-08-01~2002-12-01 |
09168-06026-000 |
from US $0.91 |
||
|
10
|
10
17859-65H00-000 CLIP,WTR HOSETURBO; 2002-02-01~2002-12-01 |
17859-65H00-000 |
US $3.46 |
||
|
10
|
10
09401-31406-000 CLIPTURBO; 2001-08-01~2002-01-01 |
09401-31406-000 |
US $3.04 |
||
|
11
|
11
01421-08253-000
Stud bolt, no.2
TURBO; 2001-08-01~2002-12-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-0825A-000 BOLT,STUDTURBO; 2001-08-01~2002-12-01 |
01421-0825A-000 |
from US $1.12 |
||
|
12
|
12
01550-06123-000
Bolt
TURBO; 2001-08-01~2002-12-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0612B-000 BOLTBolt, clamp TURBO; 2001-08-01~2002-12-01 |
01550-0612B-000 |
from US $0.76 |
||
|
12
|
12
01550-0612A-000 BOLTTURBO; 2001-08-01~2002-12-01 |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
01550-08253-000
Bolt, rear
TURBO; 2001-08-01~2002-12-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825B-000 BOLTTURBO; 2001-08-01~2002-12-01 |
01550-0825B-000 |
from US $0.96 |
||
|
13
|
13
01550-0825A-000 BOLTTURBO; 2001-08-01~2002-12-01 |
01550-0825A-000 |
from US $1.06 |
||
|
14
|
14
01550-08503-000
Bolt
TURBO; 2001-08-01~2002-12-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0850B-000 BoltTURBO; 2001-08-01~2002-12-01 |
01550-0850B-000 |
from US $1.22 |
||
|
15
|
15
08316-10083-000
Nut
TURBO; 2001-08-01~2002-12-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUTTURBO; 2001-08-01~2002-12-01 |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
17820-65H30-000
パイプ,ウォータフロア
TURBO:AT; 2001-08-01~2002-12-01 |
17820-65H30-000 |
— | ||
| replacement | |||||
|
16
|
16
17820-65H32-000
パイプ,ウォータフロア
TURBO:AT; 2001-08-01~2002-12-01 |
17820-65H32-000 |
— | ||
|
17
|
17
17844-65H00-000 CLAMP,WATER HOSETURBO; 2001-08-01~2002-12-01 |
17844-65H00-000 |
US $3.50 |
||
|
18
|
18
17847-65H00-000 HOSE,RADIATOR INLET ENGTURBO; 2001-08-01~2002-12-01 |
17847-65H00-000 |
US $15.35 |
||
|
19
|
19
17857-65H00-000
ホース,ラジエータアウトレット,エンジン
TURBO; 2001-08-01~2002-12-01 |
17857-65H00-000 |
— | ||
|
20
|
20
09402-32502-000 CLAMPTURBO; 2001-08-01~2002-12-01 |
09402-32502-000 |
US $62.90 |
||
|
21
|
21
17939-65H00-000
ホース,リザーバ(キャップツーパイプ)
キャップ ツー パイプ; TURBO; 2001-08-01~2002-12-01 |
17939-65H00-000 |
— | ||
|
22
|
22
17937-65H00-000
ホース,リザーバ(パイプツー3ウェイ)
パイプ ツー 3ウェイ; TURBO; 2001-08-01~2002-12-01 |
17937-65H00-000 |
— | ||
|
23
|
23
09116-06165-000 BOLT(6X16)Bolt, joint TURBO; 2001-08-01~2002-12-01 |
09116-06165-000 |
from US $4.13 |
||
|
24
|
24
09401-31406-000 CLIPTURBO; 2001-08-01~2002-12-01 |
09401-31406-000 |
US $3.04 |
||
|
25
|
25
02162-06123-000
Bolt (6x12)
TURBO; 2001-08-01~2002-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
02162-0612B-000 SCREWBolt TURBO; 2001-08-01~2002-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
25
|
25
02162-0612A-000 SCREWBolt, bracket TURBO; 2001-08-01~2002-12-01 |
02162-0612A-000 |
from US $0.80 |
||
|
26
|
26
17846-62H00-000 HOSE,RADIATOR INLETTURBO; 2001-08-01~2002-12-01 |
17846-62H00-000 |
US $23 |
||
|
27
|
27
17856-62H00-000 HOSE,RADIATOR OUTLETTURBO; 2001-08-01~2002-12-01 |
17856-62H00-000 |
US $46.40 |
||
|
28
|
28
09402-32502-000 CLAMPTURBO; 2001-08-01~2002-12-01 |
09402-32502-000 |
US $62.90 |
||
|
29
|
29
17873-62H01-000 HOSE,HEATER INLETTURBO; 2001-08-01~2002-12-01 |
17873-62H01-000 |
US $18 |
||
|
30
|
30
17874-65H00-000
ホース,ヒータインレット,エンジン
TURBO; 2001-08-01~2002-12-01 |
17874-65H00-000 |
— | ||
|
31
|
31
17875-62H01-000 HOSE,HEATER OUTLETTURBO; 2001-08-01~2002-12-01 |
17875-62H01-000 |
US $17.37 |
||
|
32
|
32
17880-78A01-000 JOINT,HEATERTURBO; 2001-08-01~2002-12-01 |
17880-78A01-000 |
from US $10.64 |
||
|
33
|
33
17889-62H00-000 CLAMP,HEATER HOSETURBO; 2001-08-01~2002-12-01 |
17889-62H00-000 |
US $3.90 |
||
|
34
|
34
09159-06076-000 NUTTURBO; 2001-08-01~2002-12-01 |
09159-06076-000 |
from US $1.28 |
||
|
35
|
35
09352-50901-600 HOSE(5X9X600)Hose, lubrication no.2 L:600>270; TURBO; 2001-08-01~2002-12-01 |
09352-50901-600 |
from US $6.54 |
||
|
36
|
36
09401-08411-000 CLIPTURBO; 2001-08-01~2002-12-01 |
09401-08411-000 |
from US $0.91 |
||
|
37
|
37
09401-18403-000 CLIPClip, heater hose TURBO; 2001-08-01~2002-12-01 |
09401-18403-000 |
US $1.92 |
||
|
38
|
38
09401-20405-000 CLIPClip, tank TURBO; 2001-08-01~2002-12-01 |
09401-20405-000 |
from US $5.56 |
||
|
39
|
39
17971-65H50-000
ホース,エンジンアウトレットツーターボ
TURBO; 2001-08-01~2002-12-01 |
17971-65H50-000 |
— | ||
|
40
|
40
17972-65H50-000
ホース,ターボツーオイルクーラ
TURBO; 2001-08-01~2002-12-01 |
17972-65H50-000 |
— | ||
|
41
|
41
09356-90161-600 HOSE(9X16X600)L:600>95; TURBO; 2001-08-01~2002-12-01 |
09356-90161-600 |
from US $22.05 |
||
|
42
|
42
09401-14405-000 CLIPTURBO; 2001-08-01~2002-12-01 |
09401-14405-000 |
US $12.50 |
||
|
43
|
43
13650-50F10-000 Sensor,water TempTURBO; 2001-08-01~2002-12-01 |
13650-50F10-000 |
from US $65.93 |
||
