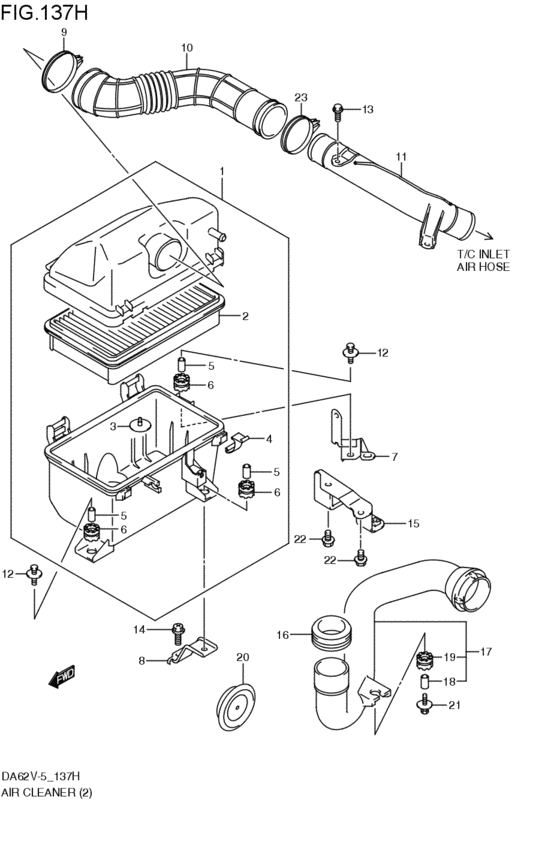

air cleaner (TURBO; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PX
- number of the gears
- 4AT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-65H01-000
クリーナアッシ,エア
TURBO; 2002-11-01~2003-10-01 |
13700-65H01-000 |
— | ||
|
2
|
2
13780-77A00-000 ELEMENT,AIR CLEANERTURBO; 2002-11-01~2003-10-01 |
13780-77A00-000 |
US $28.80 |
||
|
3
|
3
13681-44E00-000 VALVE,DRAINTURBO; 2002-11-01~2003-10-01 |
13681-44E00-000 |
US $2.94 |
||
|
4
|
4
13755-80GA0-000 CLIP,AIR CLEANER CASETURBO; 2002-11-01~2003-10-01 |
13755-80GA0-000 |
US $4.32 |
||
|
5
|
5
13877-65D00-000 COLLAR,7.6X10X19.3TURBO; 2002-11-01~2003-10-01 |
13877-65D00-000 |
US $3.04 |
||
|
6
|
6
13878-65D00-000 CUSHION,12.5X22X19.5TURBO; 2002-11-01~2003-10-01 |
13878-65D00-000 |
US $2.74 |
||
|
7
|
7
13810-65H10-000
ブラケット,エアクリーナ,NO.2
TURBO; 2002-11-01~2003-10-01 |
13810-65H10-000 |
— | ||
|
8
|
8
13811-65H00-000
ブラケット,エアクリーナ,NO.1
TURBO; 2002-11-01~2003-10-01 |
13811-65H00-000 |
— | ||
|
9
|
9
13875-75F00-000 CLAMP,AIR CLEANER HOSEClamp (clnr) TURBO; 2002-11-01~2003-10-01 |
13875-75F00-000 |
US $8.32 |
||
|
10
|
10
13881-65H50-000
ホース,エアクリーナ,アウトレット
TURBO; 2002-11-01~2003-10-01 |
13881-65H50-000 |
— | ||
|
11
|
11
13890-65H50-000
パイプ,エアクリーナ,アウトレット
TURBO; 2002-11-01~2003-10-01 |
13890-65H50-000 |
— | ||
|
12
|
12
09116-06172-000 BOLT(6X30)Bolt (6x30) TURBO; 2002-11-01~2003-10-01 |
09116-06172-000 |
from US $1.44 |
||
|
13
|
13
01550-06163-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
TURBO; 2002-11-01~2003-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt TURBO; 2002-11-01~2003-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket TURBO; 2002-11-01~2003-10-01 |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
13765-65H01-000
ブラケット,レゾネータ
TURBO; 2002-11-01~2003-10-01 |
13765-65H01-000 |
— | ||
|
16
|
16
13766-78A00-000 GROMMET,RESONATORTURBO; 2002-11-01~2003-10-01 |
13766-78A00-000 |
US $4.12 |
||
|
17
|
17
13870-65H51-000
パイプアッシ,エアクリーナサクション
TURBO; 2002-11-01~2003-10-01 |
13870-65H51-000 |
— | ||
|
18
|
18
13877-65D00-000 COLLAR,7.6X10X19.3TURBO; 2002-11-01~2003-10-01 |
13877-65D00-000 |
US $3.04 |
||
|
19
|
19
13878-65D00-000 CUSHION,12.5X22X19.5TURBO; 2002-11-01~2003-10-01 |
13878-65D00-000 |
US $2.74 |
||
|
20
|
20
13879-65H00-000
CAP,FRAME EXTENSION
TURBO; 2002-11-01~2003-10-01 |
13879-65H00-000 |
— | ||
|
21
|
21
09116-06172-000 BOLT(6X30)Bolt (6x30) TURBO; 2002-11-01~2003-10-01 |
09116-06172-000 |
from US $1.44 |
||
|
22
|
22
01550-06123-000
Bolt
TURBO; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BOLTBolt, clamp TURBO; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BOLTTURBO; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
09402-54208-000 CLAMPTURBO; 2002-11-01~2003-10-01 |
09402-54208-000 |
from US $8.91 |
||
