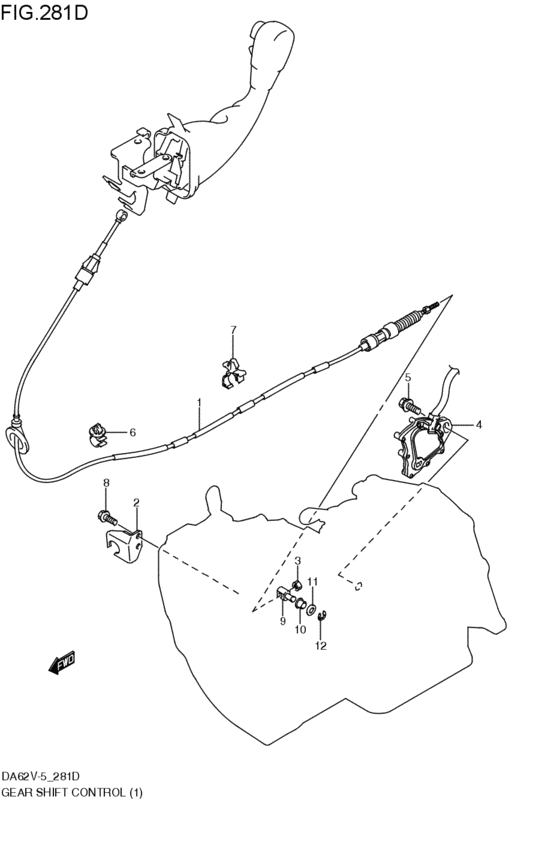

gearlever control (4AT; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PX
- number of the gears
- 4AT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28210-65H10-000
ケーブルアッシ,セレクト
4AT; 2002-11-01~2003-10-01 |
28210-65H10-000 |
— | ||
|
2
|
2
28221-65H10-000 BRACKET,SELECT CABLE4AT; 2002-11-01~2003-10-01 |
28221-65H10-000 |
US $7.95 |
||
|
3
|
3
08310-00063-000
Nut
4AT; 2002-11-01~2003-10-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0006B-000 NUTNut gear shift link rod 4AT; 2002-11-01~2003-10-01 |
08310-0006B-000 |
from US $0.76 |
||
|
3
|
3
08310-0006A-000 NUT4AT; 2002-11-01~2003-10-01 |
08310-0006A-000 |
from US $0.76 |
||
|
4
|
4
37720-78A01-000
SWITCH ASSY,SHIFT
4AT; 2002-11-01~2003-10-01 |
37720-78A01-000 |
— | ||
| replacement | |||||
|
4
|
4
37720-78A02-000 Switch Assy,Shift4AT; 2002-11-01~2003-10-01 |
37720-78A02-000 |
US $171.76 |
||
|
5
|
5
01580-08403-000
ボルト
4AT; 2002-11-01~2003-10-01 |
01580-08403-000 |
— | ||
| replacement | |||||
|
5
|
5
01580-0840A-000 Bolt4AT; 2002-11-01~2003-10-01 |
01580-0840A-000 |
from US $3.33 |
||
|
6
|
6
09403-08314-000 CLAMP4AT; 2002-11-01~2003-10-01 |
09403-08314-000 |
US $20.60 |
||
|
7
|
7
23915-78A20-000 CLAMP,CABLEClamp, throttle cable 4AT; 2002-11-01~2003-10-01 |
23915-78A20-000 |
US $1.60 |
||
|
8
|
8
28229-78A10-000 Bolt4AT; 2002-11-01~2003-10-01 |
28229-78A10-000 |
US $1.51 |
||
|
9
|
9
28291-78233-000 JOINT,CABLE4AT; 2002-11-01~2003-10-01 |
28291-78233-000 |
US $12.32 |
||
|
10
|
10
09305-08012-000 BUSH4AT; 2002-11-01~2003-10-01 |
09305-08012-000 |
US $1.28 |
||
|
11
|
11
08322-01083-000
WASHER
4AT; 2002-11-01~2003-10-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
11
|
11
08322-0108B-000 WASHER4AT; 2002-11-01~2003-10-01 |
08322-0108B-000 |
from US $0.80 |
||
|
11
|
11
08322-0108A-000 WASHER4AT; 2002-11-01~2003-10-01 |
08322-0108A-000 |
from US $0.80 |
||
|
12
|
12
08332-11063-000
E ring
4AT; 2002-11-01~2003-10-01 |
08332-11063-000 |
— | ||
| replacements | |||||
|
12
|
12
08332-1106B-000 E RINGCirclip 4AT; 2002-11-01~2003-10-01 |
08332-1106B-000 |
from US $0.90 |
||
|
12
|
12
08332-1106A-000 E RINGE ring, pinion 4AT; 2002-11-01~2003-10-01 |
08332-1106A-000 |
from US $0.77 |
||
