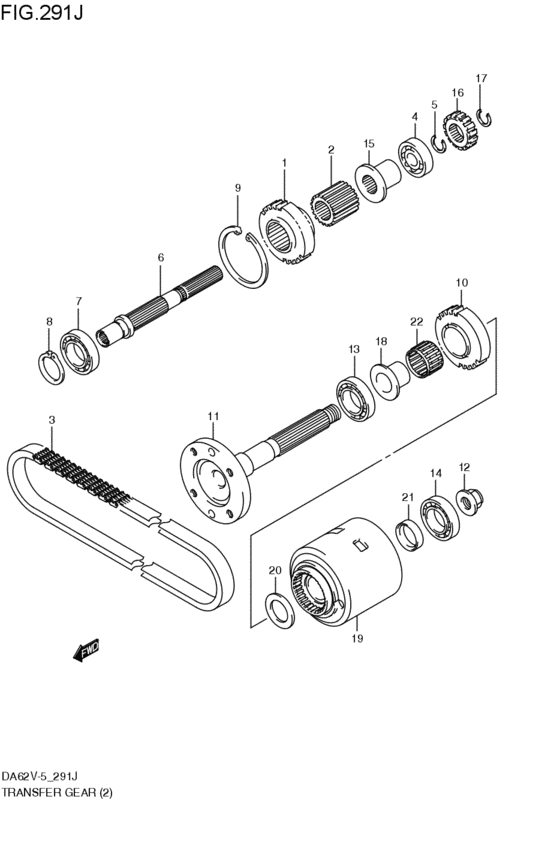

transfer gear (AT:4AT:4WD; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PX
- number of the gears
- 4AT
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29221-76A21-000 SPROCKET,FRONT DRIVEAT:4AT:4WD; 2002-11-01~2003-10-01 |
29221-76A21-000 |
US $45.63 |
||
|
2
|
2
29222-76A20-000 BUSH,T/F SPROCKETAT:4AT:4WD; 2002-11-01~2003-10-01 |
29222-76A20-000 |
US $16.23 |
||
|
3
|
3
29225-79A02-000 CHAIN,FR DRIVEAT:4AT:4WD; 2002-11-01~2003-10-01 |
29225-79A02-000 |
US $163.20 |
||
|
4
|
4
09262-22031-000 BEARING(22X52X15)AT:4AT:4WD; 2002-11-01~2003-10-01 |
09262-22031-000 |
from US $12 |
||
|
5
|
5
09380-22010-000 CIRCLIPAT:4AT:4WD; 2002-11-01~2003-10-01 |
09380-22010-000 |
US $1.92 |
||
|
6
|
6
29110-79A30-000
シャフト,トランスファ
AT:4AT:4WD; 2002-11-01~2003-10-01 |
29110-79A30-000 |
— | ||
| replacement | |||||
|
6
|
6
29110-79A51-000 SHAFT,T/FAT:4AT:4WD; 2002-11-01~2003-10-01 |
29110-79A51-000 |
US $179.58 |
||
|
7
|
7
08123-60070-000 BEARINGAT:4AT:4WD; 2002-11-01~2003-10-01 |
08123-60070-000 |
US $20.98 |
||
|
8
|
8
08331-31356-000
Circlip 35mm
AT:4AT:4WD; 2002-11-01~2003-10-01 |
08331-31356-000 |
— | ||
| replacement | |||||
|
8
|
8
08331-31359-000 CIRCLIPAT:4AT:4WD; 2002-11-01~2003-10-01 |
08331-31359-000 |
from US $4.45 |
||
|
9
|
9
08331-41626-000
Ring 62mm
AT:4AT:4WD; 2002-11-01~2003-10-01 |
08331-41626-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-4162A-000 CIRCLIPAT:4AT:4WD; 2002-11-01~2003-10-01 |
08331-4162A-000 |
from US $2.05 |
||
|
10
|
10
29131-66H20-000 SPROCKET,T/F OUTPUT FRONTAT:4AT:4WD; 2002-11-01~2003-10-01 |
29131-66H20-000 |
US $46.37 |
||
|
11
|
11
29150-66H20-000 SHAFT,T/F OUTPUT FRAT:4AT:4WD; 2002-11-01~2003-10-01 |
29150-66H20-000 |
US $110.40 |
||
|
12
|
12
09159-20012-000 NUTAT:4AT:4WD; 2002-11-01~2003-10-01 |
09159-20012-000 |
US $89.10 |
||
|
13
|
13
09262-30083-000 BEARING(30X55X13)AT:4AT:4WD; 2002-11-01~2003-10-01 |
09262-30083-000 |
US $30.40 |
||
|
14
|
14
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) AT:4AT:4WD; 2002-11-01~2003-10-01 |
09262-25003-000 |
from US $12.80 |
||
|
15
|
15
29224-76A20-000 SPACER,T/F SPROCKETAT:4AT:4WD; 2002-11-01~2003-10-01 |
29224-76A20-000 |
US $9.79 |
||
|
16
|
16
26121-76A01-000 RING,SPEEDOMETER EXCITERAT:4AT:4WD; 2002-11-01~2003-10-01 |
26121-76A01-000 |
US $10.40 |
||
|
17
|
17
09380-22010-000 CIRCLIPAT:4AT:4WD; 2002-11-01~2003-10-01 |
09380-22010-000 |
US $1.92 |
||
|
18
|
18
24214-70D00-000 BUSH,MAIN SHAFT LOW GEARAT:4AT:4WD; 2002-11-01~2003-10-01 |
24214-70D00-000 |
US $21.34 |
||
|
19
|
19
27650-66H01-000
Coupling comp,axc
AT:4AT:4WD; 2002-11-01~2003-10-01 |
27650-66H01-000 |
— | ||
| replacement | |||||
|
19
|
19
27650-66H03-000 COUPLING,AXCAT:4AT:4WD; 2002-11-01~2003-10-01 |
27650-66H03-000 |
US $848.32 |
||
|
20
|
20
09160-25009-000 WASHER(25X41X3)Washer (25x41x3) AT:4AT:4WD; 2002-11-01~2003-10-01 |
09160-25009-000 |
from US $4.60 |
||
|
21
|
21
09180-25089-000 SPACER(25.2X32X9)AT:4AT:4WD; 2002-11-01~2003-10-01 |
09180-25089-000 |
US $90.20 |
||
|
22
|
22
09263-30031-000 BEARING(30X35X26.8)AT:4AT:4WD; 2002-11-01~2003-10-01 |
09263-30031-000 |
from US $8.16 |
||
