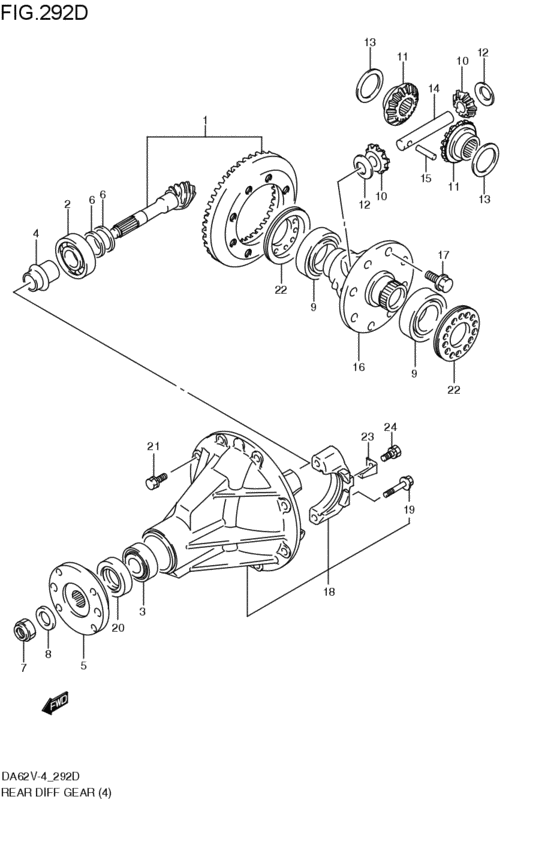

リヤデファレンシャルギヤ (4V:AT:PJ; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- PJ
- number of the gears
- 3AT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-78850-000 BEVEL PINION&GEAR SET4V:AT:PJ; 2001-08-01~2002-12-01 |
27300-78850-000 |
US $580.80 |
||
|
2
|
2
09265-30018-000 BEARING(30X72X20.75)4V:AT:PJ; 2001-08-01~2002-12-01 |
09265-30018-000 |
from US $38.40 |
||
|
3
|
3
27270-79A00-000
ベアリング,ベベルピニオン
4V:AT:PJ; 2001-08-01~2002-12-01 |
27270-79A00-000 |
— | ||
| replacement | |||||
|
3
|
3
27270-79A10-000 BEARING,BEVEL PINION4V:AT:PJ; 2001-08-01~2002-12-01 |
27270-79A10-000 |
from US $38.09 |
||
|
4
|
4
27315-80001-000
SPACER,DRIVE BEVEL PINION
4V:AT:PJ; 2001-08-01~2002-12-01 |
27315-80001-000 |
— | ||
| replacement | |||||
|
4
|
4
27315-64P00-000 SPACER,DRIVE BEVEL PINION4V:AT:PJ; 2001-08-01~2002-12-01 |
27315-64P00-000 |
US $15.20 |
||
|
5
|
5
27110-55C10-000 FLANGE,UNIVERSAL JOINT4V:AT:PJ; 2001-08-01~2002-12-01 |
27110-55C10-000 |
US $54.10 |
||
|
6
|
6
08221-30383-000 SHIM4V:AT:PJ; 2001-08-01~2002-12-01 |
08221-30383-000 |
US $1.44 |
||
|
6
|
6
08221-30404-000 SHIMShim (30x40x0.2) 4V:AT:PJ; 2001-08-01~2002-12-01 |
08221-30404-000 |
from US $1.38 |
||
|
6
|
6
09181-30001-000 SHIM(30X38X0.3)4V:AT:PJ; 2001-08-01~2002-12-01 |
09181-30001-000 |
US $8.50 |
||
|
6
|
6
09181-30052-000 SHIM(30X36X0.05)4V:AT:PJ; 2001-08-01~2002-12-01 |
09181-30052-000 |
US $15.50 |
||
|
7
|
7
09159-18003-000 NUT4V:AT:PJ; 2001-08-01~2002-12-01 |
09159-18003-000 |
from US $1.92 |
||
|
8
|
8
09160-19010-000
Washer
4V:AT:PJ; 2001-08-01~2002-12-01 |
09160-19010-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-19022-000 WASHER(19X32X3.2)Washer (19x32x3.2) 4V:AT:PJ; 2001-08-01~2002-12-01 |
09160-19022-000 |
from US $1.92 |
||
|
9
|
9
09265-41001-000 BEARING(41X68X17.5)4V:AT:PJ; 2001-08-01~2002-12-01 |
09265-41001-000 |
from US $38.40 |
||
|
10
|
10
27331-83020-000 PINION,DIFFERENTIAL4V:AT:PJ; 2001-08-01~2002-12-01 |
27331-83020-000 |
from US $31.39 |
||
| replacements | |||||
|
10
|
10
27331-76A20-000
PINION,DIFFERENTIAL
4V:AT:PJ; 2001-08-01~2002-12-01 |
27331-76A20-000 |
— | ||
|
10
|
10
27331-76A21-000 Pinion,differential4V:AT:PJ; 2001-08-01~2002-12-01 |
27331-76A21-000 |
from US $43.75 |
||
|
11
|
11
27341-64B00-000
ギヤ,ディファレンシャル
4V:AT:PJ; 2001-08-01~2002-12-01 |
27341-64B00-000 |
— | ||
| replacements | |||||
|
11
|
11
27341-76A21-000
GEAR,DIFF
4V:AT:PJ; 2001-08-01~2002-12-01 |
27341-76A21-000 |
— | ||
|
11
|
11
27341-76A22-000 Gear,diff4V:AT:PJ; 2001-08-01~2002-12-01 |
27341-76A22-000 |
from US $55.28 |
||
|
12
|
12
09164-15006-000 WASHER4V:AT:PJ; 2001-08-01~2002-12-01 |
09164-15006-000 |
from US $1.58 |
||
|
13
|
13
09160-35002-000 WASHER(35X46X1)4V:AT:PJ; 2001-08-01~2002-12-01 |
09160-35002-000 |
from US $1.40 |
||
|
13
|
13
09160-35003-000 WASHER(35X46X1.1)4V:AT:PJ; 2001-08-01~2002-12-01 |
09160-35003-000 |
from US $1.96 |
||
|
13
|
13
09160-35004-000 WASHER(35X46X1.2)4V:AT:PJ; 2001-08-01~2002-12-01 |
09160-35004-000 |
from US $1.78 |
||
|
13
|
13
09160-35006-000 WASHER(35X46X0.9)4V:AT:PJ; 2001-08-01~2002-12-01 |
09160-35006-000 |
from US $1.60 |
||
|
14
|
14
27351-64B20-000 SHAFT,DIFF SIDE PINION4V:AT:PJ; 2001-08-01~2002-12-01 |
27351-64B20-000 |
US $20.80 |
||
|
15
|
15
09205-05007-000 PIN,SPRING(5X36)4V:AT:PJ; 2001-08-01~2002-12-01 |
09205-05007-000 |
US $1.76 |
||
|
16
|
16
27411-76A20-000
ケース,ディファレンシャル
4V:AT:PJ; 2001-08-01~2002-12-01 |
27411-76A20-000 |
— | ||
| replacement | |||||
|
16
|
16
27411-76A21-000 CASE,DIFF4V:AT:PJ; 2001-08-01~2002-12-01 |
27411-76A21-000 |
US $152 |
||
|
17
|
17
09103-10303-000 BOLT(10X18)4V:AT:PJ; 2001-08-01~2002-12-01 |
09103-10303-000 |
US $22.10 |
||
|
18
|
18
27450-80713-000 CARRIER ASSY,DIFF4V:AT:PJ; 2001-08-01~2002-12-01 |
27450-80713-000 |
US $216 |
||
|
19
|
19
09111-10054-000 BOLT(10X50)4V:AT:PJ; 2001-08-01~2002-12-01 |
09111-10054-000 |
US $35.30 |
||
|
20
|
20
09283-35008-000
Seal, oil (35x62x10)
4V:AT:PJ; 2001-08-01~2002-12-01 |
09283-35008-000 |
— | ||
| replacement | |||||
|
20
|
20
09283-35052-000 SEAL,OIL(35X62X14.8)4V:AT:PJ; 2001-08-01~2002-12-01 |
09283-35052-000 |
from US $10.34 |
||
|
21
|
21
09112-08011-000 BOLT(8X25)4V:AT:PJ; 2001-08-01~2002-12-01 |
09112-08011-000 |
US $19.50 |
||
|
22
|
22
27461-63201-000 ADJUSTER,DIFF SIDE BEARING4V:AT:PJ; 2001-08-01~2002-12-01 |
27461-63201-000 |
US $8.48 |
||
|
23
|
23
27462-63202-000 PLATE,BEARING LOCK4V:AT:PJ; 2001-08-01~2002-12-01 |
27462-63202-000 |
US $2.74 |
||
|
24
|
24
01550-08123-000
Bolt
4V:AT:PJ; 2001-08-01~2002-12-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0812B-000 BoltPlug, drain 4V:AT:PJ; 2001-08-01~2002-12-01 |
01550-0812B-000 |
from US $0.96 |
||
|
24
|
24
01550-0812A-000 BOLT4V:AT:PJ; 2001-08-01~2002-12-01 |
01550-0812A-000 |
from US $0.91 |
||
