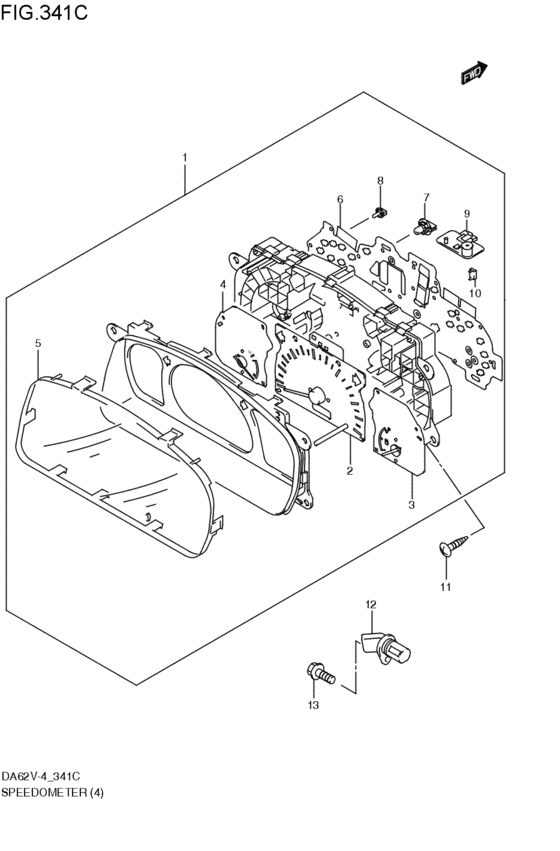

speed meter (W:PJ; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- PJ
- number of the gears
- 3AT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-66HB0-000
スピードメータアッシ,コンビネーション
W:PJ:AT; 2001-08-01~2002-12-01 |
34100-66HB0-000 |
— | ||
|
2
|
2
34120-78AC0-000
ボディアッシ,スピードメータ
W:PJ; 2001-08-01~2002-12-01 |
34120-78AC0-000 |
— | ||
|
3
|
3
34320-78A10-000
ボディアッシ,フューエルメータ
W:PJ; 2001-08-01~2002-12-01 |
34320-78A10-000 |
— | ||
|
4
|
4
34420-84GD0-000
ボディアッシ,テンパレチャメータ
W:PJ:AT; 2001-08-01~2002-12-01 |
34420-84GD0-000 |
— | ||
|
5
|
5
34112-76G00-000 GLASS,METER WINDOWW:PJ; 2001-08-01~2002-12-01 |
34112-76G00-000 |
US $39.38 |
||
|
6
|
6
34152-76G30-000 PLATE,PRINTEDW:PJ; 2001-08-01~2002-12-01 |
34152-76G30-000 |
US $69.92 |
||
|
7
|
7
34171-70G00-000 BULB,14V 3.4W G20W:PJ; 2001-08-01~2002-12-01 |
34171-70G00-000 |
US $6.59 |
||
|
8
|
8
34171-70G10-000 BULB,14V 1.4WW:PJ; 2001-08-01~2002-12-01 |
34171-70G10-000 |
from US $2.59 |
||
|
9
|
9
34191-65D00-000 BUZZER ASSY,WARNINGW:PJ; 2001-08-01~2002-12-01 |
34191-65D00-000 |
US $60.35 |
||
|
10
|
10
34155-82DG0-000 CIRCUIT,ABS WARNINGABSシヨウ; W:PJ:ABS; 2001-08-01~2002-12-01 |
34155-82DG0-000 |
US $30.54 |
||
|
11
|
11
03541-05163-000
Screw
W:PJ; 2001-08-01~2002-12-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0516A-000 SCREWW:PJ; 2001-08-01~2002-12-01 |
03541-0516A-000 |
from US $0.68 |
||
|
12
|
12
34960-78A80-000
センサアッシ,スピード
W:PJ:AT; 2001-08-01~2002-12-01 |
34960-78A80-000 |
— | ||
|
13
|
13
01550-06163-000
Bolt
W:PJ; 2001-08-01~2002-12-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 BOLTW:PJ; 2001-08-01~2002-12-01 |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 BOLTW:PJ; 2001-08-01~2002-12-01 |
01550-0616A-000 |
from US $0.76 |
||
