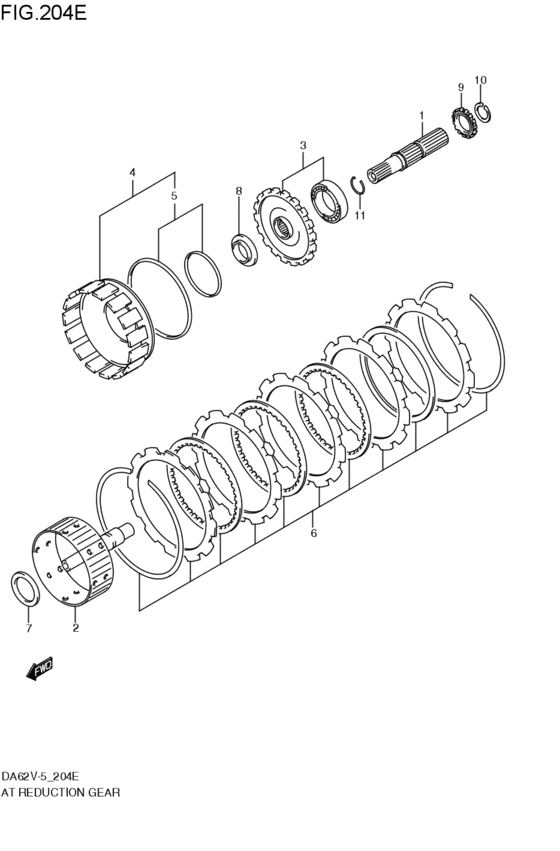

at - reduction gear (4AT; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24120-63H30-000
シャフトアッシ,アウトプツト
4AT:2WD; 2002-11-01~2003-10-01 |
24120-63H30-000 |
— | ||
| replacement | |||||
|
1
|
1
24120-63H31-000
SHAFT,OUTPUT
4AT:2WD; 2002-11-01~2003-10-01 |
24120-63H31-000 |
— | ||
|
2
|
2
24145-81A10-000 SHAFT ASSY,INTERMEDIATE4AT; 2002-11-01~2003-10-01 |
24145-81A10-000 |
US $235.52 |
||
|
3
|
3
24180-81A10-000
GEAR ASSY,PARKING LOCK
4AT; 2002-11-01~2003-10-01 |
24180-81A10-000 |
— | ||
|
4
|
4
26841-81AT1-000 PISTON SET,REV BK4AT; 2002-11-01~2003-10-01 |
26841-81AT1-000 |
US $156.77 |
||
|
5
|
5
26843-81AT0-000 O-RING SET,REV BK PISTON4AT; 2002-11-01~2003-10-01 |
26843-81AT0-000 |
US $12.95 |
||
|
6
|
6
26811-64HT0-000 DISC SET,REV BK4AT; 2002-11-01~2003-10-01 |
26811-64HT0-000 |
US $327.52 |
||
|
7
|
7
24147-81A10-000
BEARING,INTERMEDIATE
4AT; 2002-11-01~2003-10-01 |
24147-81A10-000 |
— | ||
|
8
|
8
24943-75F10-000
BEARING,RR PLNTY THRUST
4AT; 2002-11-01~2003-10-01 |
24943-75F10-000 |
— | ||
|
9
|
9
26121-78A10-000 RING,SPEEDOMETER EXCITER4AT:2WD; 2002-11-01~2003-10-01 |
26121-78A10-000 |
US $19.50 |
||
|
10
|
10
26122-78A10-000 CIRCLIP,EXCITER RING4AT:2WD; 2002-11-01~2003-10-01 |
26122-78A10-000 |
US $4.75 |
||
|
11
|
11
24124-81C00-000 RING,PARKING LOCK SNAP4AT; 2002-11-01~2003-10-01 |
24124-81C00-000 |
US $2.58 |
||
