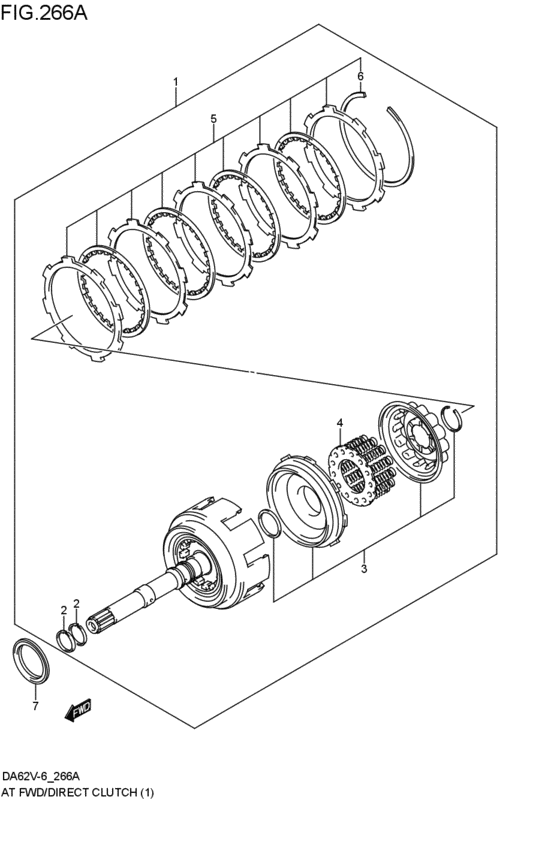

at - forward / direct clutch (フォワードクラッチ; 4AT; 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24100-66H10-000
クラッチアッシ,フォワード
4AT; 2003-08-01~2005-09-01 |
24100-66H10-000 |
— | ||
| replacement | |||||
|
1
|
1
24100-66H11-000
New Genuine Part
4AT; 2003-08-01~2005-09-01 |
24100-66H11-000 |
— | ||
|
2
|
2
24161-79C10-000 RING,INPUT SHAFT SEAL4AT; 2003-08-01~2005-09-01 |
24161-79C10-000 |
US $4.64 |
||
|
3
|
3
26612-66HT0-000 PISTON SET,FORWARD CLUTCH4AT; 2003-08-01~2005-09-01 |
26612-66HT0-000 |
US $65.14 |
||
|
4
|
4
26613-66H10-000 SPRING,FWD CLUTCH RETURN4AT; 2003-08-01~2005-09-01 |
26613-66H10-000 |
US $14.68 |
||
|
5
|
5
26611-66HT0-000
ディスクセット,フォワードクラッチ
4AT; 2003-08-01~2005-09-01 |
26611-66HT0-000 |
— | ||
| replacement | |||||
|
5
|
5
26611-66HT1-000 DISC SET,FORWARD CLUTCH4AT; 2003-08-01~2005-09-01 |
26611-66HT1-000 |
US $202.40 |
||
|
6
|
6
26619-66H10-000 CIRCLIP4AT; 2003-08-01~2005-09-01 |
26619-66H10-000 |
US $3.97 |
||
|
7
|
7
24962-66H10-000 BEARING,THRUST NDL NO.14AT; 2003-08-01~2005-09-01 |
24962-66H10-000 |
US $22.26 |
||
