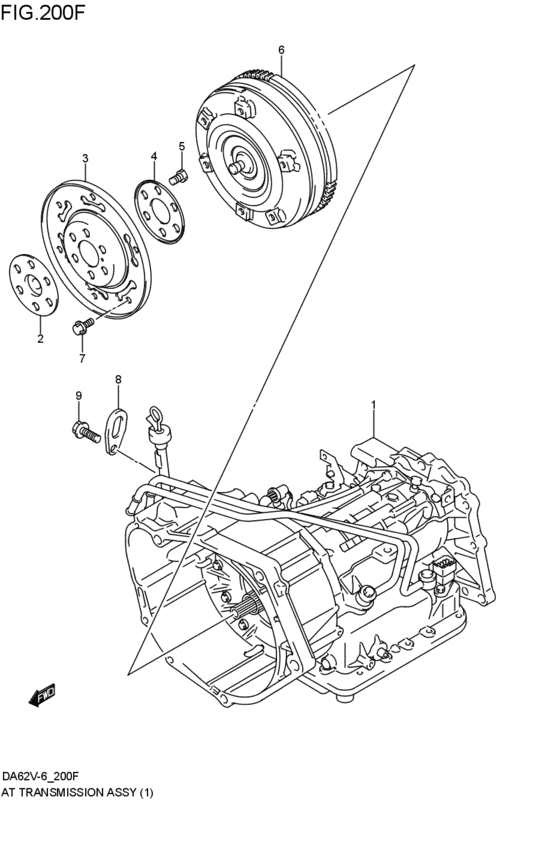

at - transmission assy (4AT; 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-66HH1-000
トランスミッションアッシ,オートマチック
4AT:2WD; 2003-08-01~2005-09-01 |
20002-66HH1-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-66HH6-000
New Genuine Part
4AT:2WD; 2003-08-01~2005-09-01 |
20002-66HH6-000 |
— | ||
|
1
|
1
20002-66HH1-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; 4AT:2WD; 2003-08-01~2005-09-01 |
20002-66HH1-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-66HH6-111
New Genuine Part
リビルト; 4AT:2WD; 2003-08-01~2005-09-01 |
20002-66HH6-111 |
— | ||
|
2
|
2
22611-75F10-000 FLANGE,T/C DRIVE PLATE4AT; 2003-08-01~2005-09-01 |
22611-75F10-000 |
US $40.48 |
||
|
3
|
3
22621-65H10-000 PLATE,TC DRIVE4AT; 2003-08-01~2005-09-01 |
22621-65H10-000 |
US $69.92 |
||
|
4
|
4
22631-75F10-000 PLATE,TC DRIVE REAR4AT; 2003-08-01~2005-09-01 |
22631-75F10-000 |
US $8.76 |
||
|
5
|
5
09103-10282-000 BOLT(10X18.5)4AT; 2003-08-01~2005-09-01 |
09103-10282-000 |
US $2.08 |
||
|
6
|
6
22710-66H10-000
コンバータ,トルク
4AT; 2003-08-01~2004-01-01 |
22710-66H10-000 |
— | ||
| replacement | |||||
|
6
|
6
22710-66HV0-000
コンバータ,トルク
4AT; 2003-08-01~2004-01-01 |
22710-66HV0-000 |
— | ||
|
6
|
6
22710-66H11-000
コンバータ,トルク
4AT; 2003-12-01~2005-09-01 |
22710-66H11-000 |
— | ||
| replacement | |||||
|
6
|
6
22710-66H12-000
New Genuine Part
4AT; 2003-12-01~2005-09-01 |
22710-66H12-000 |
— | ||
|
7
|
7
09103-08335-000
Bolt
4AT; 2003-08-01~2005-09-01 |
09103-08335-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-08421-000 BOLT(8X9.5)4AT; 2003-08-01~2005-09-01 |
09103-08421-000 |
from US $5.61 |
||
|
8
|
8
11851-62B00-000 HOOK4AT; 2003-08-01~2005-09-01 |
11851-62B00-000 |
US $5.02 |
||
|
9
|
9
28229-78A10-000 Bolt4AT; 2003-08-01~2005-09-01 |
28229-78A10-000 |
US $1.51 |
||
