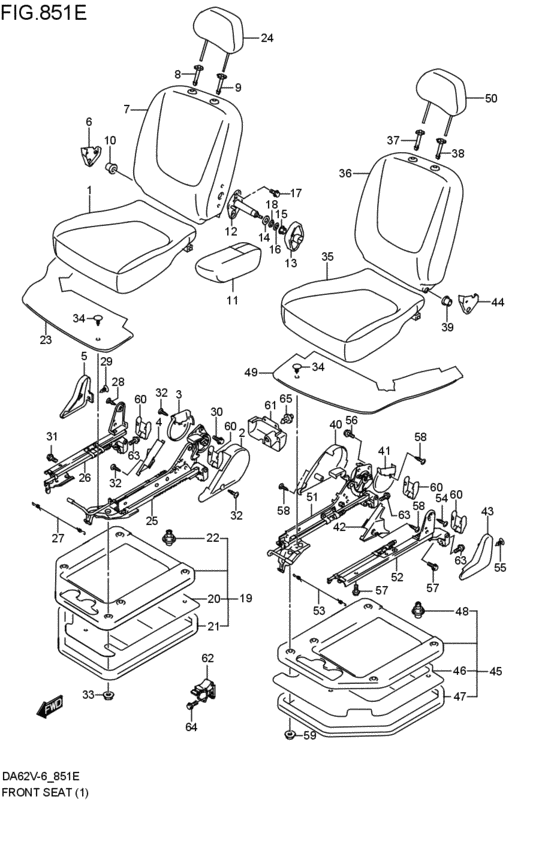

front seat (AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-66H00-AJG
クッションアッシ,フロント,ライト(グレー)
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
85101-66H00-AJG |
— | ||
|
2
|
2
85241-79A00-P4Z COVER,FR,RECL INSIDE,Rグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85241-79A00-P4Z |
US $42.40 |
||
|
3
|
3
85242-79A00-P4Z COVER,FR RECL INS UPR,Rグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85242-79A00-P4Z |
US $10.05 |
||
|
4
|
4
85243-79A00-P4Z COVER,FR RECL INS LWR,Rグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85243-79A00-P4Z |
US $9.57 |
||
|
5
|
5
85281-79A00-P4Z
COVER,FR ADJUSTER OUTSIDE,R
グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85281-79A00-P4Z |
— | ||
|
6
|
6
85282-79A00-P4Z COVER,FR BACK HINGE,Rグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85282-79A00-P4Z |
US $8.46 |
||
|
7
|
7
85301-66H40-AJG
バックアッシ,フロント,ライト(グレー)
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
85301-66H40-AJG |
— | ||
|
8
|
8
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
9
|
9
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
10
|
10
85293-61H00-000 BUSH,FR BACK FIXAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85293-61H00-000 |
US $3.72 |
||
|
11
|
11
85501-66H00-AJA
アームレストアッシ,フロント,ライト
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
85501-66H00-AJA |
— | ||
|
12
|
12
85540-66H00-000 HINGE,FR ARMRESTAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85540-66H00-000 |
US $36.80 |
||
|
13
|
13
85571-66H00-P4Z
COVER,ARMREST HINGE
グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85571-66H00-P4Z |
— | ||
|
14
|
14
85293-52F00-000 WASHER,FR SEAT BACK HINGEAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85293-52F00-000 |
US $3.64 |
||
|
15
|
15
09159-08068-000
ナット
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09159-08068-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-08075-000 NUTAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09159-08075-000 |
US $0.91 |
||
|
16
|
16
09162-10008-000 WASHER,LOCKLock washer, rod end AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09162-10008-000 |
from US $1.28 |
||
|
17
|
17
01550-08123-000
Bolt
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 BOLTAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
08322-01103-000
Washer
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0110B-000 WASHERWasher, knuckle end AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
08322-0110B-000 |
from US $0.76 |
||
|
18
|
18
08322-0110A-000 WASHERWasher, knuckle end AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
08322-0110A-000 |
from US $0.80 |
||
|
19
|
19
85410-79A21-000 PANEL ASSY,FR RISER,RAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85410-79A21-000 |
US $230 |
||
|
20
|
20
85427-79A00-000 INSULATOR,FR RISER,RAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85427-79A00-000 |
US $50.78 |
||
|
21
|
21
85428-79A00-000 WEATHERSTRIP,FR RISERAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85428-79A00-000 |
US $66.40 |
||
|
22
|
22
09410-00067-000 MALEAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09410-00067-000 |
US $2.88 |
||
|
23
|
23
85430-63H01-S9J CARPET,FR RISER,Rグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85430-63H01-S9J |
US $96.42 |
||
|
24
|
24
86401-76G00-AHT
ヘッドレストレイントアッシ
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
86401-76G00-AHT |
— | ||
| replacements | |||||
|
24
|
24
86401-76G01-AHT
ヘッドレストレイントアッシ
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
86401-76G01-AHT |
— | ||
|
24
|
24
86401-76G02-AHT
New Genuine Part
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
86401-76G02-AHT |
— | ||
|
25
|
25
86601-66H01-P4Z
ADJUSTER ASSY,FR INSIDE,R
グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86601-66H01-P4Z |
— | ||
|
26
|
26
86603-61HA0-000 ADJUSTER ASSY,FR OUTSIDE,RAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86603-61HA0-000 |
US $130.64 |
||
|
27
|
27
86850-77A00-000 WIRE,FR ADJUSTERWire, fr adjuster AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86850-77A00-000 |
US $9.46 |
||
|
28
|
28
09116-06109-000 BOLT(6X12)6X12; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09116-06109-000 |
from US $4.10 |
||
|
29
|
29
09409-10304-P4Z CLIP(GRAY)グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09409-10304-P4Z |
US $14.40 |
||
|
30
|
30
01550-10203-000
Bolt
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-1020A-000 BOLTBolt, bal sprocket AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-1020A-000 |
from US $0.96 |
||
|
31
|
31
01570-08203-000
Bolt
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
31
|
31
01570-0820B-000 BoltAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-0820B-000 |
US $17.30 |
||
|
31
|
31
01570-0820A-000 BOLTAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-0820A-000 |
from US $0.96 |
||
|
32
|
32
03241-05083-000
Screw
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0508A-000 SCREWAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
03241-0508A-000 |
US $0.80 |
||
|
33
|
33
08316-1008A-000 NUTNut, idle gear shaft AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
08316-1008A-000 |
from US $0.76 |
||
|
34
|
34
09409-06326-P4Z CLIP(GRAY)グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09409-06326-P4Z |
US $12.90 |
||
|
35
|
35
85102-66H10-AJG
クッションアッシ,フロント,レフト(グレー)
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
85102-66H10-AJG |
— | ||
|
36
|
36
85302-66H20-AJG
バックアッシ,フロント,レフト(グレー)
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
85302-66H20-AJG |
— | ||
|
37
|
37
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
38
|
38
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
39
|
39
85293-61H00-000 BUSH,FR BACK FIXAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85293-61H00-000 |
US $3.72 |
||
|
40
|
40
85741-79A00-P4Z COVER,FR,RECL INSIDE,Lグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85741-79A00-P4Z |
US $42.40 |
||
|
41
|
41
85742-79A00-P4Z COVER,FR RECL INS UPR,Lグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85742-79A00-P4Z |
US $10.05 |
||
|
42
|
42
85743-79A00-P4Z COVER,FR RECL INS LWR,Lグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85743-79A00-P4Z |
US $9.57 |
||
|
43
|
43
85781-79A00-P4Z
COVER,FR ADJUSTER OUTSIDE,L
グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85781-79A00-P4Z |
— | ||
|
44
|
44
85782-79A00-P4Z COVER,FR BACK HINGE,Lグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85782-79A00-P4Z |
US $8.46 |
||
|
45
|
45
85910-79A31-000
PANEL ASSY,FR RISER,L
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85910-79A31-000 |
— | ||
|
46
|
46
85927-79A10-000 INSULATOR,FR RISOR,LAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85927-79A10-000 |
US $50.78 |
||
|
47
|
47
85428-79A10-000 WEATHERSTRIP,FR RISERWeatherstrip, fr riser AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85428-79A10-000 |
US $68 |
||
|
48
|
48
09410-00067-000 MALEAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09410-00067-000 |
US $2.88 |
||
|
49
|
49
85930-63H11-S9J
CARPET,FR RISER,L
グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85930-63H11-S9J |
— | ||
|
50
|
50
86401-76G00-AHT
ヘッドレストレイントアッシ
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
86401-76G00-AHT |
— | ||
| replacements | |||||
|
50
|
50
86401-76G01-AHT
ヘッドレストレイントアッシ
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
86401-76G01-AHT |
— | ||
|
50
|
50
86401-76G02-AHT
New Genuine Part
グレー; AT:(PX,PXM,PS,PSM); 2003-08-01~2005-09-01 |
86401-76G02-AHT |
— | ||
|
51
|
51
86801-77A01-P4Z ADJUSTER ASSY,FR INSIDE,Lグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86801-77A01-P4Z |
US $274.16 |
||
|
52
|
52
86803-79A00-000
ADJUSTER ASSY,FR OUTSIDE,L
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86803-79A00-000 |
— | ||
|
53
|
53
86850-77A00-000 WIRE,FR ADJUSTERWire, fr adjuster AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86850-77A00-000 |
US $9.46 |
||
|
54
|
54
09116-06109-000 BOLT(6X12)AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09116-06109-000 |
from US $4.10 |
||
|
55
|
55
09409-10304-P4Z CLIP(GRAY)グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09409-10304-P4Z |
US $14.40 |
||
|
56
|
56
01550-10203-000
Bolt
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
56
|
56
01550-1020A-000 BOLTBolt, bal sprocket AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01550-1020A-000 |
from US $0.96 |
||
|
57
|
57
01570-08203-000
Bolt
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
57
|
57
01570-0820B-000 BoltAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-0820B-000 |
US $17.30 |
||
|
57
|
57
01570-0820A-000 BOLTAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-0820A-000 |
from US $0.96 |
||
|
58
|
58
03241-05083-000
Screw
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
58
|
58
03241-0508A-000 SCREWAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
03241-0508A-000 |
US $0.80 |
||
|
59
|
59
08316-1008A-000 NUTNut, idle gear shaft AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
08316-1008A-000 |
from US $0.76 |
||
|
60
|
60
85495-79A00-P4Z COVER,RRグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85495-79A00-P4Z |
US $6.96 |
||
|
61
|
61
85496-79A00-P4Z COVER,SEAT BELT HARNESSグレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
85496-79A00-P4Z |
US $10.08 |
||
|
62
|
62
86650-77A01-000
ロックアッシ,フロント
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86650-77A01-000 |
— | ||
| replacement | |||||
|
62
|
62
86650-77A02-000 LOCK ASSY,FRAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
86650-77A02-000 |
US $18.58 |
||
|
63
|
63
01551-10203-000
Bolt, 3rd striker
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
63
|
63
01551-1020A-000 BoltAT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01551-1020A-000 |
US $17.30 |
||
|
64
|
64
01570-06123-000
Bolt
AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
64
|
64
01570-0612B-000 BOLTBolt, upper AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-0612B-000 |
US $0.80 |
||
|
64
|
64
01570-0612A-000 BOLTBolt AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
01570-0612A-000 |
from US $0.80 |
||
|
65
|
65
09409-06314-P4Z CLIP(GRAY)グレ-; AT:(PX,PXM,PS,PSM,PZ); 2003-08-01~2005-09-01 |
09409-06314-P4Z |
US $1.60 |
||
