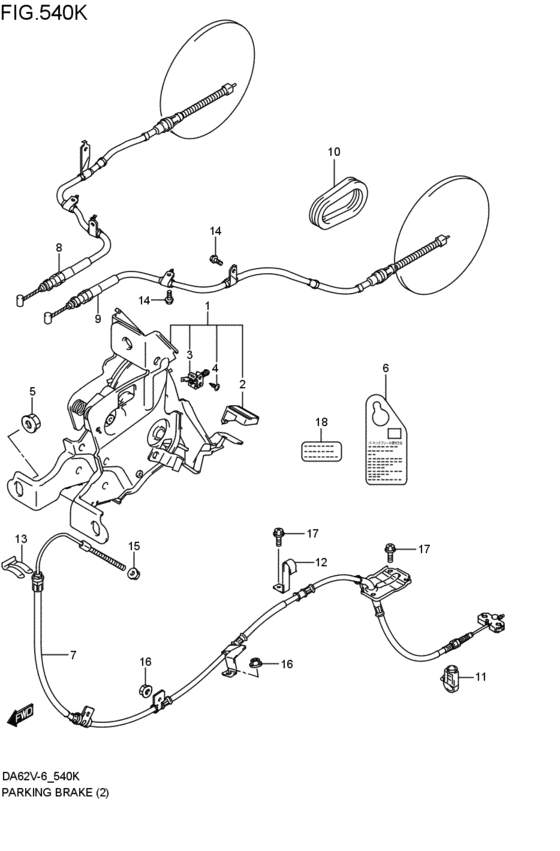

parking brakes (4AT; 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-66H01-000
PEDAL ASSY,PARKING BRAKE
4AT; 2003-08-01~2005-09-01 |
54100-66H01-000 |
— | ||
|
2
|
2
54112-66H00-000 PAD,PARKING PEDAL4AT; 2003-08-01~2005-09-01 |
54112-66H00-000 |
US $13.06 |
||
|
3
|
3
37940-76G00-000 SWITCH ASSY,PARKING BRAKE4AT; 2003-08-01~2005-09-01 |
37940-76G00-000 |
US $7.73 |
||
|
4
|
4
54115-76G00-000 SCREW4AT; 2003-08-01~2005-09-01 |
54115-76G00-000 |
US $2.17 |
||
|
5
|
5
08316-10083-000
Nut
4AT; 2003-08-01~2005-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT4AT; 2003-08-01~2005-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
54851-74F02-000 TAG,PARKING BRAKE WARNING4AT; 2003-08-01~2005-09-01 |
54851-74F02-000 |
US $5.30 |
||
|
7
|
7
54410-66H02-000 CABLE,PARKING BRAKE NO.14AT; 2003-08-01~2005-09-01 |
54410-66H02-000 |
US $90.53 |
||
|
8
|
8
54430-79A00-000 CABLE,PARKING BK NO.2,R4AT; 2003-08-01~2005-09-01 |
54430-79A00-000 |
US $92 |
||
|
9
|
9
54440-79A00-000 CABLE,PARKING BK NO.2,L4AT; 2003-08-01~2005-09-01 |
54440-79A00-000 |
US $80.22 |
||
|
10
|
10
54411-77A01-000
GROMMET,PARKING CABLE
4AT; 2003-08-01~2005-09-01 |
54411-77A01-000 |
— | ||
|
11
|
11
54415-77A00-000 CLAMP,PARKING CABLE4AT; 2003-08-01~2005-09-01 |
54415-77A00-000 |
US $2.94 |
||
|
12
|
12
54417-66H00-000 CLAMP,PARKING CABLE4AT; 2003-08-01~2005-09-01 |
54417-66H00-000 |
US $3.86 |
||
|
13
|
13
09383-08007-000 CLIP4AT; 2003-08-01~2005-09-01 |
09383-08007-000 |
US $20.60 |
||
|
14
|
14
09132-06006-000 SCREW(6X12)4AT; 2003-08-01~2005-09-01 |
09132-06006-000 |
US $1.60 |
||
|
15
|
15
09159-06071-000 NUT4AT; 2003-08-01~2005-09-01 |
09159-06071-000 |
US $0.96 |
||
|
16
|
16
09159-06076-000 NUT4AT; 2003-08-01~2005-09-01 |
09159-06076-000 |
from US $1.28 |
||
|
17
|
17
02162-06123-000
Bolt (6x12)
4AT; 2003-08-01~2005-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt 4AT; 2003-08-01~2005-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket 4AT; 2003-08-01~2005-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
18
|
18
79251-74F02-000 LABEL,PARKING BRAKE WARNING4AT; 2003-08-01~2005-09-01 |
79251-74F02-000 |
US $3.94 |
||
