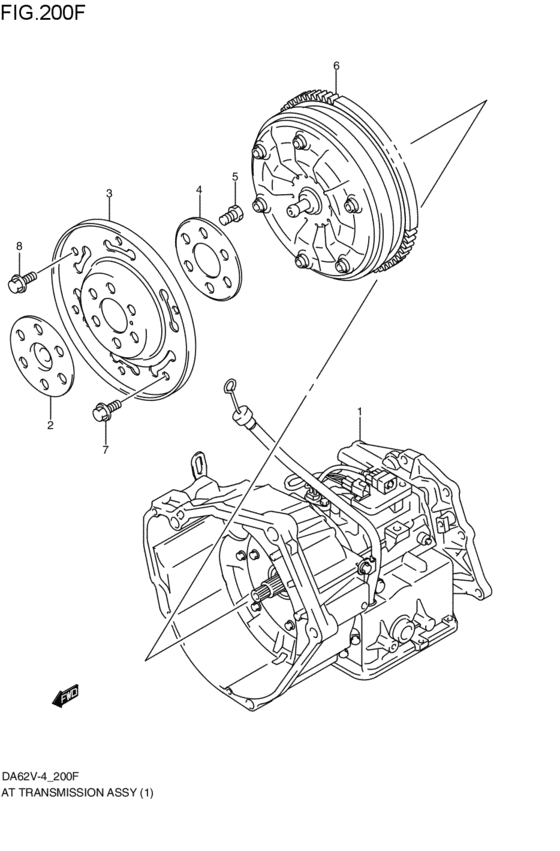

at - transmission assy (4AT; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PSM
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-65H33-000
トランスミッションアッシ,オートマチック
4AT:2WD; 2001-08-01~2002-12-01 |
20002-65H33-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-65H37-000
New Genuine Part
4AT:2WD; 2001-08-01~2002-12-01 |
20002-65H37-000 |
— | ||
|
1
|
1
20002-65H33-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; 4AT:2WD; 2001-08-01~2002-12-01 |
20002-65H33-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-65H37-111
New Genuine Part
リビルト; 4AT:2WD; 2001-08-01~2002-12-01 |
20002-65H37-111 |
— | ||
|
2
|
2
22611-75F10-000 FLANGE,T/C DRIVE PLATE4AT; 2001-08-01~2002-12-01 |
22611-75F10-000 |
US $40.48 |
||
|
3
|
3
22621-65H10-000 PLATE,TC DRIVE4AT; 2001-08-01~2002-12-01 |
22621-65H10-000 |
US $69.92 |
||
|
4
|
4
22631-75F10-000 PLATE,TC DRIVE REAR4AT; 2001-08-01~2002-12-01 |
22631-75F10-000 |
US $8.76 |
||
|
5
|
5
09103-10282-000 BOLT(10X18.5)4AT; 2001-08-01~2002-12-01 |
09103-10282-000 |
US $2.08 |
||
|
6
|
6
22710-65H10-000
コンバータ,トルク
4AT; 2001-08-01~2002-12-01 |
22710-65H10-000 |
— | ||
| replacement | |||||
|
6
|
6
22710-65HV0-000
コンバータ,トルク
4AT; 2001-08-01~2002-12-01 |
22710-65HV0-000 |
— | ||
|
7
|
7
09103-08516-000 BOLT(8X9.5)4AT; 2001-08-01~2002-12-01 |
09103-08516-000 |
US $1.12 |
||
|
8
|
8
09103-08517-000 BOLT(8X9.5)4AT; 2001-08-01~2002-12-01 |
09103-08517-000 |
US $19.50 |
||
