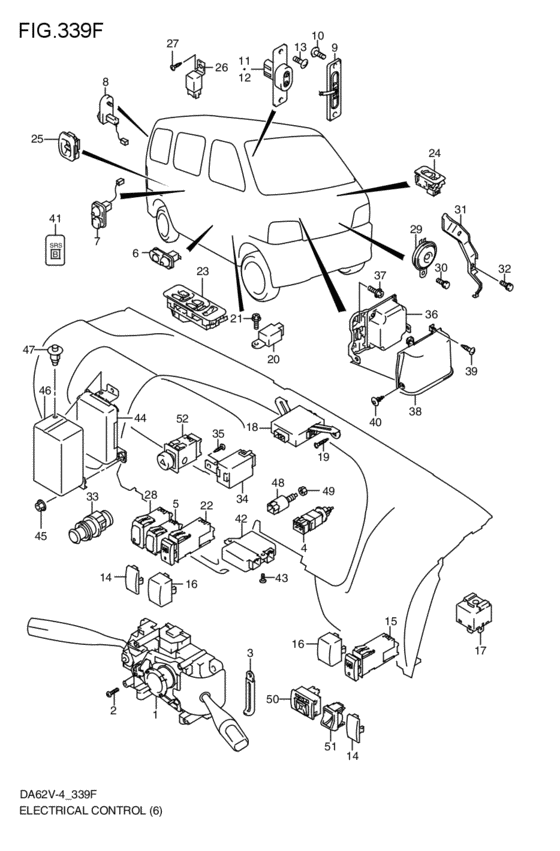

electrical control (W; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PSM
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-78AD0-000
スイッチアッシ,コンビネーション
W; 2001-08-01~2002-12-01 |
37400-78AD0-000 |
— | ||
| replacement | |||||
|
1
|
1
37400-78AD1-000 SWITCH ASSY,COMBW; 2001-08-01~2002-12-01 |
37400-78AD1-000 |
US $475.20 |
||
|
2
|
2
02112-05123-000
Screw 5x12
W; 2001-08-01~2002-12-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREWW; 2001-08-01~2002-12-01 |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
09404-06432-000
CLAMP(L:65)
W:AB; 2001-08-01~2002-12-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
3
|
3
09404-06039-000 Clamp(L:65)W:AB; 2001-08-01~2002-12-01 |
09404-06039-000 |
from US $1.82 |
||
|
4
|
4
37740-75H20-000
スイッチアッシ,ストップランプ
W:4AT; 2002-01-01~2002-12-01 |
37740-75H20-000 |
— | ||
| replacement | |||||
|
4
|
4
37740-75H21-000 SWITCH ASSY,STOP LAMPW:4AT; 2002-01-01~2002-12-01 |
37740-75H21-000 |
US $19.14 |
||
|
4
|
4
37740-80G00-000 SWITCH ASSY,STOP LAMPW:4AT; 2001-08-01~2002-03-01 |
37740-80G00-000 |
US $28.15 |
||
|
6
|
6
37670-76G00-000 SWITCH ASSY,DOORフロント ドア; W; 2001-08-01~2002-12-01 |
37670-76G00-000 |
US $29.60 |
||
|
7
|
7
37670-79A00-000
スイッチアッシ,ドア
リヤ ドア; W; 2001-08-01~2002-12-01 |
37670-79A00-000 |
— | ||
| replacement | |||||
|
7
|
7
37670-79A10-000 SWITCH ASSY,DOORリヤ ドア; W; 2001-08-01~2002-12-01 |
37670-79A10-000 |
US $29.60 |
||
|
8
|
8
37670-79A00-000
スイッチアッシ,ドア
バック ドア; W; 2001-08-01~2002-12-01 |
37670-79A00-000 |
— | ||
| replacement | |||||
|
8
|
8
37670-79A10-000 SWITCH ASSY,DOORバック ドア; W; 2001-08-01~2002-12-01 |
37670-79A10-000 |
US $29.60 |
||
|
9
|
9
37677-79A10-000 SWITCH ASSY,JUNCTION BODYW; 2001-08-01~2002-12-01 |
37677-79A10-000 |
US $55.57 |
||
|
10
|
10
02142-06103-000
Screw
W; 2001-08-01~2002-12-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
02142-0610B-000 SCREWStopper, cl rlse cam shaft W; 2001-08-01~2002-12-01 |
02142-0610B-000 |
from US $0.76 |
||
|
10
|
10
02142-0610A-000 SCREWW; 2001-08-01~2002-12-01 |
02142-0610A-000 |
from US $0.80 |
||
|
11
|
11
37679-79A10-000 SWITCH ASSY,JUNCTION DOOR,RW; 2001-08-01~2002-12-01 |
37679-79A10-000 |
US $93.10 |
||
|
12
|
12
37678-79A10-000 SWITCH ASSY,JUNCTION DOOR,LW; 2001-08-01~2002-12-01 |
37678-79A10-000 |
US $93.10 |
||
|
13
|
13
02142-06103-000
Screw
W; 2001-08-01~2002-12-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
02142-0610B-000 SCREWStopper, cl rlse cam shaft W; 2001-08-01~2002-12-01 |
02142-0610B-000 |
from US $0.76 |
||
|
13
|
13
02142-0610A-000 SCREWW; 2001-08-01~2002-12-01 |
02142-0610A-000 |
from US $0.80 |
||
|
14
|
14
37285-75F10-000 CAP,OPTION SW HOLEW; 2001-08-01~2002-12-01 |
37285-75F10-000 |
US $2.80 |
||
|
15
|
15
37270-75F10-000 SWITCH ASSY,FR FOG LAMPW:(PZ,PSM); 2001-08-01~2002-12-01 |
37270-75F10-000 |
US $91.20 |
||
|
16
|
16
37285-75F00-000 CAP,OPTION SW HOLEW; 2001-08-01~2002-12-01 |
37285-75F00-000 |
US $2.28 |
||
|
17
|
17
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way W; 2001-08-01~2002-12-01 |
38610-76G00-000 |
US $56.80 |
||
|
22
|
22
37860-75F10-000 SWITCH ASSY,RR DEFOGGERW; 2001-08-01~2002-12-01 |
37860-75F10-000 |
US $50.05 |
||
|
23
|
23
37990-82G21-P4Z
SWITCH ASSY,P/W MASTER
グレ-; W; 2001-08-01~2002-12-01 |
37990-82G21-P4Z |
— | ||
| replacement | |||||
|
23
|
23
37990-82G22-P4Z Switch Assy,p/w Master(Gray)グレ-; W; 2001-08-01~2002-12-01 |
37990-82G22-P4Z |
US $323.84 |
||
|
24
|
24
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)グレ-,サブスイッチ; W; 2001-08-01~2002-12-01 |
37995-75F00-P4Z |
US $60.80 |
||
|
25
|
25
37995-77A10-P4Z SWITCH ASSY,P/W REARグレ-; W; 2001-08-01~2002-12-01 |
37995-77A10-P4Z |
US $69.18 |
||
|
26
|
26
38870-79A00-000 RELAY,POWER WINDOWW; 2001-08-01~2002-12-01 |
38870-79A00-000 |
US $41.58 |
||
|
27
|
27
09139-05028-000 SCREW(5X14)W; 2001-08-01~2002-12-01 |
09139-05028-000 |
US $11.40 |
||
|
28
|
28
74360-78A10-000 SWITCH,REAR HTRW; 2001-08-01~2002-12-01 |
74360-78A10-000 |
US $41.22 |
||
|
29
|
29
38500-63H00-000
ホーンアッシ,ローピツチ
W; 2001-08-01~2002-12-01 |
38500-63H00-000 |
— | ||
|
30
|
30
01570-08123-000
Bolt
W; 2001-08-01~2002-12-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
30
|
30
01570-0812A-000 BoltW; 2001-08-01~2002-12-01 |
01570-0812A-000 |
US $14.40 |
||
|
31
|
31
38570-63H01-000
ブラケット,ホーン
W; 2001-08-01~2002-12-01 |
38570-63H01-000 |
— | ||
|
32
|
32
01570-08123-000
Bolt
W; 2001-08-01~2002-12-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
32
|
32
01570-0812A-000 BoltW; 2001-08-01~2002-12-01 |
01570-0812A-000 |
US $14.40 |
||
|
33
|
33
39400-54G00-000 LIGHTER ASSY,CIGARETTEW; 2001-08-01~2002-12-01 |
39400-54G00-000 |
US $22.26 |
||
|
34
|
34
37190-65H01-000
コントローラアッシ,キーレス/ドアロック
キーレスコントロールキノウアリ; W; 2001-08-01~2002-12-01 |
37190-65H01-000 |
— | ||
|
35
|
35
03541-05163-000
Screw
W; 2001-08-01~2002-12-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
35
|
35
03541-0516A-000 SCREWW; 2001-08-01~2002-12-01 |
03541-0516A-000 |
from US $0.76 |
||
|
36
|
36
38910-65H20-000
コントローラアッシ,エアバッグ
W:AB; 2001-08-01~2002-12-01 |
38910-65H20-000 |
— | ||
|
37
|
37
09115-06001-000
Bolt, lh
W:AB; 2001-08-01~2002-12-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
37
|
37
09115-06005-000 BOLT(6X16)W:AB; 2001-08-01~2002-12-01 |
09115-06005-000 |
US $1.28 |
||
|
41
|
41
38918-76G00-000 LABEL,AIR BAG(MARK B)マークB; W:AB; 2001-08-01~2002-12-01 |
38918-76G00-000 |
US $2.87 |
||
|
42
|
42
38720-78A01-000
コントローラアッシ,パワーステアリング
W:PWST; 2001-08-01~2002-12-01 |
38720-78A01-000 |
— | ||
| replacement | |||||
|
42
|
42
38720-78A10-000
Control unit, Power steering
W:PWST; 2001-08-01~2002-12-01 |
38720-78A10-000 |
— | ||
|
43
|
43
02142-05163-000
Bolt
W:PWST; 2001-08-01~2002-12-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
43
|
43
02142-0516B-000 SCREWW:PWST; 2001-08-01~2002-12-01 |
02142-0516B-000 |
from US $0.80 |
||
|
43
|
43
02142-0516A-000 SCREWScrew W:PWST; 2001-08-01~2002-12-01 |
02142-0516A-000 |
from US $0.76 |
||
|
44
|
44
38880-65H01-000
コントローラアッシ,4AT
W:TURBO:4AT:2WD; 2001-08-01~2002-12-01 |
38880-65H01-000 |
— | ||
| replacement | |||||
|
44
|
44
38880-65H02-000
コントローラアッシ,4AT
W:TURBO:4AT:2WD; 2001-08-01~2002-12-01 |
38880-65H02-000 |
— | ||
|
45
|
45
09159-06076-000 NUTW:TURBO:4AT; 2001-08-01~2002-12-01 |
09159-06076-000 |
from US $1.28 |
||
|
46
|
46
33925-76A00-000 COVER,AT CONTW:TURBO:4AT; 2001-08-01~2002-12-01 |
33925-76A00-000 |
US $9.90 |
||
|
47
|
47
09409-06314-5PK CLIP(BLACK)ブラック; W:TURBO:4AT; 2001-08-01~2002-12-01 |
09409-06314-5PK |
from US $1.52 |
||
|
50
|
50
37950-75F10-000 SWITCH ASSY,MIRRORW:(PZ,PSM); 2001-08-01~2002-12-01 |
37950-75F10-000 |
US $41.95 |
||
|
52
|
52
37430-74G00-000
スイッチアッシ,ハザードウォーニング
W; 2001-08-01~2002-12-01 |
37430-74G00-000 |
— | ||
| replacement | |||||
|
52
|
52
37430-66H00-000 SWITCH ASSY,HAZARD WARNINGW; 2001-08-01~2002-12-01 |
37430-66H00-000 |
US $40.48 |
||
