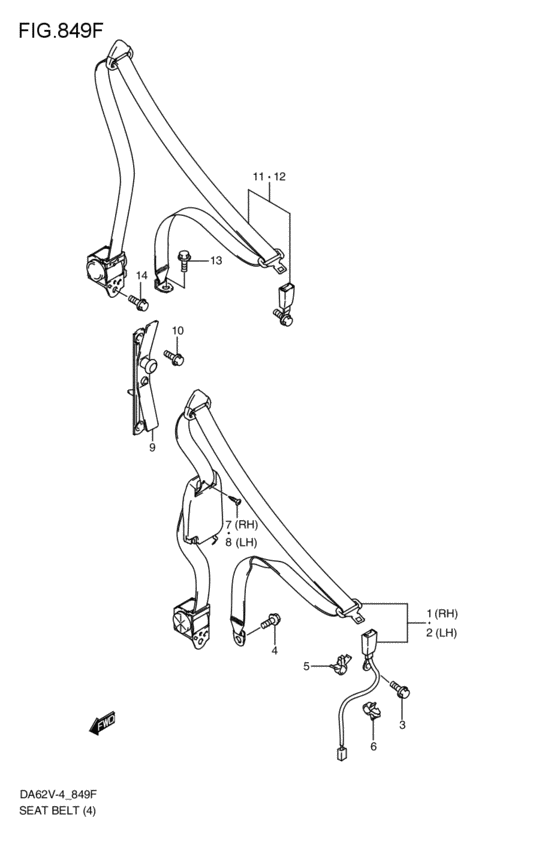

seat belt (W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PSM
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-66H10-P4Z
ベルトアッシ,フロント,ライト(グレー)
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84901-66H10-P4Z |
— | ||
| replacement | |||||
|
1
|
1
84901-66H11-P4Z
New Genuine Part
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84901-66H11-P4Z |
— | ||
|
2
|
2
84902-66H00-P4Z
ベルトアッシ,フロント,レフト(グレー)
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84902-66H00-P4Z |
— | ||
| replacement | |||||
|
2
|
2
84902-66H01-P4Z
New Genuine Part
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84902-66H01-P4Z |
— | ||
|
3
|
3
09117-11001-000
Bolt (11x20)
W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09117-11001-000 |
— | ||
| replacement | |||||
|
3
|
3
09117-11002-000 BOLT(11X20)W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09117-11002-000 |
US $20.20 |
||
|
4
|
4
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09103-11001-000 |
US $18 |
||
|
5
|
5
09403-04401-000 CLAMPW:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09403-04401-000 |
US $9.90 |
||
|
6
|
6
09403-05308-000 CLAMPClamp, seat belt harness W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09403-05308-000 |
US $19.10 |
||
|
7
|
7
03141-06163-000
Screw 6x16
ライト; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
03141-0616A-000 SCREWライト; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
03141-0616A-000 |
from US $0.76 |
||
|
8
|
8
03141-06163-000
Screw 6x16
レフト; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0616A-000 SCREWレフト; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
03141-0616A-000 |
from US $0.76 |
||
|
9
|
9
84990-65D01-6GS
Adjuster,fr shoulder
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84990-65D01-6GS |
— | ||
| replacement | |||||
|
9
|
9
84990-65D02-6GS ADJUSTER ASSY,FR SHLDRグレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84990-65D02-6GS |
US $45.60 |
||
|
10
|
10
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09103-11001-000 |
US $18 |
||
|
11
|
11
84904-61H11-P4Z
ベルトアッシ,リヤ,ライト(グレー)
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84904-61H11-P4Z |
— | ||
| replacement | |||||
|
11
|
11
84904-61H12-P4Z
ベルトアッシ,リヤ,ライト(グレー)
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84904-61H12-P4Z |
— | ||
|
12
|
12
84905-61H11-P4Z
ベルトアッシ,リヤ,レフト(グレー)
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84905-61H11-P4Z |
— | ||
| replacement | |||||
|
12
|
12
84905-61H12-P4Z
ベルトアッシ,リヤ,レフト(グレー)
グレ-; W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
84905-61H12-P4Z |
— | ||
|
13
|
13
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09103-11001-000 |
US $18 |
||
|
14
|
14
09103-11001-000 BOLT(7/16X22)Bolt, fr belt buckle W:(PJ,GS,PS,PSM,PZ); 2001-08-01~2002-12-01 |
09103-11001-000 |
US $18 |
||
