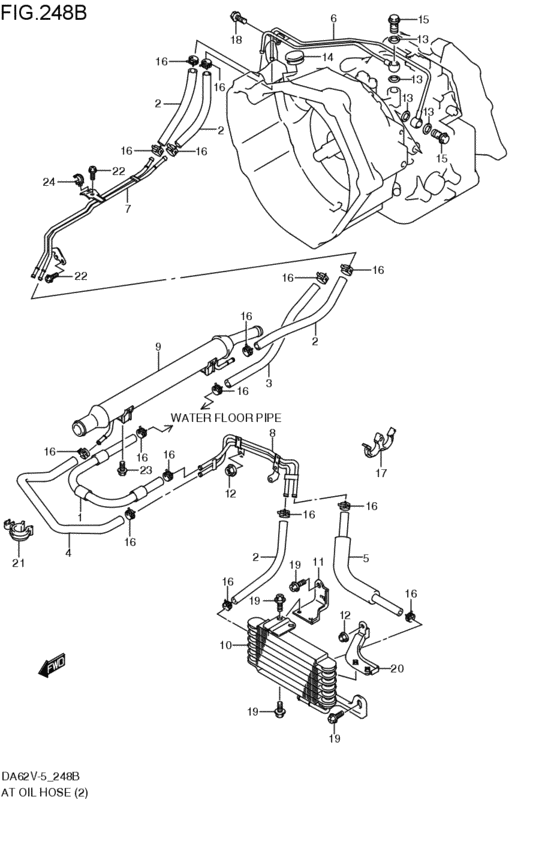

at - oil hose (4AT; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PSM
- number of the gears
- 4AT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22931-65H10-000
ホース,オイル,NO.2
4AT; 2002-11-01~2003-10-01 |
22931-65H10-000 |
— | ||
|
2
|
2
22931-56X50-000
ホース,オイル
4AT; 2002-11-01~2003-10-01 |
22931-56X50-000 |
— | ||
| replacement | |||||
|
2
|
2
22931-56X51-000 HOSE,OIL4AT; 2002-11-01~2003-10-01 |
22931-56X51-000 |
from US $32.92 |
||
|
3
|
3
22933-63H10-000
ホース,オイル,N0.3
4AT; 2002-11-01~2003-10-01 |
22933-63H10-000 |
— | ||
|
4
|
4
22934-60H30-000
ホース,オイル,NO.4
4AT; 2002-11-01~2003-10-01 |
22934-60H30-000 |
— | ||
|
5
|
5
22935-60H30-000
ホース,オイル,NO.6
4AT; 2002-11-01~2003-10-01 |
22935-60H30-000 |
— | ||
|
6
|
6
24891-65H10-000
パイプ,オイル,NO.1
4AT; 2002-11-01~2003-10-01 |
24891-65H10-000 |
— | ||
|
7
|
7
24892-65H10-000
パイプ,オイル,NO.2
4AT; 2002-11-01~2003-10-01 |
24892-65H10-000 |
— | ||
|
8
|
8
24893-60H30-000
パイプ,オイル,NO.3
4AT; 2002-11-01~2003-10-01 |
24893-60H30-000 |
— | ||
| replacements | |||||
|
8
|
8
24893-60H31-000
New Genuine Part
4AT; 2002-11-01~2003-10-01 |
24893-60H31-000 |
— | ||
|
8
|
8
74221-63H01-000 SEALING,AIR4AT; 2002-11-01~2003-10-01 |
74221-63H01-000 |
US $50.05 |
||
|
8
|
8
74222-63H01-000 SEALING,AIR4AT; 2002-11-01~2003-10-01 |
74222-63H01-000 |
US $23.37 |
||
|
9
|
9
24921-65H10-000
クーラ,ATオイル
4AT; 2002-11-01~2003-02-01 |
24921-65H10-000 |
— | ||
| replacements | |||||
|
9
|
9
17846-62H21-000 HOSE,RADIATOR INLET4AT; 2002-11-01~2003-02-01 |
17846-62H21-000 |
US $52.80 |
||
|
9
|
9
24921-65H11-000
クーラ,ATオイル
4AT; 2002-11-01~2003-02-01 |
24921-65H11-000 |
— | ||
|
9
|
9
24921-65H11-000
クーラ,ATオイル
4AT; 2003-01-01~2003-10-01 |
24921-65H11-000 |
— | ||
|
10
|
10
24931-60H30-000
クーラ,オートマチックトランスミッションオイル,NO.2
4AT; 2002-11-01~2003-10-01 |
24931-60H30-000 |
— | ||
|
11
|
11
24932-60H30-000
ブラケット,クーラNO.2,アッパ
4AT; 2002-11-01~2003-10-01 |
24932-60H30-000 |
— | ||
|
12
|
12
09159-06076-000 NUT4AT; 2002-11-01~2003-10-01 |
09159-06076-000 |
from US $1.28 |
||
|
13
|
13
22913-65D30-000
Gasket
4AT; 2002-11-01~2003-10-01 |
22913-65D30-000 |
— | ||
| replacements | |||||
|
13
|
13
22913-59J10-000 GASKET,14X20X0.94AT; 2002-11-01~2003-10-01 |
22913-59J10-000 |
from US $1.51 |
||
|
13
|
13
22910-65810-000 BOLT&GASKET SET4AT; 2002-11-01~2003-10-01 |
22910-65810-000 |
from US $9.38 |
||
|
14
|
14
09250-30003-000 CAP(OD:36)4AT; 2002-11-01~2003-10-01 |
09250-30003-000 |
from US $2.08 |
||
|
15
|
15
09360-14012-000 BOLT,14X27Bolt, union (14x27) 4AT; 2002-11-01~2003-10-01 |
09360-14012-000 |
from US $6.88 |
||
|
16
|
16
09401-13419-000 CLIP4AT; 2002-11-01~2003-10-01 |
09401-13419-000 |
from US $1.60 |
||
|
17
|
17
09408-00155-000 CLAMP4AT; 2002-11-01~2003-10-01 |
09408-00155-000 |
from US $3.33 |
||
|
18
|
18
02162-06103-000
Bolt
4AT; 2002-11-01~2003-10-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
18
|
18
02162-0610A-000 SCREW4AT; 2002-11-01~2003-10-01 |
02162-0610A-000 |
from US $0.64 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
4AT; 2002-11-01~2003-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt 4AT; 2002-11-01~2003-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket 4AT; 2002-11-01~2003-10-01 |
02162-0612A-000 |
from US $0.80 |
||
|
20
|
20
24932-60H50-000
ブラケット,クーラNO.2,ロア
4AT; 2002-11-01~2003-10-01 |
24932-60H50-000 |
— | ||
|
21
|
21
09408-00185-000
CLAMP
4AT; 2002-11-01~2003-10-01 |
09408-00185-000 |
— | ||
|
22
|
22
01550-06123-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BOLTBolt, clamp 4AT; 2002-11-01~2003-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BOLT4AT; 2002-11-01~2003-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
01551-08163-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
23
|
23
01551-0816C-000 Bolt4AT; 2002-11-01~2003-10-01 |
01551-0816C-000 |
from US $0.96 |
||
|
23
|
23
01551-0816A-000
ボルト
4AT; 2002-11-01~2003-10-01 |
01551-0816A-000 |
— | ||
|
24
|
24
09403-08311-000 CLAMP4AT; 2002-11-01~2003-10-01 |
09403-08311-000 |
from US $0.95 |
||
