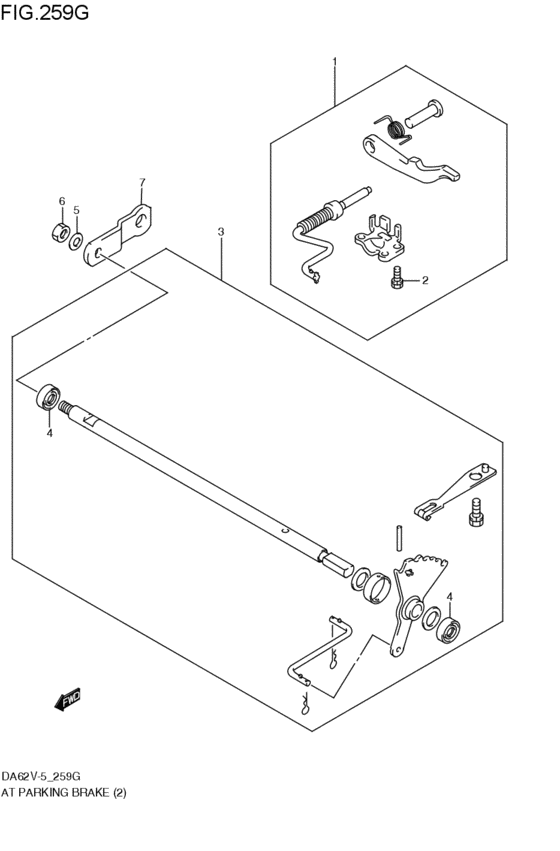

at - parking brakes (4AT; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- PSM
- number of the gears
- 4AT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25912-81AT0-000
PAWL SET,PARKING
4AT; 2002-11-01~2003-10-01 |
25912-81AT0-000 |
— | ||
|
2
|
2
01570-06163-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
2
|
2
01570-0616B-000 Bolt4AT; 2002-11-01~2003-10-01 |
01570-0616B-000 |
from US $0.80 |
||
|
2
|
2
01570-0616A-000 Bolt4AT; 2002-11-01~2003-10-01 |
01570-0616A-000 |
from US $0.80 |
||
|
3
|
3
25941-60HT0-000
シャフトセット,マニュアルシフト
4AT; 2002-11-01~2003-10-01 |
25941-60HT0-000 |
— | ||
|
4
|
4
25981-85500-000 OIL SEAL,MANUAL SHIFT SHAFT4AT; 2002-11-01~2003-10-01 |
25981-85500-000 |
US $10.40 |
||
|
5
|
5
25952-82300-000 WASHER4AT; 2002-11-01~2003-10-01 |
25952-82300-000 |
US $1.47 |
||
|
6
|
6
08310-00083-000
Nut
4AT; 2002-11-01~2003-10-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008B-000 NUT4AT; 2002-11-01~2003-10-01 |
08310-0008B-000 |
from US $0.80 |
||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper 4AT; 2002-11-01~2003-10-01 |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
25941-65H10-000
レバー,トランスミッションコントロールシャフト
4AT; 2002-11-01~2003-10-01 |
25941-65H10-000 |
— | ||
