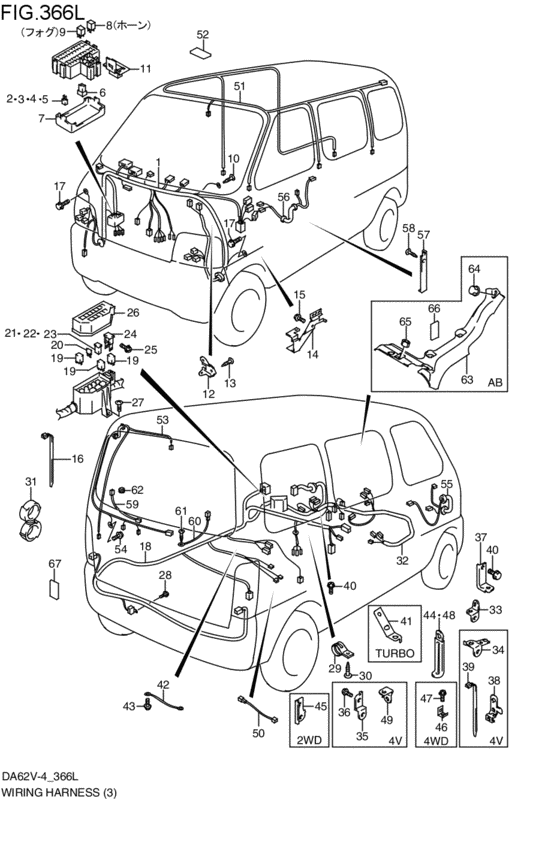

wire ring harness (W; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-66HC0-000
ハーネスアッシ,ワイヤリング,メイン
W:((GS,PS):AT); 2001-08-01~2002-01-01 |
36610-66HC0-000 |
— | ||
|
1
|
1
36610-66HC1-000
ハーネスアッシ,ワイヤリング,メイン
W:((GS,PS):AT); 2002-01-01~2002-12-01 |
36610-66HC1-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A)W; 2001-08-01~2002-12-01 |
09481-10501-000 |
from US $1.22 |
||
|
3
|
3
09481-15501-000 FUSE(15A)W; 2001-08-01~2002-12-01 |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
09481-20501-000 FUSE(20A)W; 2001-08-01~2002-12-01 |
09481-20501-000 |
from US $2.28 |
||
|
5
|
5
09481-30501-000 FUSE(30A)W; 2001-08-01~2002-12-01 |
09481-30501-000 |
from US $1.08 |
||
|
6
|
6
09481-30401-000 FUSE(30A)W; 2001-08-01~2002-12-01 |
09481-30401-000 |
from US $9.98 |
||
|
7
|
7
36717-78A01-000 COVER,FUSE BOXW; 2001-08-01~2002-12-01 |
36717-78A01-000 |
US $9.68 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor ホーンリレー; W:AB; 2001-08-01~2002-12-01 |
38860-76F01-000 |
from US $28.80 |
||
|
10
|
10
03142-05123-000
Screw
W; 2001-08-01~2002-12-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0512A-000 SCREWScrew, belt cooling duct W; 2001-08-01~2002-12-01 |
03141-0512A-000 |
from US $0.76 |
||
|
11
|
11
33941-78A00-000 BRACKET,ALDL CONN,RW; 2001-08-01~2002-12-01 |
33941-78A00-000 |
US $3.24 |
||
|
12
|
12
36614-78A00-000
BRACKET,MAIN HARN
W; 2001-08-01~2002-12-01 |
36614-78A00-000 |
— | ||
|
13
|
13
03541-05123-000
Screw
W; 2001-08-01~2002-12-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0512B-000 SCREWW; 2001-08-01~2002-12-01 |
03541-0512B-000 |
from US $0.76 |
||
|
14
|
14
36614-79A00-000 BRACKET,CONNW; 2001-08-01~2002-12-01 |
36614-79A00-000 |
US $8.91 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
W; 2001-08-01~2002-12-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt W; 2001-08-01~2002-12-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket W; 2001-08-01~2002-12-01 |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
09407-12404-000 CLAMP(L:140)W; 2001-08-01~2002-12-01 |
09407-12404-000 |
US $2.08 |
||
|
17
|
17
09115-06001-000
Bolt, lh
W; 2001-08-01~2002-12-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
17
|
17
09115-06005-000 BOLT(6X16)W; 2001-08-01~2002-12-01 |
09115-06005-000 |
US $1.28 |
||
|
18
|
18
36630-66HK0-000
ハーネスアッシ,ワイヤリング,フロア
W:((GS,PS,PSM,PZ):4WD:AT); 2001-08-01~2002-06-01 |
36630-66HK0-000 |
— | ||
| replacement | |||||
|
18
|
18
36630-66HM0-000
ハーネスアッシ,ワイヤリング,フロア
W:((GS,PS,PSM,PZ):4WD:AT); 2001-08-01~2002-06-01 |
36630-66HM0-000 |
— | ||
|
18
|
18
36630-66HK1-000
ハーネスアッシ,ワイヤリング,フロア
W:((GS,PS,PSM,PZ):4WD:AT); 2002-06-01~2002-12-01 |
36630-66HK1-000 |
— | ||
|
19
|
19
38860-76F01-000 RELAY ASSYRelay, starting motor W; 2001-08-01~2002-12-01 |
38860-76F01-000 |
from US $28.80 |
||
|
20
|
20
09481-15501-000 FUSE(15A)W; 2001-08-01~2002-12-01 |
09481-15501-000 |
from US $3.25 |
||
|
21
|
21
09481-30401-000 FUSE(30A)W; 2001-08-01~2002-12-01 |
09481-30401-000 |
from US $9.98 |
||
|
22
|
22
09481-50401-000 FUSE(50A)W:ABS; 2001-08-01~2002-12-01 |
09481-50401-000 |
US $46 |
||
|
23
|
23
09481-60401-000 FUSE(60A)W; 2001-08-01~2002-12-01 |
09481-60401-000 |
US $6.88 |
||
|
24
|
24
09481-70301-000 FUSE(70A)W; 2001-08-01~2002-12-01 |
09481-70301-000 |
US $64 |
||
|
25
|
25
09138-06040-000 BOLT(6X10)W; 2001-08-01~2002-12-01 |
09138-06040-000 |
US $1.52 |
||
|
26
|
26
36738-78A00-000 COVER,FUSE BOXW; 2001-08-01~2002-12-01 |
36738-78A00-000 |
US $9.16 |
||
|
27
|
27
03141-06163-000
Screw 6x16
W; 2001-08-01~2002-12-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
27
|
27
03141-0616A-000 SCREWW; 2001-08-01~2002-12-01 |
03141-0616A-000 |
from US $0.76 |
||
|
28
|
28
09115-06001-000
Bolt, lh
W; 2001-08-01~2002-12-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
28
|
28
09115-06005-000 BOLT(6X16)W; 2001-08-01~2002-12-01 |
09115-06005-000 |
US $1.28 |
||
|
29
|
29
36649-79A00-000
CLAMP,CABLE&HARN
W:AT; 2001-08-01~2002-12-01 |
36649-79A00-000 |
— | ||
|
30
|
30
03141-06123-000
Screw 6x12
W:AT; 2001-08-01~2002-12-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
30
|
30
03141-0612A-000 SCREWW:AT; 2001-08-01~2002-12-01 |
03141-0612A-000 |
US $0.76 |
||
|
32
|
32
36650-66H20-000
ハーネスアッシ,ワイヤリング,エンジン
W:TURBO; 2001-08-01~2002-12-01 |
36650-66H20-000 |
— | ||
|
37
|
37
36653-76G00-000 BRACKETW:TURBO:AT; 2001-08-01~2002-12-01 |
36653-76G00-000 |
US $3.28 |
||
|
40
|
40
01550-06123-000
Bolt
W:TURBO:AT; 2001-08-01~2002-12-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp W:TURBO:AT; 2001-08-01~2002-12-01 |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLTW:TURBO:AT; 2001-08-01~2002-12-01 |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
36651-66H00-000 BRACKET,ENG HARNW:TURBO; 2001-08-01~2002-12-01 |
36651-66H00-000 |
US $2.13 |
||
|
42
|
42
33851-79A00-000
ケーブル,バッテリグランド,NO.2
W:4WD; 2001-08-01~2002-12-01 |
33851-79A00-000 |
— | ||
|
46
|
46
36651-78A30-000 BRACKET,HARNW:4WD:AT; 2001-08-01~2002-12-01 |
36651-78A30-000 |
US $1.95 |
||
|
47
|
47
02162-06103-000
Bolt
W:4WD:AT; 2001-08-01~2002-12-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
47
|
47
02162-0610A-000 SCREWW:4WD:AT; 2001-08-01~2002-12-01 |
02162-0610A-000 |
from US $0.64 |
||
|
50
|
50
36840-79A00-000 WIRE,FUEL PUMP&GAUGEW; 2001-08-01~2002-12-01 |
36840-79A00-000 |
US $32.20 |
||
|
51
|
51
36820-66HA0-000
ワイヤ,ルーフ
W:(PJ,PS,PSM,PZ); 2001-08-01~2002-12-01 |
36820-66HA0-000 |
— | ||
|
52
|
52
36930-82010-000 COVER,HARNESSCover, roof wire W; 2001-08-01~2002-12-01 |
36930-82010-000 |
from US $1.73 |
||
|
53
|
53
36845-79AE0-000
ワイヤ,バックドア
W:(PJ,PS); 2001-08-01~2002-12-01 |
36845-79AE0-000 |
— | ||
| replacement | |||||
|
53
|
53
36845-79AE2-000
ワイヤ,バックドア
W:(PJ,PS); 2001-08-01~2002-12-01 |
36845-79AE2-000 |
— | ||
|
54
|
54
09139-05028-000 SCREW(5X14)W; 2001-08-01~2002-12-01 |
09139-05028-000 |
US $11.40 |
||
|
55
|
55
36756-66H10-000
ワイヤ,フロントドア,ライト
W:(GS,PS,PSM,PJ,PZ); 2001-08-01~2002-12-01 |
36756-66H10-000 |
— | ||
| replacement | |||||
|
55
|
55
36756-66H61-000
ワイヤ,フロントドア,ライト
W:(GS,PS,PSM,PJ,PZ); 2001-08-01~2002-12-01 |
36756-66H61-000 |
— | ||
|
56
|
56
36757-66H10-000
WIRE,FR DR ASST
W:(PJ,PS,PSM,GS,PZ); 2001-08-01~2002-12-01 |
36757-66H10-000 |
— | ||
|
57
|
57
36759-78A00-000
BRACKET,FRT DR WIRE
W; 2001-08-01~2002-12-01 |
36759-78A00-000 |
— | ||
|
58
|
58
03141-06123-000
Screw 6x12
W; 2001-08-01~2002-12-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
58
|
58
03141-0612A-000 SCREWW; 2001-08-01~2002-12-01 |
03141-0612A-000 |
US $0.76 |
||
|
59
|
59
36890-79A00-000 WIRE,RR DF PLUSW; 2001-08-01~2002-12-01 |
36890-79A00-000 |
US $8.35 |
||
|
60
|
60
36891-79A00-000 WIRE,RR DF GNDW; 2001-08-01~2002-12-01 |
36891-79A00-000 |
US $7.95 |
||
|
61
|
61
09139-05028-000 SCREW(5X14)W; 2001-08-01~2002-12-01 |
09139-05028-000 |
US $11.40 |
||
|
62
|
62
09308-03005-000 GROMMETW; 2001-08-01~2002-12-01 |
09308-03005-000 |
US $12.90 |
||
|
63
|
63
75161-63H00-000
カバー,インタロックケーブル/ハーネス
W:AB; 2001-08-01~2002-12-01 |
75161-63H00-000 |
— | ||
| replacements | |||||
|
63
|
63
36930-82010-000 COVER,HARNESSCover, roof wire W:AB; 2001-08-01~2002-12-01 |
36930-82010-000 |
from US $1.73 |
||
|
63
|
63
75161-63H01-000
COVER,INTLK CABLE&HARNESS
W:AB; 2001-08-01~2002-12-01 |
75161-63H01-000 |
— | ||
|
64
|
64
75162-63H00-000 NUTW:AB; 2001-08-01~2002-12-01 |
75162-63H00-000 |
US $2.17 |
||
|
65
|
65
09159-06076-000 NUTW:AB; 2001-08-01~2002-12-01 |
09159-06076-000 |
from US $1.28 |
||
|
66
|
66
36930-82010-000 COVER,HARNESSCover, roof wire プリテンショナ ワイヤ カバー; W:AB; 2001-08-01~2002-12-01 |
36930-82010-000 |
from US $1.73 |
||
|
67
|
67
36930-82010-000 COVER,HARNESSCover, roof wire フロア ハーネス カバー; W; 2001-08-01~2002-12-01 |
36930-82010-000 |
from US $1.73 |
||
