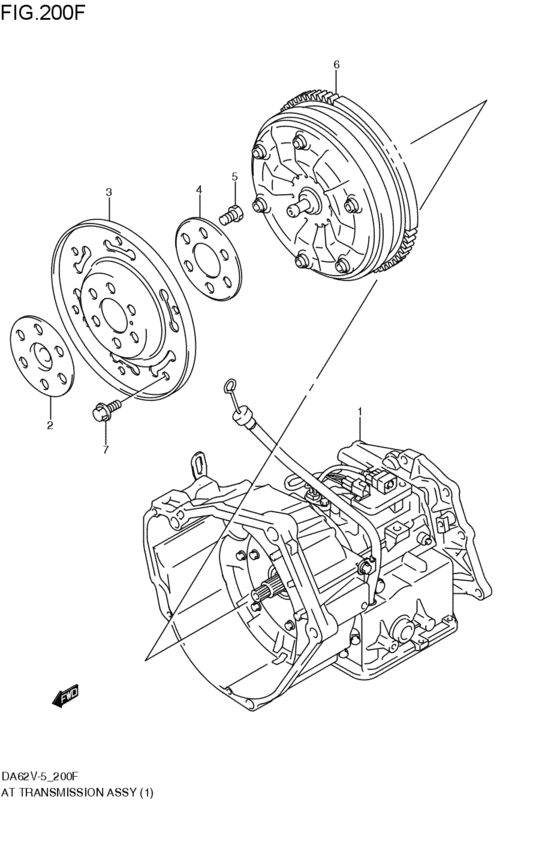

at - transmission assy (4AT; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PS
- number of the gears
- 4AT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-65H13-000
トランスミッションアッシ,オートマチック
4AT:4WD; 2002-11-01~2003-10-01 |
20002-65H13-000 |
— | ||
| replacement | |||||
|
1
|
1
20002-65H16-000
トランスミッションアッシ,オートマチック
4AT:4WD; 2002-11-01~2003-10-01 |
20002-65H16-000 |
— | ||
|
1
|
1
20002-65H13-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; 4AT:4WD; 2002-11-01~2003-10-01 |
20002-65H13-111 |
— | ||
| replacement | |||||
|
1
|
1
20002-65H18-111
New Genuine Part
リビルト; 4AT:4WD; 2002-11-01~2003-10-01 |
20002-65H18-111 |
— | ||
|
2
|
2
22611-75F10-000 FLANGE,T/C DRIVE PLATE4AT; 2002-11-01~2003-10-01 |
22611-75F10-000 |
US $40.48 |
||
|
3
|
3
22621-65H10-000 PLATE,TC DRIVE4AT; 2002-11-01~2003-10-01 |
22621-65H10-000 |
US $69.92 |
||
|
4
|
4
22631-75F10-000 PLATE,TC DRIVE REAR4AT; 2002-11-01~2003-10-01 |
22631-75F10-000 |
US $8.76 |
||
|
5
|
5
09103-10282-000 BOLT(10X18.5)4AT; 2002-11-01~2003-10-01 |
09103-10282-000 |
US $2.08 |
||
|
6
|
6
22710-65H10-000
コンバータ,トルク
4AT; 2002-11-01~2003-10-01 |
22710-65H10-000 |
— | ||
| replacement | |||||
|
6
|
6
22710-65HV0-000
コンバータ,トルク
4AT; 2002-11-01~2003-10-01 |
22710-65HV0-000 |
— | ||
|
7
|
7
09103-08335-000
Bolt
4AT; 2002-11-01~2003-10-01 |
09103-08335-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-08421-000 BOLT(8X9.5)4AT; 2002-11-01~2003-10-01 |
09103-08421-000 |
from US $1.85 |
||
