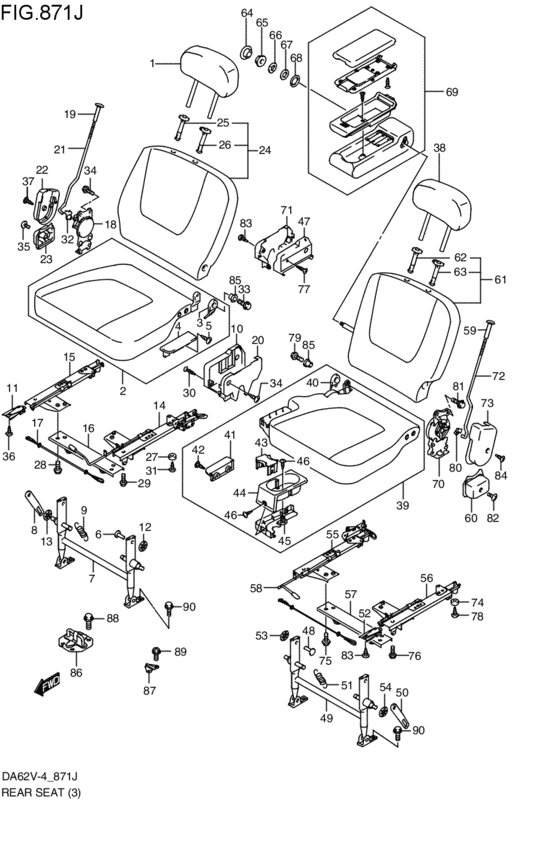

rear seat (W; 2001-08-01~2002-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2001 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- PZ
- number of the gears
- 5MT
- body
- W
- air bag
- AB
- abs
- ABS
- power steering
- PWST
- differential lock
- DFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-79A10-FY4
ヘッドレストレイントアッシ
グレー/ブルー; W; 2001-08-01~2002-12-01 |
86401-79A10-FY4 |
— | ||
| replacement | |||||
|
1
|
1
86401-79A11-FY4
New Genuine Part
グレー/ブルー; W; 2001-08-01~2002-12-01 |
86401-79A11-FY4 |
— | ||
|
2
|
2
87101-66H20-FY4
クッションアッシ,リヤ,ライト
グレー/ブルー; W; 2001-08-01~2002-12-01 |
87101-66H20-FY4 |
— | ||
|
3
|
3
87281-61H00-P4Z
カバー,リヤクッションヒンジ,ライト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87281-61H00-P4Z |
— | ||
|
4
|
4
87282-61H00-P4Z
カバー,リヤクッションインサイド,ライト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87282-61H00-P4Z |
— | ||
|
5
|
5
03242-05123-000
Screw, inner cover
W; 2001-08-01~2002-12-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0512A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0512A-000 |
from US $0.68 |
||
|
6
|
6
87222-79A00-000 PIN,REAR SEAT LEGW; 2001-08-01~2002-12-01 |
87222-79A00-000 |
US $2.72 |
||
|
7
|
7
87250-61H00-000
レッグ,リヤシート
W; 2001-08-01~2002-12-01 |
87250-61H00-000 |
— | ||
|
8
|
8
87255-61H00-000
アーム,リヤシートレッグ
W; 2001-08-01~2002-12-01 |
87255-61H00-000 |
— | ||
|
9
|
9
87263-79A31-000
スプリング,リヤシートレッグ
W; 2001-08-01~2002-12-01 |
87263-79A31-000 |
— | ||
|
10
|
10
87283-61H00-P4Z
カバー,リヤロックインサイド,ライト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87283-61H00-P4Z |
— | ||
|
11
|
11
87284-61H00-P4Z
カバー,リヤアジャスタ,アウトサイド(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87284-61H00-P4Z |
— | ||
|
12
|
12
09148-08002-000 NUTW; 2001-08-01~2002-12-01 |
09148-08002-000 |
US $11 |
||
|
13
|
13
87226-61H00-000
ワッシャ,リヤシートレッグ
W; 2001-08-01~2002-12-01 |
87226-61H00-000 |
— | ||
|
14
|
14
86603-61H01-000
アジャスタアッシ,リヤアウトサイド,ライト
W; 2001-08-01~2002-12-01 |
86603-61H01-000 |
— | ||
|
15
|
15
86601-61H01-000
アジャスタアッシ,リヤインサイド,ライト
W; 2001-08-01~2002-12-01 |
86601-61H01-000 |
— | ||
|
16
|
16
87770-61H01-000
メンバ,リヤ
W; 2001-08-01~2002-12-01 |
87770-61H01-000 |
— | ||
|
17
|
17
87850-61H00-000
ワイヤ,リヤアジャスタ
W; 2001-08-01~2002-12-01 |
87850-61H00-000 |
— | ||
|
18
|
18
87210-61H01-000
リクライニングアッシ,リヤ,ライト
W; 2001-08-01~2002-12-01 |
87210-61H01-000 |
— | ||
|
19
|
19
87211-74G00-P4Z
Knob,3rd rclng(gray)
グレ-; W; 2001-08-01~2002-12-01 |
87211-74G00-P4Z |
— | ||
| replacement | |||||
|
19
|
19
87211-74G10-P4Z KNOB,RR BACKグレ-; W; 2001-08-01~2002-12-01 |
87211-74G10-P4Z |
from US $2.43 |
||
|
20
|
20
87213-61H00-P4Z
カバー,リヤロックアウトサイド,ライト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87213-61H00-P4Z |
— | ||
|
21
|
21
87215-79A10-000
ROD,RR RCLNG,R
W; 2001-08-01~2002-12-01 |
87215-79A10-000 |
— | ||
|
22
|
22
87222-79A10-P4Z COVER,RR RECL UPPER,Rグレ-; W; 2001-08-01~2002-12-01 |
87222-79A10-P4Z |
US $20.61 |
||
|
23
|
23
87223-79A10-P4Z COVER RR RECL LOWERグレ-; W; 2001-08-01~2002-12-01 |
87223-79A10-P4Z |
US $13.76 |
||
|
24
|
24
87301-66H20-FY4
バックアッシ,リヤ,ライト
グレー/ブルー; W; 2001-08-01~2002-12-01 |
87301-66H20-FY4 |
— | ||
|
25
|
25
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; W; 2001-08-01~2002-12-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
26
|
26
85840-81A00-P4Z
ガイド,ヘッドレストレイント(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
85840-81A00-P4Z |
— | ||
| replacement | |||||
|
26
|
26
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; W; 2001-08-01~2002-12-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
27
|
27
88114-76AC0-000 CUSHION,RR SEAT STOPPER,RRW; 2001-08-01~2002-12-01 |
88114-76AC0-000 |
US $4.67 |
||
|
28
|
28
01550-08123-000
Bolt
W; 2001-08-01~2002-12-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0812B-000 BoltPlug, drain W; 2001-08-01~2002-12-01 |
01550-0812B-000 |
from US $0.96 |
||
|
28
|
28
01550-0812A-000 BOLTW; 2001-08-01~2002-12-01 |
01550-0812A-000 |
from US $0.91 |
||
|
29
|
29
01570-08203-000
Bolt
W; 2001-08-01~2002-12-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
29
|
29
01570-0820B-000 BoltW; 2001-08-01~2002-12-01 |
01570-0820B-000 |
US $17.30 |
||
|
29
|
29
01570-0820A-000 BOLTW; 2001-08-01~2002-12-01 |
01570-0820A-000 |
from US $0.96 |
||
|
30
|
30
03222-05123-000
スクリュ
W; 2001-08-01~2002-12-01 |
03222-05123-000 |
— | ||
| replacement | |||||
|
30
|
30
03222-0512B-000 SCREWW; 2001-08-01~2002-12-01 |
03222-0512B-000 |
US $0.80 |
||
|
31
|
31
03242-05123-000
Screw, inner cover
W; 2001-08-01~2002-12-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
31
|
31
03241-0512A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0512A-000 |
from US $0.68 |
||
|
32
|
32
87237-79A10-000
クランプ,リクライニングロッド
W; 2001-08-01~2002-12-01 |
87237-79A10-000 |
— | ||
|
33
|
33
09116-06109-000 BOLT(6X12)W; 2001-08-01~2002-12-01 |
09116-06109-000 |
from US $4.10 |
||
|
34
|
34
01550-10203-000
Bolt
W; 2001-08-01~2002-12-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
34
|
34
01550-1020A-000 BOLTBolt, bal sprocket W; 2001-08-01~2002-12-01 |
01550-1020A-000 |
from US $0.96 |
||
|
35
|
35
03241-05083-000
Screw
W; 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
35
|
35
03241-0508A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
36
|
36
03241-05083-000
Screw
W; 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
36
|
36
03241-0508A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
37
|
37
03241-05083-000
Screw
W; 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
37
|
37
03241-0508A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
38
|
38
86401-79A10-FY4
ヘッドレストレイントアッシ
グレー/ブルー; W; 2001-08-01~2002-12-01 |
86401-79A10-FY4 |
— | ||
| replacement | |||||
|
38
|
38
86401-79A11-FY4
New Genuine Part
グレー/ブルー; W; 2001-08-01~2002-12-01 |
86401-79A11-FY4 |
— | ||
|
39
|
39
87102-66H20-FY4
クッションアッシ,リヤ,レフト
グレー/ブルー; W; 2001-08-01~2002-12-01 |
87102-66H20-FY4 |
— | ||
|
40
|
40
87781-61H00-P4Z
カバー,リヤクッションヒンジ,レフト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87781-61H00-P4Z |
— | ||
|
41
|
41
87782-61H00-P4Z
カバー,リヤクッションインサイド,レフト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87782-61H00-P4Z |
— | ||
|
42
|
42
03242-05123-000
Screw, inner cover
W; 2001-08-01~2002-12-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
42
|
42
03241-0512A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0512A-000 |
from US $0.68 |
||
|
43
|
43
75820-75F00-P4Z
ホルダ,カップ(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
75820-75F00-P4Z |
— | ||
|
44
|
44
87791-66H10-P4Z
カップ,リヤクッション,レフト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87791-66H10-P4Z |
— | ||
|
45
|
45
87792-66H10-P4Z
カバー,リヤカップ,レフト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87792-66H10-P4Z |
— | ||
|
46
|
46
03541-04103-000
Screw
W; 2001-08-01~2002-12-01 |
03541-04103-000 |
— | ||
| replacement | |||||
|
46
|
46
03541-0410A-000 SCREWW; 2001-08-01~2002-12-01 |
03541-0410A-000 |
from US $0.80 |
||
|
47
|
47
87783-61H00-P4Z
カバー,リヤロックインサイド,レフト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87783-61H00-P4Z |
— | ||
|
48
|
48
87222-79A00-000 PIN,REAR SEAT LEGW; 2001-08-01~2002-12-01 |
87222-79A00-000 |
US $2.72 |
||
|
49
|
49
87250-61H00-000
レッグ,リヤシート
W; 2001-08-01~2002-12-01 |
87250-61H00-000 |
— | ||
|
50
|
50
87255-61H00-000
アーム,リヤシートレッグ
W; 2001-08-01~2002-12-01 |
87255-61H00-000 |
— | ||
|
51
|
51
87263-79A31-000
スプリング,リヤシートレッグ
W; 2001-08-01~2002-12-01 |
87263-79A31-000 |
— | ||
|
52
|
52
87284-61H00-P4Z
カバー,リヤアジャスタ,アウトサイド(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87284-61H00-P4Z |
— | ||
|
53
|
53
09148-08002-000 NUTW; 2001-08-01~2002-12-01 |
09148-08002-000 |
US $11 |
||
|
54
|
54
87226-61H00-000
ワッシャ,リヤシートレッグ
W; 2001-08-01~2002-12-01 |
87226-61H00-000 |
— | ||
|
55
|
55
86602-61H01-000
アジャスタアッシ,リヤインサイド,レフト
W; 2001-08-01~2002-12-01 |
86602-61H01-000 |
— | ||
|
56
|
56
86604-61H01-000
アジャスタアッシ,リヤアウトサイド,レフト
W; 2001-08-01~2002-12-01 |
86604-61H01-000 |
— | ||
|
57
|
57
87770-61H01-000
メンバ,リヤ
W; 2001-08-01~2002-12-01 |
87770-61H01-000 |
— | ||
|
58
|
58
87850-61H00-000
ワイヤ,リヤアジャスタ
W; 2001-08-01~2002-12-01 |
87850-61H00-000 |
— | ||
|
59
|
59
87211-74G00-P4Z
Knob,3rd rclng(gray)
グレ-; W; 2001-08-01~2002-12-01 |
87211-74G00-P4Z |
— | ||
| replacement | |||||
|
59
|
59
87211-74G10-P4Z KNOB,RR BACKグレ-; W; 2001-08-01~2002-12-01 |
87211-74G10-P4Z |
from US $2.43 |
||
|
60
|
60
87223-79A10-P4Z COVER RR RECL LOWERグレ-; W; 2001-08-01~2002-12-01 |
87223-79A10-P4Z |
US $13.76 |
||
|
61
|
61
87302-66H20-FY4
バックアッシ,リヤ,レフト
グレー/ブルー; W; 2001-08-01~2002-12-01 |
87302-66H20-FY4 |
— | ||
|
62
|
62
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレ-; W; 2001-08-01~2002-12-01 |
85341-81A00-P4Z |
US $6.04 |
||
|
63
|
63
85840-81A00-P4Z
ガイド,ヘッドレストレイント(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
85840-81A00-P4Z |
— | ||
| replacement | |||||
|
63
|
63
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレ-; W; 2001-08-01~2002-12-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
64
|
64
87497-55F00-P4Z
キャップ,アームレスト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87497-55F00-P4Z |
— | ||
| replacement | |||||
|
64
|
64
85542-65KD0-P4Z CAP,ARMRESTグレ-; W; 2001-08-01~2002-12-01 |
85542-65KD0-P4Z |
US $3.09 |
||
|
65
|
65
09159-08068-000
ナット
W; 2001-08-01~2002-10-01 |
09159-08068-000 |
— | ||
| replacement | |||||
|
65
|
65
09159-08075-000 NUTW; 2001-08-01~2002-10-01 |
09159-08075-000 |
US $0.91 |
||
|
66
|
66
09162-10008-000 WASHER,LOCKLock washer, rod end W; 2001-08-01~2002-12-01 |
09162-10008-000 |
from US $1.28 |
||
|
67
|
67
08322-01103-000
Washer
W; 2001-08-01~2002-12-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
67
|
67
08322-0110B-000 WASHERWasher, knuckle end W; 2001-08-01~2002-12-01 |
08322-0110B-000 |
from US $0.76 |
||
|
67
|
67
08322-0110A-000 WASHERWasher, knuckle end W; 2001-08-01~2002-12-01 |
08322-0110A-000 |
from US $0.80 |
||
|
68
|
68
85293-52F00-000 WASHER,FR SEAT BACK HINGEW; 2001-08-01~2002-12-01 |
85293-52F00-000 |
US $3.64 |
||
|
69
|
69
87502-66H20-P6S
アームレストアッシ,リヤ(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87502-66H20-P6S |
— | ||
|
70
|
70
87710-61H01-000
リクライニングアッシ,リヤ,レフト
W; 2001-08-01~2002-12-01 |
87710-61H01-000 |
— | ||
|
71
|
71
87713-61H00-P4Z
カバー,リヤロックアウトサイド,レフト(グレー)
グレ-; W; 2001-08-01~2002-12-01 |
87713-61H00-P4Z |
— | ||
|
72
|
72
87715-79A10-000 ROD,RR RCLNG,LW; 2001-08-01~2002-12-01 |
87715-79A10-000 |
US $11.63 |
||
|
73
|
73
87722-79A10-P4Z COVER,RR RECL UPPER,Lグレ-; W; 2001-08-01~2002-12-01 |
87722-79A10-P4Z |
US $20.61 |
||
|
74
|
74
88114-76AC0-000 CUSHION,RR SEAT STOPPER,RRW; 2001-08-01~2002-12-01 |
88114-76AC0-000 |
US $4.67 |
||
|
75
|
75
01550-08123-000
Bolt
W; 2001-08-01~2002-12-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
75
|
75
01550-0812B-000 BoltPlug, drain W; 2001-08-01~2002-12-01 |
01550-0812B-000 |
from US $0.96 |
||
|
75
|
75
01550-0812A-000 BOLTW; 2001-08-01~2002-12-01 |
01550-0812A-000 |
from US $0.91 |
||
|
76
|
76
01570-08203-000
Bolt
W; 2001-08-01~2002-12-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
76
|
76
01570-0820B-000 BoltW; 2001-08-01~2002-12-01 |
01570-0820B-000 |
US $17.30 |
||
|
76
|
76
01570-0820A-000 BOLTW; 2001-08-01~2002-12-01 |
01570-0820A-000 |
from US $0.96 |
||
|
77
|
77
03222-05123-000
スクリュ
W; 2001-08-01~2002-12-01 |
03222-05123-000 |
— | ||
| replacement | |||||
|
77
|
77
03222-0512B-000 SCREWW; 2001-08-01~2002-12-01 |
03222-0512B-000 |
US $0.80 |
||
|
78
|
78
03242-05123-000
Screw, inner cover
W; 2001-08-01~2002-12-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
78
|
78
03241-0512A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0512A-000 |
from US $0.68 |
||
|
79
|
79
09116-06109-000 BOLT(6X12)W; 2001-08-01~2002-12-01 |
09116-06109-000 |
from US $4.10 |
||
|
80
|
80
87237-79A10-000
クランプ,リクライニングロッド
W; 2001-08-01~2002-12-01 |
87237-79A10-000 |
— | ||
|
81
|
81
01550-10203-000
Bolt
W; 2001-08-01~2002-12-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
81
|
81
01550-1020A-000 BOLTBolt, bal sprocket W; 2001-08-01~2002-12-01 |
01550-1020A-000 |
from US $0.96 |
||
|
82
|
82
03241-05083-000
Screw
W; 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
82
|
82
03241-0508A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
83
|
83
03241-05083-000
Screw
W; 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
83
|
83
03241-0508A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
84
|
84
03241-05083-000
Screw
W; 2001-08-01~2002-12-01 |
03241-05083-000 |
— | ||
| replacement | |||||
|
84
|
84
03241-0508A-000 SCREWW; 2001-08-01~2002-12-01 |
03241-0508A-000 |
US $0.80 |
||
|
85
|
85
85293-79A00-000 BUSH,FR BACK FIXBush, fr back fix W; 2001-08-01~2002-12-01 |
85293-79A00-000 |
US $3.24 |
||
|
86
|
86
87870-61H00-000
ストライカ,リヤ,インサイド
W; 2001-08-01~2002-12-01 |
87870-61H00-000 |
— | ||
|
87
|
87
87870-61H10-000
ストライカ,リヤ,アウトサイド
W; 2001-08-01~2002-12-01 |
87870-61H10-000 |
— | ||
|
88
|
88
01551-10203-000
Bolt, 3rd striker
W; 2001-08-01~2002-12-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
88
|
88
01551-1020A-000 BoltW; 2001-08-01~2002-12-01 |
01551-1020A-000 |
US $17.30 |
||
|
89
|
89
02162-06103-000
Bolt
W; 2001-08-01~2002-12-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
89
|
89
02162-0610A-000 SCREWW; 2001-08-01~2002-12-01 |
02162-0610A-000 |
from US $0.64 |
||
|
90
|
90
01551-08163-000
Bolt
W; 2001-08-01~2002-12-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
90
|
90
01551-0816C-000 BoltW; 2001-08-01~2002-12-01 |
01551-0816C-000 |
from US $0.96 |
||
|
90
|
90
01551-0816A-000
ボルト
W; 2001-08-01~2002-12-01 |
01551-0816A-000 |
— | ||
