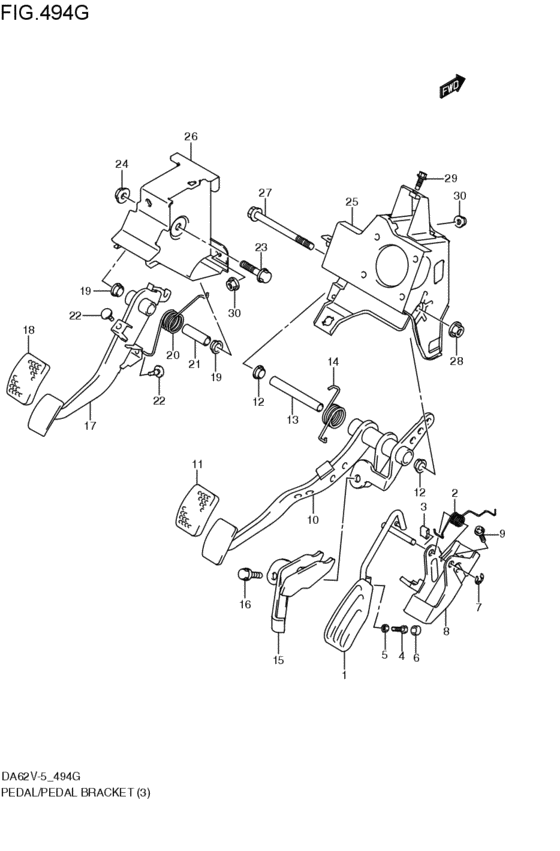

pedal / pedal bracket (MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- PZ
- number of the gears
- 5MT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-62H00-000 PEDAL,ACCELERATORMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49410-62H00-000 |
US $32.38 |
||
|
2
|
2
49491-62H00-000 SPRING,ACCEL PEDAL RETURNMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49491-62H00-000 |
US $5.30 |
||
|
3
|
3
49416-60A00-000 CUSHION,ACCEL PEDAL RETURNMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49416-60A00-000 |
US $2.10 |
||
|
4
|
4
09100-06150-000 BOLT(6X31)Bolt, adjuster MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09100-06150-000 |
from US $3.15 |
||
|
5
|
5
08310-00063-000
Nut
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUTMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09251-09002-000
CAP(OD:13.6)
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09251-09002-000 |
— | ||
| replacement | |||||
|
6
|
6
09251-09008-000 Cap(Od:13.6)MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09251-09008-000 |
from US $5.61 |
||
|
7
|
7
08332-11073-000
E ring
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08332-11073-000 |
— | ||
| replacement | |||||
|
7
|
7
08332-1107A-000 E RINGMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08332-1107A-000 |
from US $0.96 |
||
|
8
|
8
49510-62H01-000 BRACKET,ACCELERATORMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49510-62H01-000 |
US $22.45 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
02162-0612A-000 |
from US $0.80 |
||
|
10
|
10
49610-66H20-000
ペダルアッシ,ブレーキ
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49610-66H20-000 |
— | ||
|
11
|
11
49751-79001-000
Pad, pedal
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49751-79001-000 |
— | ||
| replacement | |||||
|
11
|
11
49751-58J00-000 PAD,PEDALMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49751-58J00-000 |
from US $2.59 |
||
|
12
|
12
09307-13005-000 BUSHBushing MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09307-13005-000 |
from US $2.72 |
||
|
13
|
13
49617-78A00-000 SPACER,BRAKE PEDALMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49617-78A00-000 |
US $7.69 |
||
|
14
|
14
49691-78A00-000 SPRING,PEDAL RETURNMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49691-78A00-000 |
US $6.59 |
||
|
15
|
15
49630-66H20-000
エクステンション,ブレーキペダル
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49630-66H20-000 |
— | ||
|
16
|
16
01551-08123-000
ボルト
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
01551-08123-000 |
— | ||
| replacement | |||||
|
16
|
16
01551-0812A-000 BoltMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
01551-0812A-000 |
US $13.20 |
||
|
17
|
17
49810-62H01-000
PEDAL,CLUTCH
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49810-62H01-000 |
— | ||
|
18
|
18
49751-79001-000
Pad, pedal
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49751-79001-000 |
— | ||
| replacement | |||||
|
18
|
18
49751-58J00-000 PAD,PEDALMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49751-58J00-000 |
from US $2.59 |
||
|
19
|
19
09307-13005-000 BUSHBushing MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09307-13005-000 |
from US $2.72 |
||
|
20
|
20
49891-62H00-000 SPRING,CLUTCH PEDAL RETURNMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49891-62H00-000 |
US $5.15 |
||
|
21
|
21
09180-10135-000 SPACER(10X13X40.4)MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09180-10135-000 |
US $39.70 |
||
|
22
|
22
09321-06026-000 CUSHIONMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09321-06026-000 |
from US $1.60 |
||
|
23
|
23
09103-10027-000 BOLT(10X58)MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09103-10027-000 |
from US $6.26 |
||
|
24
|
24
08316-10103-000
Nut
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1010B-000 NUTMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08316-1010B-000 |
from US $0.80 |
||
|
25
|
25
49710-66H00-000
ブラケット,ブレーキペダル
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49710-66H00-000 |
— | ||
| replacement | |||||
|
25
|
25
49710-66H01-000
BRACKET,BRAKE PEDAL
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49710-66H01-000 |
— | ||
|
26
|
26
49720-62H02-000
ブラケット,クラッチペダル
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49720-62H02-000 |
— | ||
| replacement | |||||
|
26
|
26
49720-62H03-000
BRACKET,CLUTCH PEDAL
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
49720-62H03-000 |
— | ||
|
27
|
27
09103-10142-000 BOLT(10X135)Bolt (10x135) MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09103-10142-000 |
from US $9.67 |
||
|
28
|
28
08316-10103-000
Nut
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
28
|
28
08316-1010B-000 NUTMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08316-1010B-000 |
from US $0.80 |
||
|
29
|
29
09135-08009-000 BOLT(8X20)MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
09135-08009-000 |
US $25 |
||
|
30
|
30
08316-10083-000
Nut
MT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1008B-000 NUTMT:(PJ,PS,PSM,PZ); 2002-11-01~2003-10-01 |
08316-1008B-000 |
from US $0.76 |
||
