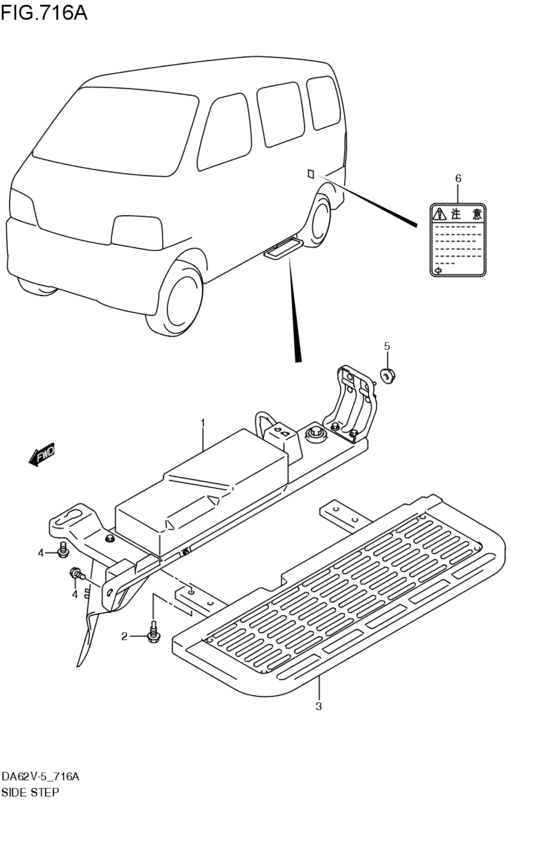

side step (オートステツプ; PZ; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- PZ
- number of the gears
- 5MT
- body
- W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71610-63H00-000
リンク,オートステップ
PZ; 2002-11-01~2003-10-01 |
71610-63H00-000 |
— | ||
|
2
|
2
71615-63H00-000
ボルト,オートステッププレート
PZ; 2002-11-01~2003-10-01 |
71615-63H00-000 |
— | ||
|
3
|
3
71670-63H00-000
プレート,オートステップ
PZ; 2002-11-01~2003-10-01 |
71670-63H00-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
PZ; 2002-11-01~2003-10-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 BoltPZ; 2002-11-01~2003-10-01 |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket PZ; 2002-11-01~2003-10-01 |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
08316-10083-000
Nut
PZ; 2002-11-01~2003-10-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTPZ; 2002-11-01~2003-10-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
71631-63H00-000
ラベル,ドアスイッチコーション
PZ; 2002-11-01~2003-10-01 |
71631-63H00-000 |
— | ||
