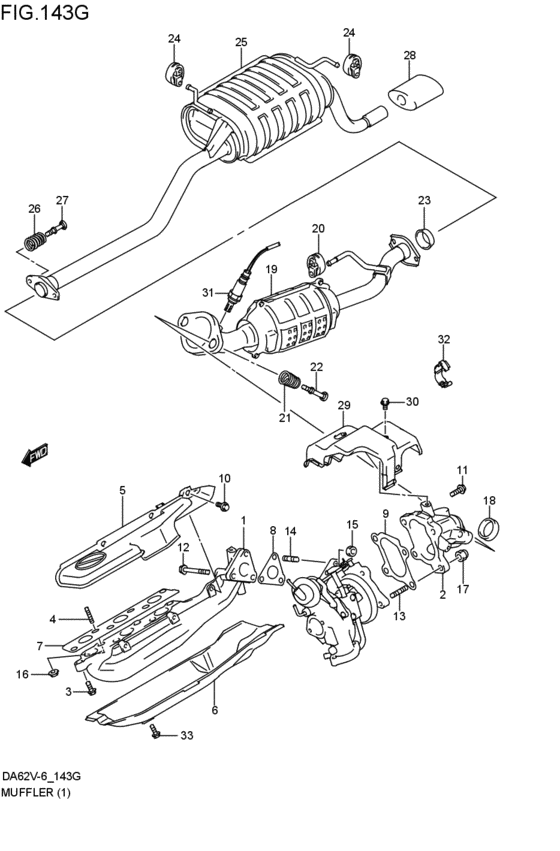

muffler (TURBO; 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PZ
- number of the gears
- 5MT
- body
- W
- air bag
- AB
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-65H61-000
マニホールド,エキゾースト
TURBO; 2003-08-01~2005-09-01 |
14111-65H61-000 |
— | ||
|
2
|
2
14115-65H50-000
パイプ,ターボ,アウトレット
TURBO; 2003-08-01~2005-09-01 |
14115-65H50-000 |
— | ||
|
3
|
3
14118-70G50-000 BOLT,EXH MANF 8X25TURBO; 2003-08-01~2005-09-01 |
14118-70G50-000 |
US $7.36 |
||
|
4
|
4
09108-08268-000 BOLT,STUDTURBO; 2003-08-01~2005-09-01 |
09108-08268-000 |
from US $4.16 |
||
|
5
|
5
14120-65H52-000
カバー,エキゾーストマニホールド,アッパ
TURBO; 2003-08-01~2005-09-01 |
14120-65H52-000 |
— | ||
|
6
|
6
14130-65H55-000
カバー,エキゾーストマニホールド,ロア
TURBO; 2003-08-01~2005-09-01 |
14130-65H55-000 |
— | ||
|
7
|
7
14141-73G02-000 GASKET,EXH MANFGasket, exhaust manifold TURBO; 2003-08-01~2005-09-01 |
14141-73G02-000 |
from US $18.68 |
||
|
8
|
8
14181-81051-000 GASKET,EXH FLANGETURBO; 2003-08-01~2005-09-01 |
14181-81051-000 |
US $17.60 |
||
|
9
|
9
14182-65H50-000
ガスケット,アウトレットパイプ
TURBO; 2003-08-01~2005-09-01 |
14182-65H50-000 |
— | ||
|
10
|
10
09103-06218-000 BOLT(6X12)TURBO; 2003-08-01~2005-09-01 |
09103-06218-000 |
US $0.96 |
||
|
11
|
11
09103-08117-000
ボルト,8X20
TURBO; 2003-08-01~2005-09-01 |
09103-08117-000 |
— | ||
|
12
|
12
09103-08368-000 BOLT(8X65)TURBO; 2003-08-01~2005-09-01 |
09103-08368-000 |
from US $6.64 |
||
|
13
|
13
09108-08264-000 BOLT,STUDTURBO; 2003-08-01~2005-09-01 |
09108-08264-000 |
US $86.10 |
||
|
14
|
14
09108-08258-000 BOLT,STUDTURBO; 2003-08-01~2005-09-01 |
09108-08258-000 |
US $87.20 |
||
|
15
|
15
09159-08056-000 NUTTURBO; 2003-08-01~2005-09-01 |
09159-08056-000 |
US $1.28 |
||
|
16
|
16
09159-08056-000 NUTTURBO; 2003-08-01~2005-09-01 |
09159-08056-000 |
US $1.28 |
||
|
17
|
17
09159-08056-000 NUTTURBO; 2003-08-01~2005-09-01 |
09159-08056-000 |
US $1.28 |
||
|
18
|
18
14183-76A00-000 RING,SEAL EXH PIPETURBO; 2003-08-01~2005-09-01 |
14183-76A00-000 |
from US $11.57 |
||
|
19
|
19
14190-65H61-000
パイプ,エキゾースト
TURBO; 2003-08-01~2005-09-01 |
14190-65H61-000 |
— | ||
|
20
|
20
14281-75F00-000
Mounting
TURBO; 2003-08-01~2005-09-01 |
14281-75F00-000 |
— | ||
| replacement | |||||
|
20
|
20
14281-75F01-000 MOUNTING,MUFTURBO; 2003-08-01~2005-09-01 |
14281-75F01-000 |
from US $4.88 |
||
|
21
|
21
14492-65G00-000 SPRING,EXH PIPETURBO; 2003-08-01~2005-09-01 |
14492-65G00-000 |
US $7.40 |
||
|
22
|
22
09119-10073-000 BOLT(10X65)TURBO; 2003-08-01~2005-09-01 |
09119-10073-000 |
from US $5.76 |
||
|
23
|
23
14183-76A00-000 RING,SEAL EXH PIPETURBO; 2003-08-01~2005-09-01 |
14183-76A00-000 |
from US $11.57 |
||
|
24
|
24
14281-60G10-000
Mounting,muffler
TURBO; 2003-08-01~2005-09-01 |
14281-60G10-000 |
— | ||
| replacement | |||||
|
24
|
24
14281-60G11-000 MOUNTING,MUFFLER(HS60)TURBO; 2003-08-01~2005-09-01 |
14281-60G11-000 |
US $5.78 |
||
|
25
|
25
14300-65H61-000
マフラ
TURBO; 2003-08-01~2005-09-01 |
14300-65H61-000 |
— | ||
|
26
|
26
14492-67D00-000 SPRING,EXH PIPETURBO; 2003-08-01~2005-09-01 |
14492-67D00-000 |
from US $5.69 |
||
|
27
|
27
09119-10073-000 BOLT(10X65)TURBO; 2003-08-01~2005-09-01 |
09119-10073-000 |
from US $5.76 |
||
|
28
|
28
14630-62H50-000
パイプ,マフラテール
TURBO:PZ; 2003-08-01~2005-09-01 |
14630-62H50-000 |
— | ||
|
29
|
29
14135-65H51-000 COVER,TURBOTURBO; 2003-08-01~2005-09-01 |
14135-65H51-000 |
US $51.52 |
||
|
30
|
30
09103-06218-000 BOLT(6X12)TURBO; 2003-08-01~2005-09-01 |
09103-06218-000 |
US $0.96 |
||
|
31
|
31
18213-65D71-000
センサ,オキシジェン
DENSO; TURBO; 2003-08-01~2005-09-01 |
18213-65D71-000 |
— | ||
| replacement | |||||
|
31
|
31
18213-65D72-000 SENSOR,OXYGENDENSO; TURBO; 2003-08-01~2005-09-01 |
18213-65D72-000 |
US $285.20 |
||
|
32
|
32
09408-00184-000 CLAMPTURBO; 2003-08-01~2005-09-01 |
09408-00184-000 |
from US $4.64 |
||
|
33
|
33
14129-65H60-000
ボルト,エキゾーストマニホールドロアカバー
TURBO; 2003-08-01~2005-09-01 |
14129-65H60-000 |
— | ||
