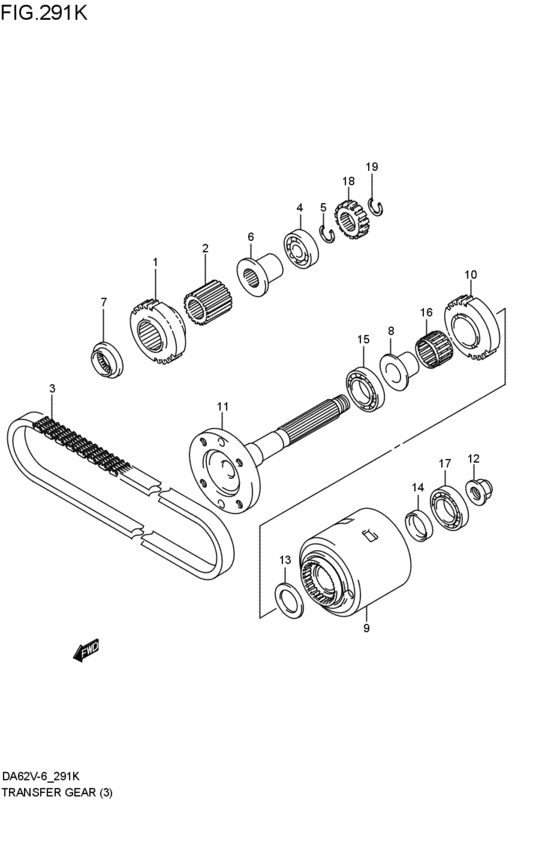

transfer gear (MT:4WD:TURBO; 2003-08-01~2005-09-01) Diagram Suzuki CARRY/EVERY
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- PZ
- number of the gears
- 5MT
- body
- W
- air bag
- AB
- abs
- ABS
- deice
- DEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29221-76A21-000 SPROCKET,FRONT DRIVEMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29221-76A21-000 |
US $45.63 |
||
|
2
|
2
29222-76A20-000 BUSH,T/F SPROCKETMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29222-76A20-000 |
US $16.23 |
||
|
3
|
3
29225-79A02-000 CHAIN,FR DRIVEMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29225-79A02-000 |
US $163.20 |
||
|
4
|
4
09262-22031-000 BEARING(22X52X15)MT:4WD:TURBO; 2003-08-01~2005-09-01 |
09262-22031-000 |
from US $12 |
||
|
5
|
5
09380-22010-000 CIRCLIPMT:4WD:TURBO; 2003-08-01~2005-09-01 |
09380-22010-000 |
US $1.92 |
||
|
6
|
6
29224-76A20-000 SPACER,T/F SPROCKETMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29224-76A20-000 |
US $9.79 |
||
|
7
|
7
29223-79A00-000 WASHER,T/F SPROCKETMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29223-79A00-000 |
US $11.30 |
||
|
8
|
8
24214-70D00-000 BUSH,MAIN SHAFT LOW GEARMT:4WD:TURBO; 2003-08-01~2005-09-01 |
24214-70D00-000 |
US $21.34 |
||
|
9
|
9
27650-66H01-000
Coupling comp,axc
MT:4WD:TURBO; 2003-08-01~2005-09-01 |
27650-66H01-000 |
— | ||
| replacement | |||||
|
9
|
9
27650-66H03-000 COUPLING,AXCMT:4WD:TURBO; 2003-08-01~2005-09-01 |
27650-66H03-000 |
US $848.32 |
||
|
10
|
10
29131-66H20-000 SPROCKET,T/F OUTPUT FRONTMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29131-66H20-000 |
US $46.37 |
||
|
11
|
11
29150-66H20-000 SHAFT,T/F OUTPUT FRMT:4WD:TURBO; 2003-08-01~2005-09-01 |
29150-66H20-000 |
US $110.40 |
||
|
12
|
12
09159-20012-000 NUTMT:4WD:TURBO; 2003-08-01~2005-09-01 |
09159-20012-000 |
US $89.10 |
||
|
13
|
13
09160-25009-000 WASHER(25X41X3)Washer (25x41x3) MT:4WD:TURBO; 2003-08-01~2005-09-01 |
09160-25009-000 |
from US $4.60 |
||
|
14
|
14
09180-25089-000 SPACER(25.2X32X9)MT:4WD:TURBO; 2003-08-01~2005-09-01 |
09180-25089-000 |
US $90.20 |
||
|
15
|
15
09262-30083-000 BEARING(30X55X13)MT:4WD:TURBO; 2003-08-01~2005-09-01 |
09262-30083-000 |
US $30.40 |
||
|
16
|
16
09263-30031-000 BEARING(30X35X26.8)MT:4WD:TURBO; 2003-08-01~2005-09-01 |
09263-30031-000 |
from US $8.16 |
||
|
17
|
17
09262-25003-000 BEARING(25X52X15)Bearing (25x52x15) MT:4WD:TURBO; 2003-08-01~2005-09-01 |
09262-25003-000 |
from US $12.80 |
||
|
18
|
18
26121-76A01-000 RING,SPEEDOMETER EXCITERMT:4WD:TURBO; 2003-08-01~2005-09-01 |
26121-76A01-000 |
US $10.40 |
||
|
19
|
19
09380-22010-000 CIRCLIPMT:4WD:TURBO; 2003-08-01~2005-09-01 |
09380-22010-000 |
US $1.92 |
||
