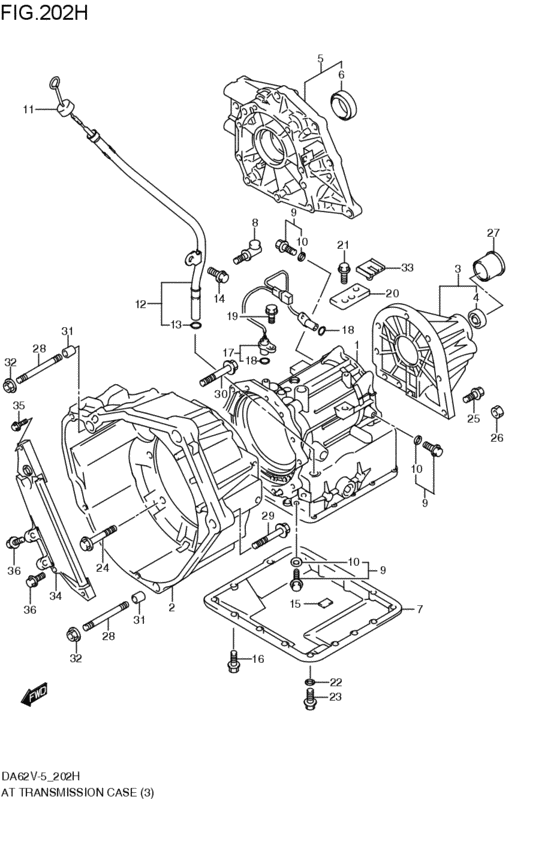

at - transmission case (4AT; 2002-11-01~2003-10-01) Diagram Suzuki CARRY/EVERY
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- PZ
- number of the gears
- 4AT
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-60H11-000
ケースアッシ,トランスミッション
4AT; 2002-11-01~2003-10-01 |
24710-60H11-000 |
— | ||
|
2
|
2
24721-63H10-000
ハウジング,トルクコンバータ
4AT; 2002-11-01~2003-10-01 |
24721-63H10-000 |
— | ||
|
5
|
5
24770-76A10-000
ケース,エクステンション
4AT:4WD; 2002-11-01~2003-10-01 |
24770-76A10-000 |
— | ||
|
6
|
6
09282-35002-000 SEAL,OIL(35X55X9)4AT:4WD; 2002-11-01~2003-10-01 |
09282-35002-000 |
US $10.88 |
||
|
7
|
7
24761-65H10-000
パン,オイル
4AT; 2002-11-01~2003-10-01 |
24761-65H10-000 |
— | ||
|
8
|
8
24717-83C00-000 PLUG,BREATHER4AT; 2002-11-01~2003-10-01 |
24717-83C00-000 |
US $8.48 |
||
|
9
|
9
24820-62B00-000 PLUG,BOOSTER4AT; 2002-11-01~2003-10-01 |
24820-62B00-000 |
US $3.53 |
||
|
10
|
10
24755-78130-000 O-RING4AT; 2002-11-01~2003-10-01 |
24755-78130-000 |
US $0.92 |
||
|
11
|
11
24830-63H13-000 GAUGE,T/M OIL LEVEL4AT; 2002-11-01~2003-10-01 |
24830-63H13-000 |
US $19.69 |
||
|
12
|
12
24785-60H12-000
TUBE ASSY,T/M OIL FILLER
4AT; 2002-11-01~2003-10-01 |
24785-60H12-000 |
— | ||
|
13
|
13
24785-82300-000 O-RING,OIL FILLER TUBE4AT; 2002-11-01~2003-10-01 |
24785-82300-000 |
US $1.62 |
||
|
14
|
14
01550-08163-000
Bolt, holder
4AT; 2002-11-01~2003-10-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 BOLT4AT; 2002-11-01~2003-10-01 |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BOLTBolt, rear 4AT; 2002-11-01~2003-10-01 |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
24861-78230-000 MAGNET,OIL CLEANER4AT; 2002-11-01~2003-10-01 |
24861-78230-000 |
US $2.58 |
||
|
16
|
16
24882-85501-000 BOLT,T/M OIL PAN4AT; 2002-11-01~2003-10-01 |
24882-85501-000 |
US $1.52 |
||
|
17
|
17
26140-81A10-000 SENSOR ASSY,AT SPEED4AT; 2002-11-01~2003-10-01 |
26140-81A10-000 |
US $173.28 |
||
|
18
|
18
26142-75F10-000 O-RING,SPEED SENSOR4AT; 2002-11-01~2003-10-01 |
26142-75F10-000 |
US $2.72 |
||
|
19
|
19
26599-85500-000 BOLT,SOLENOID4AT; 2002-11-01~2003-10-01 |
26599-85500-000 |
US $1.77 |
||
|
20
|
20
26598-60H10-000
ブラケット,ソレノイドワイヤ
4AT; 2002-11-01~2003-10-01 |
26598-60H10-000 |
— | ||
|
21
|
21
01570-06163-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
21
|
21
01570-0616B-000 Bolt4AT; 2002-11-01~2003-10-01 |
01570-0616B-000 |
from US $0.80 |
||
|
21
|
21
01570-0616A-000 Bolt4AT; 2002-11-01~2003-10-01 |
01570-0616A-000 |
from US $0.80 |
||
|
22
|
22
09168-12009-000 GASKET(12X16.7X2)4AT; 2002-11-01~2003-10-01 |
09168-12009-000 |
US $1.22 |
||
|
23
|
23
09247-10007-000 PLUG4AT; 2002-11-01~2003-10-01 |
09247-10007-000 |
US $2.43 |
||
|
24
|
24
24883-85500-000 BOLT,HOUSING4AT; 2002-11-01~2003-10-01 |
24883-85500-000 |
US $2.50 |
||
|
25
|
25
09117-08089-000 BOLT(8X35)4AT; 2002-11-01~2003-10-01 |
09117-08089-000 |
US $19.50 |
||
|
26
|
26
08310-00083-000
Nut
4AT; 2002-11-01~2003-10-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
26
|
26
08310-0008B-000 NUT4AT; 2002-11-01~2003-10-01 |
08310-0008B-000 |
from US $0.80 |
||
|
26
|
26
08310-0008A-000 NUTNut, bead stopper 4AT; 2002-11-01~2003-10-01 |
08310-0008A-000 |
from US $0.76 |
||
|
27
|
27
24773-83C00-000 COVER,DUST4AT; 2002-11-01~2003-10-01 |
24773-83C00-000 |
US $12.62 |
||
|
28
|
28
01421-10453-000
Stud 10x45
4AT; 2002-11-01~2003-10-01 |
01421-10453-000 |
— | ||
| replacement | |||||
|
28
|
28
01421-1045A-000 BOLT,STUD4AT; 2002-11-01~2003-10-01 |
01421-1045A-000 |
US $16.20 |
||
|
29
|
29
01550-10503-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-1050B-000 BOLT4AT; 2002-11-01~2003-10-01 |
01550-1050B-000 |
US $1.22 |
||
|
30
|
30
01550-10553-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-1055B-000 Bolt4AT; 2002-11-01~2003-10-01 |
01550-1055B-000 |
from US $1.44 |
||
|
31
|
31
04211-13149-000 PIN4AT; 2002-11-01~2003-10-01 |
04211-13149-000 |
from US $1.28 |
||
|
32
|
32
08316-10103-000
Nut
4AT; 2002-11-01~2003-10-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
32
|
32
08316-1010B-000 NUT4AT; 2002-11-01~2003-10-01 |
08316-1010B-000 |
from US $0.80 |
||
|
33
|
33
24786-60H10-000
クリップ,シフトスイッチハーネス
4AT; 2002-11-01~2003-10-01 |
24786-60H10-000 |
— | ||
|
34
|
34
24790-67H10-000
スチフナ,エンジン/トランスミッション
4AT; 2002-11-01~2003-10-01 |
24790-67H10-000 |
— | ||
| replacement | |||||
|
34
|
34
24790-67H11-000 STIFFENER,ENG&T/M4AT; 2002-11-01~2003-10-01 |
24790-67H11-000 |
US $55.94 |
||
|
35
|
35
01550-06303-000
Bolt (6x30)
4AT; 2002-11-01~2003-10-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
35
|
35
01550-0630A-000 BOLT4AT; 2002-11-01~2003-10-01 |
01550-0630A-000 |
from US $0.96 |
||
|
36
|
36
01550-08303-000
Bolt
4AT; 2002-11-01~2003-10-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0830B-000 Bolt4AT; 2002-11-01~2003-10-01 |
01550-0830B-000 |
from US $1.06 |
||
|
36
|
36
01550-0830A-000 BOLTBolt, mount oil seal cover 4AT; 2002-11-01~2003-10-01 |
01550-0830A-000 |
from US $1.12 |
||
