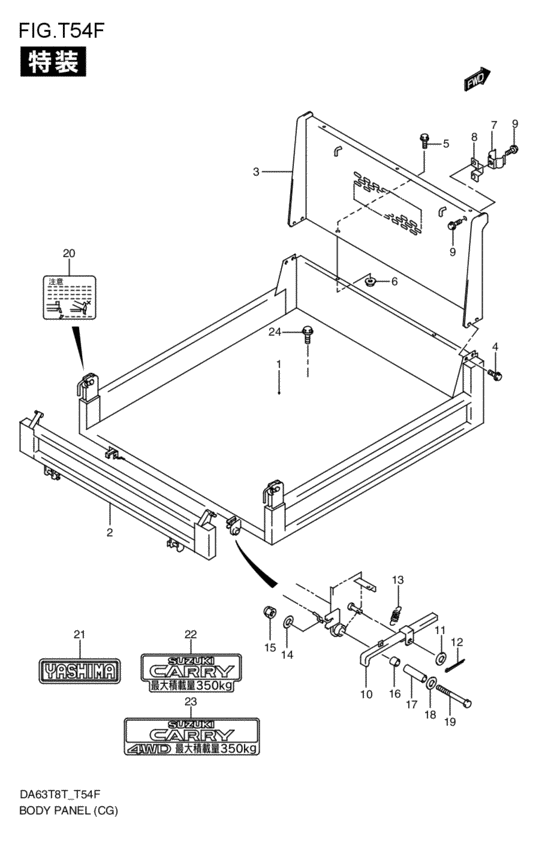

body panel (カソウ) (アサゾコイッポウダンプ; CG; 2008-01-01~) Diagram Suzuki CARRY/EVERY
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- CG
- rear differential lock
- RDFLK-N
- high-mounted stop lamp
- HMSTL-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
98110-56HF1-000
ボディ,デッキ,リヤ
CG; 2008-01-01~ |
98110-56HF1-000 |
— | ||
|
2
|
2
98170-56HF0-000
ゲート,デッキ,リヤ
CG; 2008-01-01~ |
98170-56HF0-000 |
— | ||
|
3
|
3
93310-56H21-000
プロテクタ,キャビン
CG; 2008-01-01~ |
93310-56H21-000 |
— | ||
|
4
|
4
01550-0816A-000 BOLTBolt, rear CG; 2008-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
01550-0612A-000 BOLTCG; 2008-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
08316-1006A-000 NUTCG; 2008-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
93318-79940-000 CLAMP,SHOVELCG; 2008-01-01~ |
93318-79940-000 |
US $37.54 |
||
|
8
|
8
98315-56DE0-000
ブラケット,スコップ
CG; 2008-01-01~ |
98315-56DE0-000 |
— | ||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket CG; 2008-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
10
|
10
97711-72D51-000
アーム,リヤゲートロック
CG; 2008-01-01~ |
97711-72D51-000 |
— | ||
|
11
|
11
09160-12001-000 WASHER(12.5X32X2.3)Washer, lh CG; 2008-01-01~ |
09160-12001-000 |
US $1.60 |
||
|
12
|
12
04111-3020A-000 PINCG; 2008-01-01~ |
04111-3020A-000 |
from US $0.61 |
||
|
13
|
13
97716-79340-000
Spring
CG; 2008-01-01~ |
97716-79340-000 |
— | ||
|
14
|
14
97643-72D00-000
Washerxx
CG; 2008-01-01~ |
97643-72D00-000 |
— | ||
|
15
|
15
08319-21103-000
Nut
CG; 2008-01-01~ |
08319-21103-000 |
— | ||
| replacement | |||||
|
15
|
15
08319-2110A-000 NUTCG; 2008-01-01~ |
08319-2110A-000 |
from US $2.13 |
||
|
16
|
16
97641-85950-000
ブッシュ,リヤボディ,NO.1
CG; 2008-01-01~ |
97641-85950-000 |
— | ||
| replacement | |||||
|
16
|
16
97641-8595V-000
ブッシュ,リヤボディNO.1
CG; 2008-01-01~ |
97641-8595V-000 |
— | ||
|
17
|
17
97642-79340-000
ピン,デッキフロア
CG; 2008-01-01~ |
97642-79340-000 |
— | ||
|
18
|
18
97643-72D00-000
Washerxx
CG; 2008-01-01~ |
97643-72D00-000 |
— | ||
|
19
|
19
97644-72D00-000
ボルト,リヤボディピン
CG; 2008-01-01~ |
97644-72D00-000 |
— | ||
|
20
|
20
97954-56D21-000
ラベル,リヤゲートコーション
CG; 2008-01-01~ |
97954-56D21-000 |
— | ||
| replacement | |||||
|
20
|
20
97954-56H00-000
New Genuine Part
CG; 2008-01-01~ |
97954-56H00-000 |
— | ||
|
21
|
21
97956-72D00-000
ラベル,ネームYASHIMA
CG; 2008-01-01~ |
97956-72D00-000 |
— | ||
|
22
|
22
77861-67H00-21G DECAL,RRCG:2WD; 2008-01-01~ |
77861-67H00-21G |
US $12.32 |
||
|
24
|
24
01551-0816C-000 BoltCG; 2008-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
