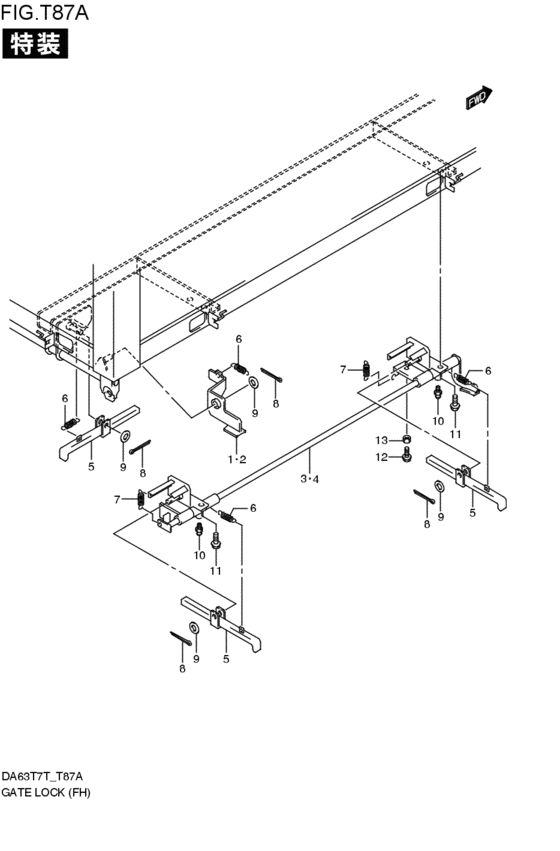

gate lock (サンテンダンプ; FH; 2005-11-01~2008-05-01) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- grade
- FH
- rear differential lock
- RDFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
98671-56H60-000
アーム,リフトロック,ライト
FH; 2005-11-01~2008-05-01 |
98671-56H60-000 |
— | ||
|
2
|
2
98681-56H60-000
アーム,リフトロック,レフト
FH; 2005-11-01~2008-05-01 |
98681-56H60-000 |
— | ||
|
3
|
3
98611-56HK0-000
シャフト,サイドゲートロック,ライト
FH; 2005-11-01~2008-05-01 |
98611-56HK0-000 |
— | ||
|
4
|
4
98631-56HK0-000
シャフト,サイドゲートロック,レフト
FH; 2005-11-01~2008-05-01 |
98631-56HK0-000 |
— | ||
|
5
|
5
97711-79340-000
Arm, rear gate lock
FH; 2005-11-01~2008-05-01 |
97711-79340-000 |
— | ||
|
6
|
6
97716-79340-000
Spring
FH; 2005-11-01~2008-05-01 |
97716-79340-000 |
— | ||
|
7
|
7
97717-72D90-000
スプリング,リヤゲートロックアーム
FH; 2005-11-01~2008-05-01 |
97717-72D90-000 |
— | ||
|
8
|
8
04111-30206-000
コッタピン
FH; 2005-11-01~2008-05-01 |
04111-30206-000 |
— | ||
| replacement | |||||
|
8
|
8
04111-3020A-000 PINFH; 2005-11-01~2008-05-01 |
04111-3020A-000 |
from US $0.59 |
||
|
9
|
9
09160-12001-000 WASHER(12.5X32X2.3)Washer, lh FH; 2005-11-01~2008-05-01 |
09160-12001-000 |
US $1.60 |
||
|
10
|
10
97641-67202-000 NIPPLE,GREASEFH; 2005-11-01~2008-05-01 |
97641-67202-000 |
US $8.02 |
||
|
11
|
11
01580-10203-000
ボルト
FH; 2005-11-01~2008-05-01 |
01580-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01580-1020A-000 BoltFH; 2005-11-01~2008-05-01 |
01580-1020A-000 |
US $19.50 |
||
|
12
|
12
01500-06203-000
Bolt
FH; 2005-11-01~2008-05-01 |
01500-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0620A-000 BoltFH; 2005-11-01~2008-05-01 |
01500-0620A-000 |
from US $0.76 |
||
|
13
|
13
08310-00063-000
Nut
FH; 2005-11-01~2008-05-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
13
|
13
08310-0006B-000 NUTNut gear shift link rod FH; 2005-11-01~2008-05-01 |
08310-0006B-000 |
from US $0.76 |
||
|
13
|
13
08310-0006A-000 NUTFH; 2005-11-01~2008-05-01 |
08310-0006A-000 |
from US $0.76 |
||
