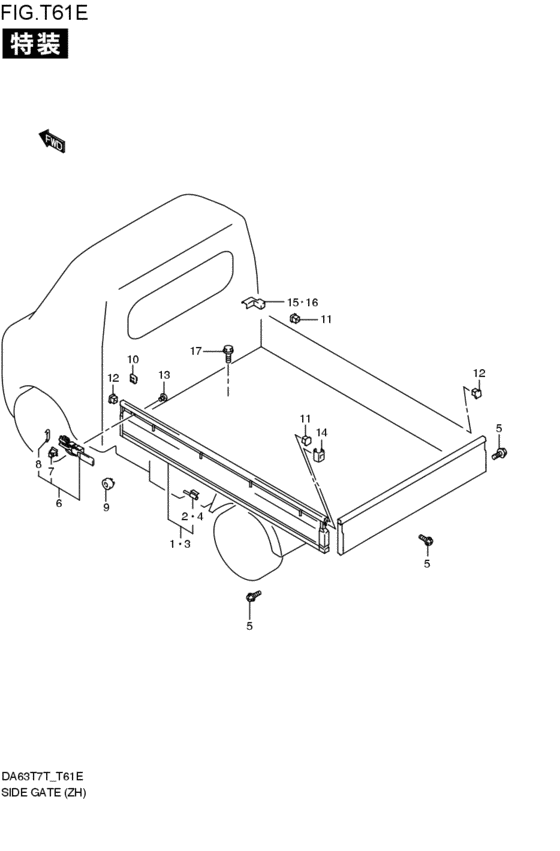

side gate (カソウ) (スイチョクシキゲートリフター; ZH; 2005-11-01~2008-05-01) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- ZH
- rear differential lock
- RDFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67100-67H12-000
パネルアッシ,サイドゲート,ライト(ボウセイシヨウ)
ZH; 2005-11-01~2008-05-01 |
67100-67H12-000 |
— | ||
| replacements | |||||
|
1
|
1
67100-82M00-000
PANEL ASSY,SIDE GATE,R
ZH; 2005-11-01~2008-05-01 |
67100-82M00-000 |
— | ||
|
1
|
1
67100-82M01-000
New Genuine Part
ZH; 2005-11-01~2008-05-01 |
67100-82M01-000 |
— | ||
|
2
|
2
67120-67H01-000
HINGE,SIDE GATE,R
ZH; 2005-11-01~2008-05-01 |
67120-67H01-000 |
— | ||
|
3
|
3
67400-67H12-000
Panel assy,side gate,l
ZH; 2005-11-01~2008-05-01 |
67400-67H12-000 |
— | ||
| replacements | |||||
|
3
|
3
67400-82M00-000
PANEL ASSY,SIDE GATE,L
ZH; 2005-11-01~2008-05-01 |
67400-82M00-000 |
— | ||
|
3
|
3
67400-82M01-000
New Genuine Part
ZH; 2005-11-01~2008-05-01 |
67400-82M01-000 |
— | ||
|
4
|
4
67420-67H01-000 HINGE,SIDE GATE,LZH; 2005-11-01~2008-05-01 |
67420-67H01-000 |
US $9.27 |
||
|
5
|
5
09122-86007-000 SCREW(6X16)ZH; 2005-11-01~2008-05-01 |
09122-86007-000 |
US $11.80 |
||
|
6
|
6
72840-78A32-000
ハンドル,サイドゲートロック
ZH; 2005-11-01~2008-05-01 |
72840-78A32-000 |
— | ||
| replacements | |||||
|
6
|
6
72840-78A38-000
HANDLE,SIDE GATE LOCK
ZH; 2005-11-01~2008-05-01 |
72840-78A38-000 |
— | ||
|
6
|
6
72840-78A39-000 Handle,side Gate LockZH; 2005-11-01~2008-05-01 |
72840-78A39-000 |
US $28.88 |
||
|
7
|
7
72847-78A00-000 STOPPER,GATE LOCK HDL OPENZH; 2005-11-01~2008-05-01 |
72847-78A00-000 |
US $1.60 |
||
|
8
|
8
72893-78A40-000
Protector,gate lock handle
ZH; 2005-11-01~2008-05-01 |
72893-78A40-000 |
— | ||
| replacements | |||||
|
8
|
8
72893-78A42-000
PROTECTOR,GATE LOCK HDL
ZH; 2005-11-01~2008-05-01 |
72893-78A42-000 |
— | ||
|
8
|
8
72893-78A43-000 Protector,gate Lock HdlZH; 2005-11-01~2008-05-01 |
72893-78A43-000 |
US $2.13 |
||
|
9
|
9
73941-67H00-000 STOPPER,GATE OPENZH; 2005-11-01~2008-05-01 |
73941-67H00-000 |
US $6.08 |
||
|
10
|
10
72851-67H01-000 CUSHION,SIDE GATE FRZH; 2005-11-01~2008-05-01 |
72851-67H01-000 |
US $4.31 |
||
|
11
|
11
72861-67H00-000 CAP,GATE PANELZH; 2005-11-01~2008-05-01 |
72861-67H00-000 |
US $2.88 |
||
|
12
|
12
72862-67H00-000 CAP,GATE PANELZH; 2005-11-01~2008-05-01 |
72862-67H00-000 |
US $2.88 |
||
|
13
|
13
72849-78A01-000 SCREW,GATE LOCK HANDLEZH; 2005-11-01~2008-05-01 |
72849-78A01-000 |
US $1.60 |
||
|
14
|
14
72867-60C00-000 PROTECTOR,SIDE GATE RRZH; 2005-11-01~2008-05-01 |
72867-60C00-000 |
US $2.08 |
||
|
15
|
15
72897-67H00-000 COVER,DECK FR PILLAR UPPER,RZH; 2005-11-01~2008-05-01 |
72897-67H00-000 |
US $5.63 |
||
|
16
|
16
72898-67H00-000 COVER,DECK FR PILLAR UPPER,LZH; 2005-11-01~2008-05-01 |
72898-67H00-000 |
US $5.63 |
||
|
17
|
17
01551-0816C-000 BoltZH; 2005-11-01~2008-05-01 |
01551-0816C-000 |
from US $0.96 |
||
