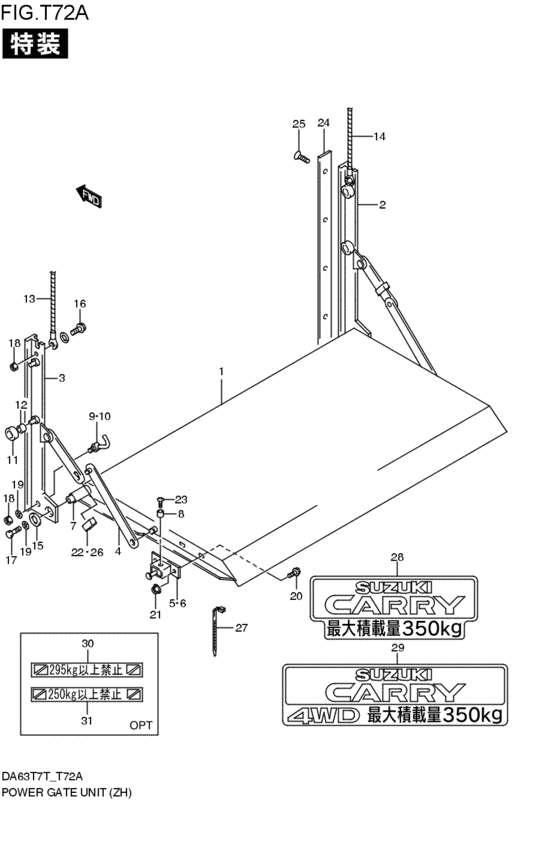

power gate unit (スイチョクシキゲートリフター; ZH; 2005-11-01~2008-05-01) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- grade
- ZH
- rear differential lock
- RDFLK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
98710-57H10-000
ゲート,テールバーチカルリフト (L:700)
ZH; 2005-11-01~2008-05-01 |
98710-57H10-000 |
— | ||
|
1
|
1
98811-57HJ0-000
ゲート,テールバーチカルリフト (L:700)
オプション; ZH; 2005-11-01~2008-05-01 |
98811-57HJ0-000 |
— | ||
|
1
|
1
98812-57HJ0-000
ゲート,テールバーチカルリフト (L:700)
オプション; ZH; 2005-11-01~2008-05-01 |
98812-57HJ0-000 |
— | ||
|
2
|
2
98711-57D00-000
ポール,リヤゲートサイド,ライト
ZH; 2005-11-01~2008-05-01 |
98711-57D00-000 |
— | ||
|
3
|
3
98712-57D00-000
ポール,リヤゲートサイド,レフト
ZH; 2005-11-01~2008-05-01 |
98712-57D00-000 |
— | ||
|
4
|
4
98713-57D00-000
プレート,リヤゲートハンガ
ZH; 2005-11-01~2008-05-01 |
98713-57D00-000 |
— | ||
|
5
|
5
98714-57D00-000
ロック,リヤゲートバー,ライト
ZH; 2005-11-01~2008-05-01 |
98714-57D00-000 |
— | ||
|
6
|
6
98715-57D00-000
ロック,リヤゲートバー,レフト
ZH; 2005-11-01~2008-05-01 |
98715-57D00-000 |
— | ||
|
7
|
7
98716-57D00-000
シャフト,リヤゲート
ZH; 2005-11-01~2008-05-01 |
98716-57D00-000 |
— | ||
|
8
|
8
98737-73D30-000
ラバー,テールゲート
>98521-56H10; ZH; 2005-11-01~2008-05-01 |
98737-73D30-000 |
— | ||
| replacement | |||||
|
8
|
8
98521-56H10-000
ラバー,クッション
>98521-56H10; ZH; 2005-11-01~2008-05-01 |
98521-56H10-000 |
— | ||
|
9
|
9
98751-57D00-000
ガイド,ポール,ライト
ZH; 2005-11-01~2008-05-01 |
98751-57D00-000 |
— | ||
|
10
|
10
98752-57D00-000
ガイド,ポール,レフト
ZH; 2005-11-01~2008-05-01 |
98752-57D00-000 |
— | ||
|
11
|
11
98719-57H10-000
ローラ,リヤゲート
ZH; 2005-11-01~2008-05-01 |
98719-57H10-000 |
— | ||
| replacement | |||||
|
11
|
11
98750-57840-000
New Genuine Part
ZH; 2005-11-01~2008-05-01 |
98750-57840-000 |
— | ||
|
12
|
12
98758-57D00-000
ブッシュ,ポール
ZH; 2005-11-01~2008-05-01 |
98758-57D00-000 |
— | ||
| replacement | |||||
|
12
|
12
98758-57D0V-000
ブッシュ,PULY
ZH; 2005-11-01~2008-05-01 |
98758-57D0V-000 |
— | ||
|
13
|
13
98717-57H10-000
ワイヤ,リヤゲート,NO.1
ZH; 2005-11-01~2008-05-01 |
98717-57H10-000 |
— | ||
|
14
|
14
98718-57H10-000
ワイヤ,リヤゲート,NO.2
ZH; 2005-11-01~2008-05-01 |
98718-57H10-000 |
— | ||
|
15
|
15
98793-57H10-000
ワッシャ,ゲートシャフト
ZH; 2005-11-01~2008-05-01 |
98793-57H10-000 |
— | ||
|
16
|
16
01580-10253-000
ボルト
ZH; 2005-11-01~2008-05-01 |
01580-10253-000 |
— | ||
| replacement | |||||
|
16
|
16
01580-1025A-000 BoltZH; 2005-11-01~2008-05-01 |
01580-1025A-000 |
US $19.50 |
||
|
17
|
17
01500-10203-000
Plug, oil drain
ZH; 2005-11-01~2008-05-01 |
01500-10203-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-1020B-000 BOLTBolt, axle bearing housing ZH; 2005-11-01~2008-05-01 |
01500-1020B-000 |
from US $0.76 |
||
|
18
|
18
08310-00103-000
Nut
ZH; 2005-11-01~2008-05-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0010B-000 NUTZH; 2005-11-01~2008-05-01 |
08310-0010B-000 |
from US $0.80 |
||
|
18
|
18
08310-0010A-000 NUTZH; 2005-11-01~2008-05-01 |
08310-0010A-000 |
from US $0.80 |
||
|
19
|
19
08321-01103-000
Washer
ZH; 2005-11-01~2008-05-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0110B-000 WASHER,LOCKWasher, knuckle end ZH; 2005-11-01~2008-05-01 |
08321-0110B-000 |
from US $0.80 |
||
|
19
|
19
08321-0110A-000 WASHER,LOCKZH; 2005-11-01~2008-05-01 |
08321-0110A-000 |
from US $0.80 |
||
|
20
|
20
01550-08163-000
Bolt, holder
ZH; 2005-11-01~2008-05-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0816B-000 BOLTZH; 2005-11-01~2008-05-01 |
01550-0816B-000 |
from US $0.91 |
||
|
20
|
20
01550-0816A-000 BOLTBolt, rear ZH; 2005-11-01~2008-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
21
|
21
08316-1008A-000 NUTNut, idle gear shaft ZH; 2005-11-01~2008-05-01 |
08316-1008A-000 |
from US $0.76 |
||
|
22
|
22
98792-57H10-000
チューブ,リンク
ZH; 2005-11-01~2008-05-01 |
98792-57H10-000 |
— | ||
|
23
|
23
02142-05163-000
Bolt
ZH; 2005-11-01~2008-05-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0516B-000 SCREWZH; 2005-11-01~2008-05-01 |
02142-0516B-000 |
from US $0.80 |
||
|
23
|
23
02142-0516A-000 SCREWScrew ZH; 2005-11-01~2008-05-01 |
02142-0516A-000 |
from US $0.76 |
||
|
24
|
24
98785-57H10-000
スライド,ベアリング
ZH; 2005-11-01~2008-05-01 |
98785-57H10-000 |
— | ||
|
25
|
25
02122-05083-000
SCREW
ZH; 2005-11-01~2008-05-01 |
02122-05083-000 |
— | ||
| replacement | |||||
|
25
|
25
02122-0508B-000 New Genuine PartZH; 2005-11-01~2008-05-01 |
02122-0508B-000 |
US $14.70 |
||
|
26
|
26
98783-57H10-000
チューブ,リンク
>98792-57H10; ZH; 2005-11-01~2008-05-01 |
98783-57H10-000 |
— | ||
| replacement | |||||
|
26
|
26
98792-57H10-000
チューブ,リンク
>98792-57H10; ZH; 2005-11-01~2008-05-01 |
98792-57H10-000 |
— | ||
|
27
|
27
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap ZH; 2005-11-01~2008-05-01 |
09407-14403-000 |
from US $2.08 |
||
|
29
|
29
77861-67H10-21G DECAL,RRZH:4WD; 2005-11-01~2008-05-01 |
77861-67H10-21G |
US $28.80 |
||
|
30
|
30
97894-57HJ0-000
ラベル,ロードインジケータ
オプション; ZH; 2005-11-01~2008-05-01 |
97894-57HJ0-000 |
— | ||
|
31
|
31
97895-57HJ0-000
ラベル,ロードインジケータ
オプション; ZH; 2005-11-01~2008-05-01 |
97895-57HJ0-000 |
— | ||
