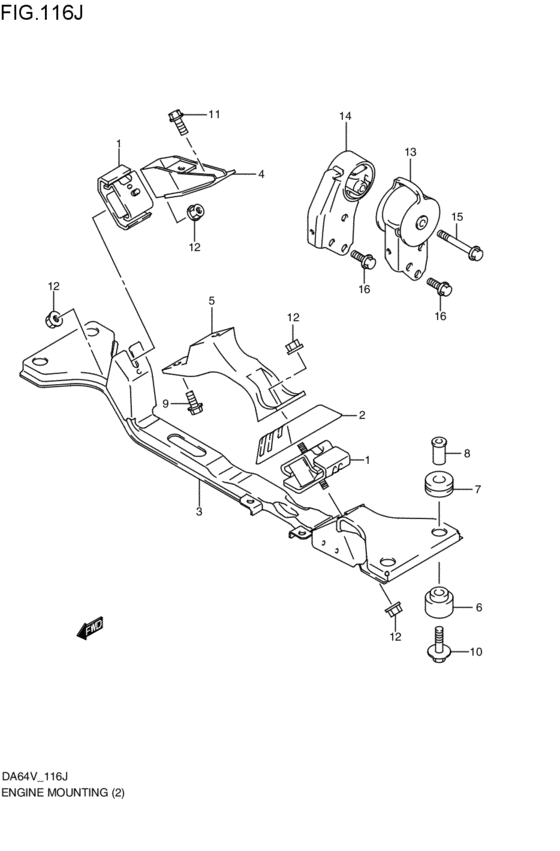

engine mounting (4V:4WD; 2005-08-01~2005-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- VB
- number of the gears
- 3AT
- body
- DA64V
- abs
- ABS-N
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-68H00-000 MOUNTING,ENG FR4V:4WD; 2005-08-01~2005-12-01 |
11610-68H00-000 |
US $108.80 |
||
|
2
|
2
11616-68H00-000 COVER,FR MTG,L4V:4WD; 2005-08-01~2005-12-01 |
11616-68H00-000 |
US $8.61 |
||
|
3
|
3
11630-68H00-000
メンバ,エンジンフロントマウンチング
4V:4WD; 2005-08-01~2005-12-01 |
11630-68H00-000 |
— | ||
| replacement | |||||
|
3
|
3
11630-68H02-000 MEMBER,ENG MTG4V:4WD; 2005-08-01~2005-12-01 |
11630-68H02-000 |
US $179.22 |
||
|
4
|
4
11640-68H00-000
Bracket comp,eng fr mtg,r
4V:4WD; 2005-08-01~2005-12-01 |
11640-68H00-000 |
— | ||
| replacement | |||||
|
4
|
4
11640-68H10-000 BRACKET,ENG FR MTG,R4V:4WD; 2005-08-01~2005-12-01 |
11640-68H10-000 |
US $48.21 |
||
|
5
|
5
11650-67H01-000 BRACKET,ENG FR MTG,L4V:4WD; 2005-08-01~2005-12-01 |
11650-67H01-000 |
US $83.54 |
||
|
6
|
6
11684-68H00-000 CUSHION,MTG MEMBER LOWER4V:4WD; 2005-08-01~2005-12-01 |
11684-68H00-000 |
US $3.75 |
||
|
7
|
7
11686-68H00-000 CUSHION,MTG MEMBER UPPER4V:4WD; 2005-08-01~2005-12-01 |
11686-68H00-000 |
US $2.80 |
||
|
8
|
8
11687-67H00-000 COLLAR,MTG MEMBER4V:4WD; 2005-08-01~2005-12-01 |
11687-67H00-000 |
US $3.36 |
||
|
9
|
9
09103-08375-000 BOLT(8X25)4V:4WD; 2005-08-01~2005-12-01 |
09103-08375-000 |
US $26.10 |
||
|
10
|
10
09116-10132-000 BOLT(10X76)4V:4WD; 2005-08-01~2005-12-01 |
09116-10132-000 |
US $28 |
||
|
11
|
11
01550-10253-000
Bolt
4V:4WD; 2005-08-01~2005-12-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-1025B-000 BoltBolt, rr swgarm bracket, l 4V:4WD; 2005-08-01~2005-12-01 |
01550-1025B-000 |
from US $5.59 |
||
|
11
|
11
01550-1025A-000 BOLTBolt, drive gear 4V:4WD; 2005-08-01~2005-12-01 |
01550-1025A-000 |
from US $1.06 |
||
|
12
|
12
08316-10103-000
Nut
4V:4WD; 2005-08-01~2005-12-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUT4V:4WD; 2005-08-01~2005-12-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
11810-68H30-000 Mounting, Rear4V:4WD:AT; 2005-08-01~2005-12-01 |
11810-68H30-000 |
US $51.68 |
||
|
15
|
15
09103-10308-000 BOLT(10X80)4V:4WD; 2005-08-01~2005-12-01 |
09103-10308-000 |
US $30.20 |
||
|
16
|
16
01550-10253-000
Bolt
4V:4WD; 2005-08-01~2005-12-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-1025B-000 BoltBolt, rr swgarm bracket, l 4V:4WD; 2005-08-01~2005-12-01 |
01550-1025B-000 |
from US $5.59 |
||
|
16
|
16
01550-1025A-000 BOLTBolt, drive gear 4V:4WD; 2005-08-01~2005-12-01 |
01550-1025A-000 |
from US $1.06 |
||
