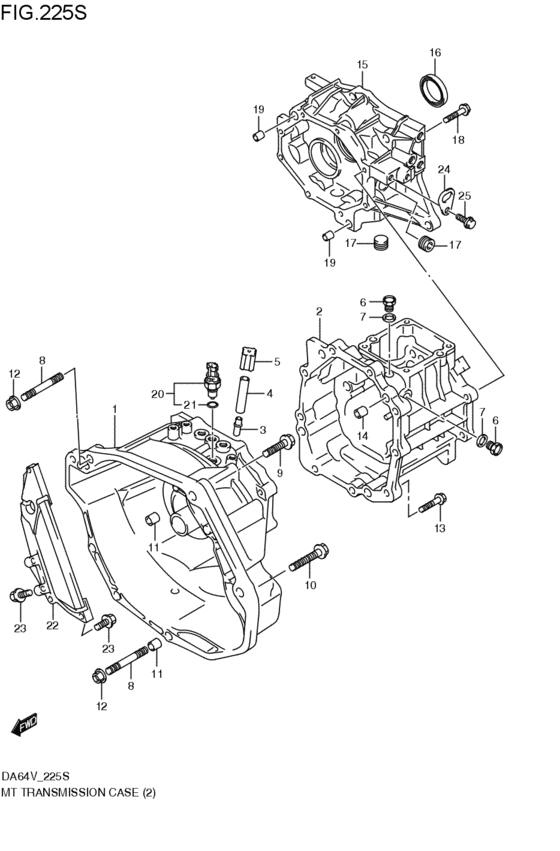

mt - transmission case (MT:4WD; 2005-08-01~2005-12-01) Diagram Suzuki CARRY/EVERY
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- VB
- number of the gears
- 5MT
- body
- DA64V
- abs
- ABS
- wheel
- STEEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-68H00-000
ケース,トランスミッション,フロント
MT:4WD; 2005-08-01~2005-12-01 |
24711-68H00-000 |
— | ||
|
2
|
2
24721-76J00-000
CASE,T/M,RR
MT:4WD; 2005-08-01~2005-12-01 |
24721-76J00-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-76J01-000 Case,transmission RearMT:4WD; 2005-08-01~2005-12-01 |
24721-76J01-000 |
US $207.92 |
||
|
3
|
3
09364-08004-000 UNIONMT:4WD; 2005-08-01~2005-12-01 |
09364-08004-000 |
US $14.40 |
||
|
4
|
4
09352-70113-600
HOSE(7X11X600)
L:600>40; MT:4WD; 2005-08-01~2005-12-01 |
09352-70113-600 |
— | ||
| replacement | |||||
|
4
|
4
09352-70119-600 Hose(7X11X600)L:600>40; MT:4WD; 2005-08-01~2005-12-01 |
09352-70119-600 |
from US $4.64 |
||
|
5
|
5
27991-65D01-000 PLUG,BREATHERMT:4WD; 2005-08-01~2005-12-01 |
27991-65D01-000 |
US $1.92 |
||
|
6
|
6
09247-14029-000 PLUGMT:4WD; 2005-08-01~2005-12-01 |
09247-14029-000 |
from US $1.76 |
||
|
7
|
7
09168-14011-000 GASKET(14X20X1.5)MT:4WD; 2005-08-01~2005-12-01 |
09168-14011-000 |
from US $2.40 |
||
|
8
|
8
01421-1045A-000 BOLT,STUDMT:4WD; 2005-08-01~2005-12-01 |
01421-1045A-000 |
US $16.20 |
||
|
9
|
9
01550-1050A-000 BOLTBolt, exhaust tube MT:4WD; 2005-08-01~2005-12-01 |
01550-1050A-000 |
from US $1.28 |
||
|
10
|
10
01550-1075A-000 BoltMT:4WD; 2005-08-01~2005-12-01 |
01550-1075A-000 |
US $1.60 |
||
|
11
|
11
04211-13149-000 PINMT:4WD; 2005-08-01~2005-12-01 |
04211-13149-000 |
from US $1.28 |
||
|
12
|
12
08316-1010A-000 NUTNut, kick starter MT:4WD; 2005-08-01~2005-12-01 |
08316-1010A-000 |
from US $0.76 |
||
|
13
|
13
01550-0840A-000 BOLTMT:4WD; 2005-08-01~2005-12-01 |
01550-0840A-000 |
from US $1.12 |
||
|
14
|
14
04211-13149-000 PINMT:4WD; 2005-08-01~2005-12-01 |
04211-13149-000 |
from US $1.28 |
||
|
15
|
15
24771-68H40-000 CASE,ADAPTERMT:4WD; 2005-08-01~2005-12-01 |
24771-68H40-000 |
US $310.40 |
||
|
16
|
16
09282-35002-000 SEAL,OIL(35X55X9)MT:4WD; 2005-08-01~2005-12-01 |
09282-35002-000 |
US $10.88 |
||
|
17
|
17
09246-16010-000
PLUG
MT:4WD; 2005-08-01~2005-12-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
17
|
17
09246-16021-000 Plug,t/m Oil DrainMT:4WD; 2005-08-01~2005-12-01 |
09246-16021-000 |
US $4.86 |
||
|
18
|
18
01550-0840A-000 BOLTMT:4WD; 2005-08-01~2005-12-01 |
01550-0840A-000 |
from US $1.12 |
||
|
19
|
19
04211-13149-000 PINMT:4WD; 2005-08-01~2005-12-01 |
04211-13149-000 |
from US $1.28 |
||
|
20
|
20
37610-76G00-000 SWITCH ASSY,BACK UP LAMPMT:4WD; 2005-08-01~2005-12-01 |
37610-76G00-000 |
US $17.70 |
||
|
21
|
21
09280-11002-000 O RING(D:1.9,ID:11.4)MT:4WD; 2005-08-01~2005-12-01 |
09280-11002-000 |
US $1.52 |
||
|
22
|
22
24790-67H01-000 STIFFENER,ENG&T/MMT:4WD; 2005-08-01~2005-12-01 |
24790-67H01-000 |
US $55.94 |
||
|
23
|
23
01550-0830A-000 BOLTBolt, mount oil seal cover MT:4WD; 2005-08-01~2005-12-01 |
01550-0830A-000 |
from US $1.12 |
||
|
24
|
24
11851-72B21-000 HOOK,ENGINEMT:4WD; 2005-08-01~2005-12-01 |
11851-72B21-000 |
US $2.80 |
||
|
25
|
25
01550-0816A-000 BOLTBolt, rear MT:4WD; 2005-08-01~2005-12-01 |
01550-0816A-000 |
from US $0.91 |
||
